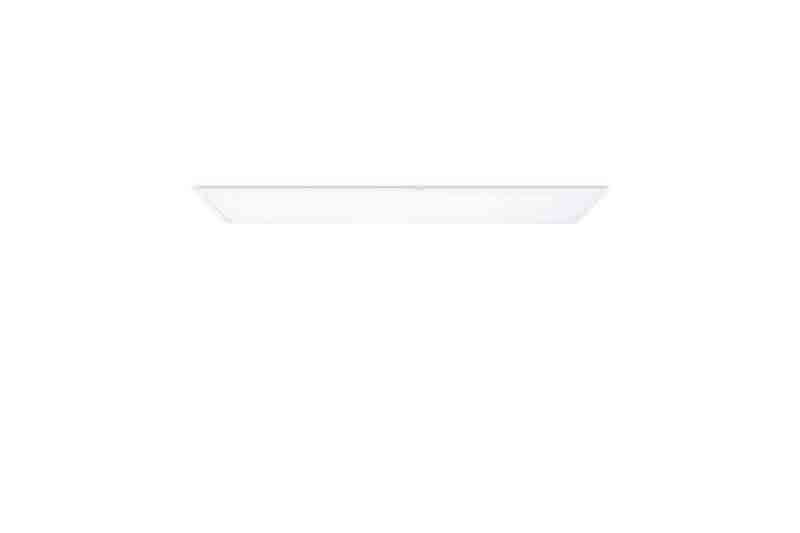

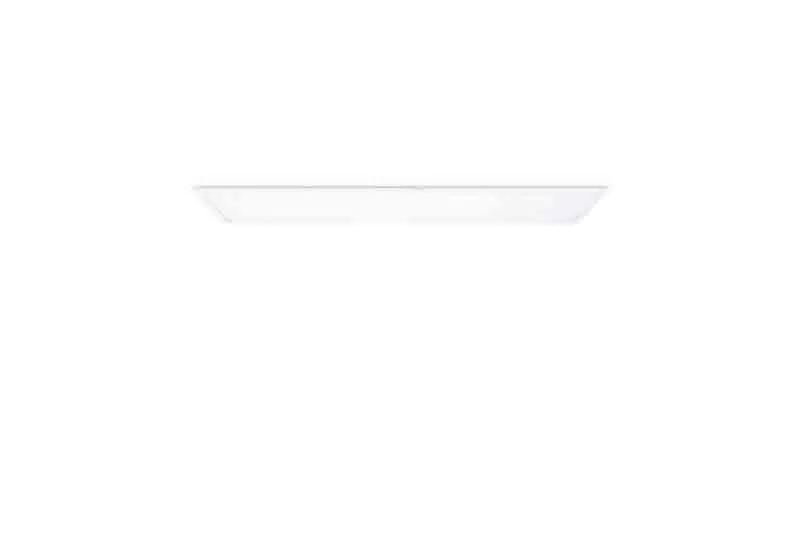

Skytile 1200x300 30W IP44 5700K 3000lm TP(a) UGR <19 DSI
JC080123
- Meets TP(a) requirements, suitable for all applications
- UGR <19 as standard, designed to comply with BS EN 12464-1 lighting of workspace
- Ultra efficient 100LpcW
- DALI/1-10V and DSI Dimming versions available
- IP44 protection against dust and moisture
- Comes with non-dimmable flicker free driver as standard
- Suspension kits and surface mount boxes available
- Suitable for use with JCEM002 and JCEM002ST emergency remote packs
Country of Origin: Please Contact Customer Service
Product Information
Dimensional Data
Overall Dimensions : 295 x 1195 x 10.6 mm
Performance Specifications
Dimming Protocol Compatibility : DSI
Product Details
Additional Information : Not fire rated
Color Finish : White
Product Range : Skytile
Warranty : 5 Year Warranty (inc 2 year on site)
Product Specifications
Actual Lumen Output : 3000
Beam Angle : 90
CRI : 80
Class : II
Correlated Color Temperature : 5700K
Dimmable : DSI
IP Rating : IP44
Lumens Per Circuit Watt : 100 LpcW
Luminaire Circuit Wattage : 30
Method of fix : sits in 15mm and 25mm ceiling grid system
Operating Temperature range °C : -25 to +50
