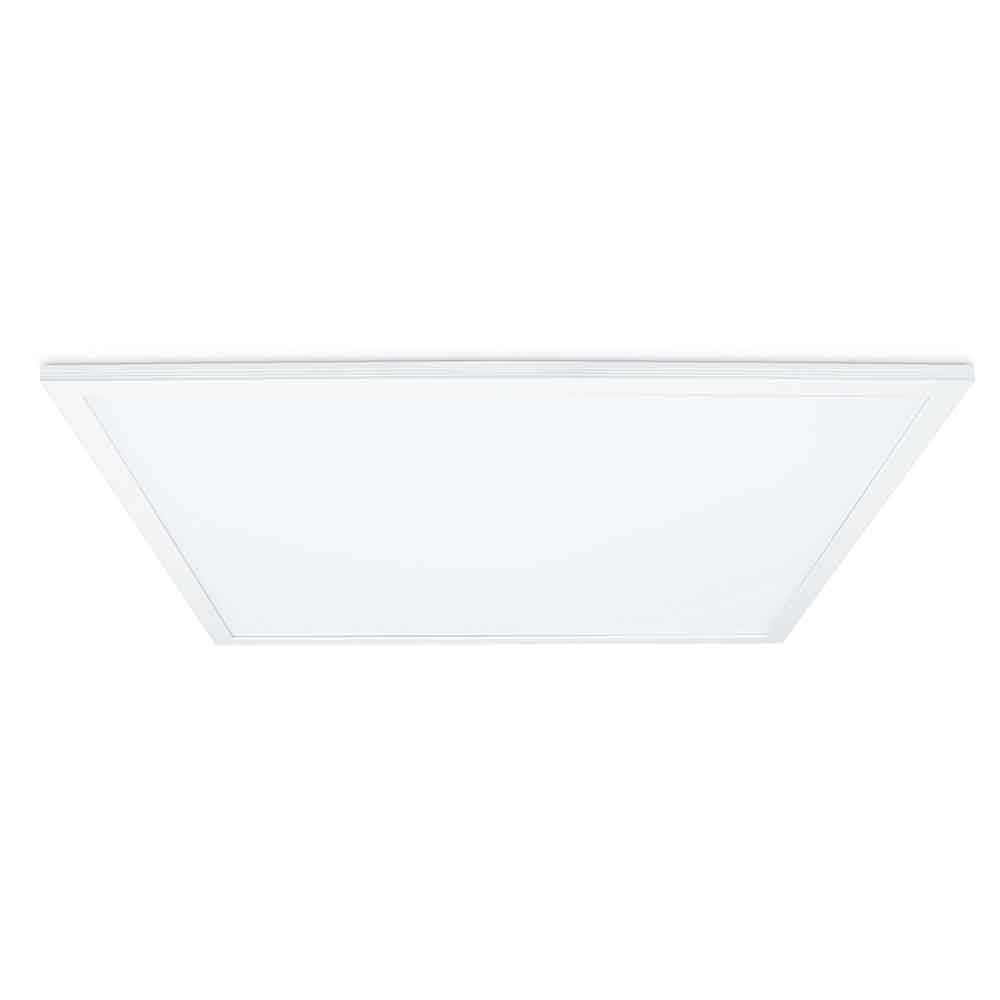

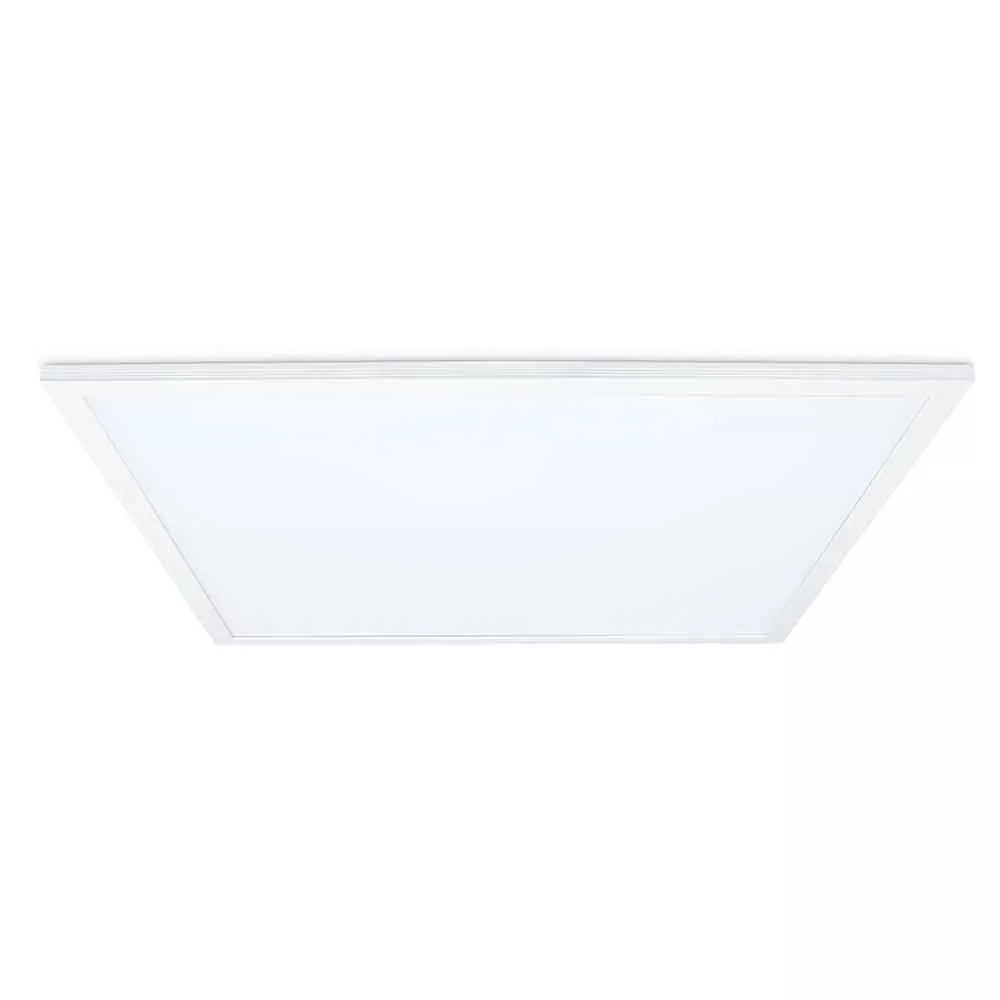

Skytile 600x600 30W IP44 3000K 3000lm TP(a) UGR <19 1-10

JC080101

  • ​Meets TP(a) requirements, suitable for all applications
  • UGR <19 as standard, designed to comply with BS EN 12464-1 lighting of workspace
  • Ultra efficient 100LpcW
  • DALI/1-10V and DSI Dimming versions available
  • IP44 protection against dust and moisture
  • Comes with non-dimmable flicker free driver as standard
  • Suspension kits and surface mount boxes available
  • Suitable for use with JCEM002 and JCEM002ST emergency remote packs
Country of Origin: Please Contact Customer Service

Product Information

  • Dimensional Data

    Overall Dimensions : 595 x 595 x 9.8 mm

  • Performance Specifications

    Dimming Protocol Compatibility : 1-10V

  • Product Details

    Additional Information : Not fire rated

    Color Finish : White

    Product Range : Skytile

    Warranty : 5 Year Warranty (inc 2 year on site)

  • Product Specifications

    Actual Lumen Output : 3000

    Beam Angle : 90

    CRI : 80

    Class : II

    Correlated Color Temperature : 4000K

    Dimmable : 1-10V

    IP Rating : IP44

    Lumens Per Circuit Watt : 100 LpcW

    Luminaire Circuit Wattage : 30

    Method of fix : sits in 15mm and 25mm ceiling grid system

    Operating Temperature range °C : -25 to +50
