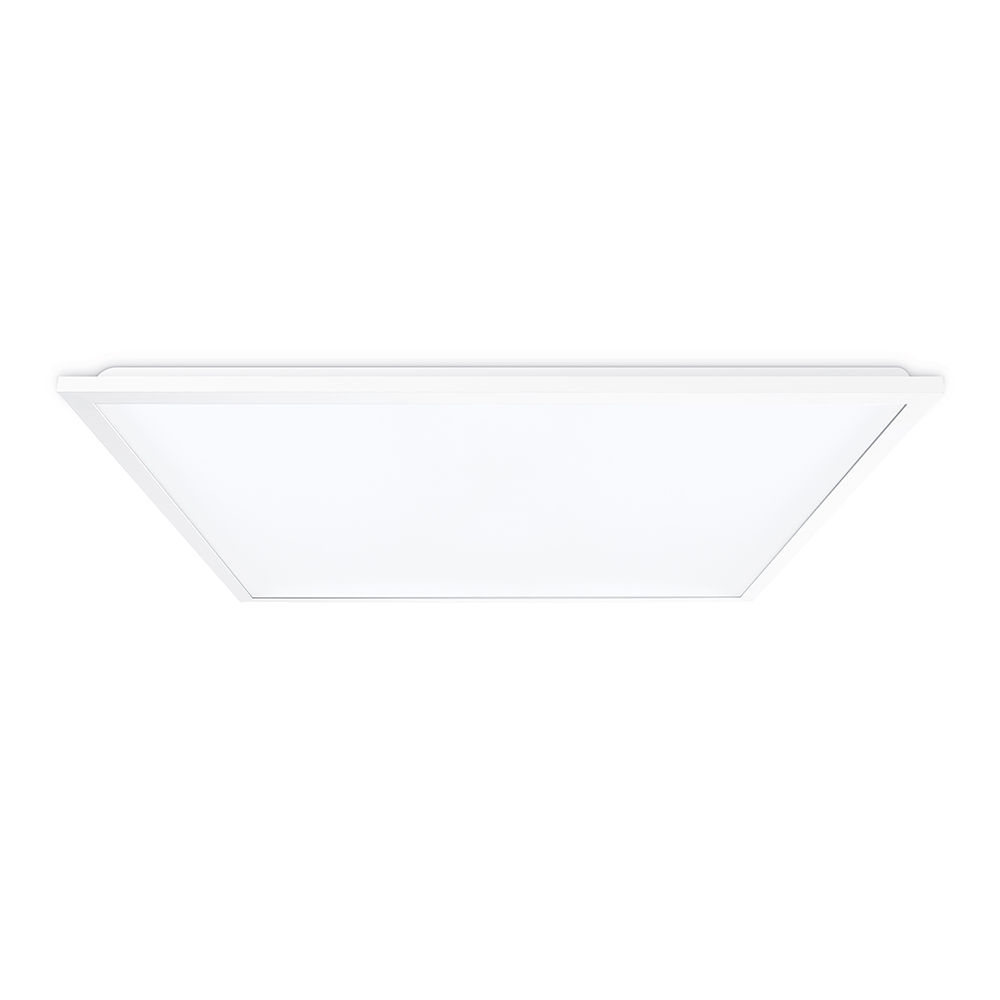

Skytile Base TP(a) UGR 38W IP20 4000K DALI/1-10V White frame
JC080065
- 4150 Lumens
- 109 LpcW
- IP20 rated
- 4000K colour temperature
- DALI/1-10V
- High output, suitable for applications with higher ceilings or areas that require greater light levels
- Meets TP(a) requirements, suitable for all applications
- Designed to comply with BS EN 12464-1 lighting of workspace
- Compatible with standard (JCEM002) & self-test (JCEM002ST) emergency remote packs
- Suspension kit and surface mount box available
Country of Origin: Please Contact Customer Service
Product Information
Dimensional Data
Overall Dimensions : 595 x 595 x 25.2mm
Performance Specifications
Dimming Protocol Compatibility : DALI/1-10V
Product Details
Additional Information : Suitable for use with remote emergency packs JCEM002 or JCEM002ST
Color Finish : White
Product Range : Skytile
Warranty : 5 Year Warranty
Product Specifications
Actual Lumen Output : 4150
Beam Angle : 90
CRI : 82
Class : II
Correlated Color Temperature : 4000
Dimmable : Yes, DALI or 1-10V
IP Rating : IP20
Lumens Per Circuit Watt : 109
Luminaire Circuit Wattage : 38
Operating Temperature range °C : -25 to 50
Product Aperture Size : 600 x 600
