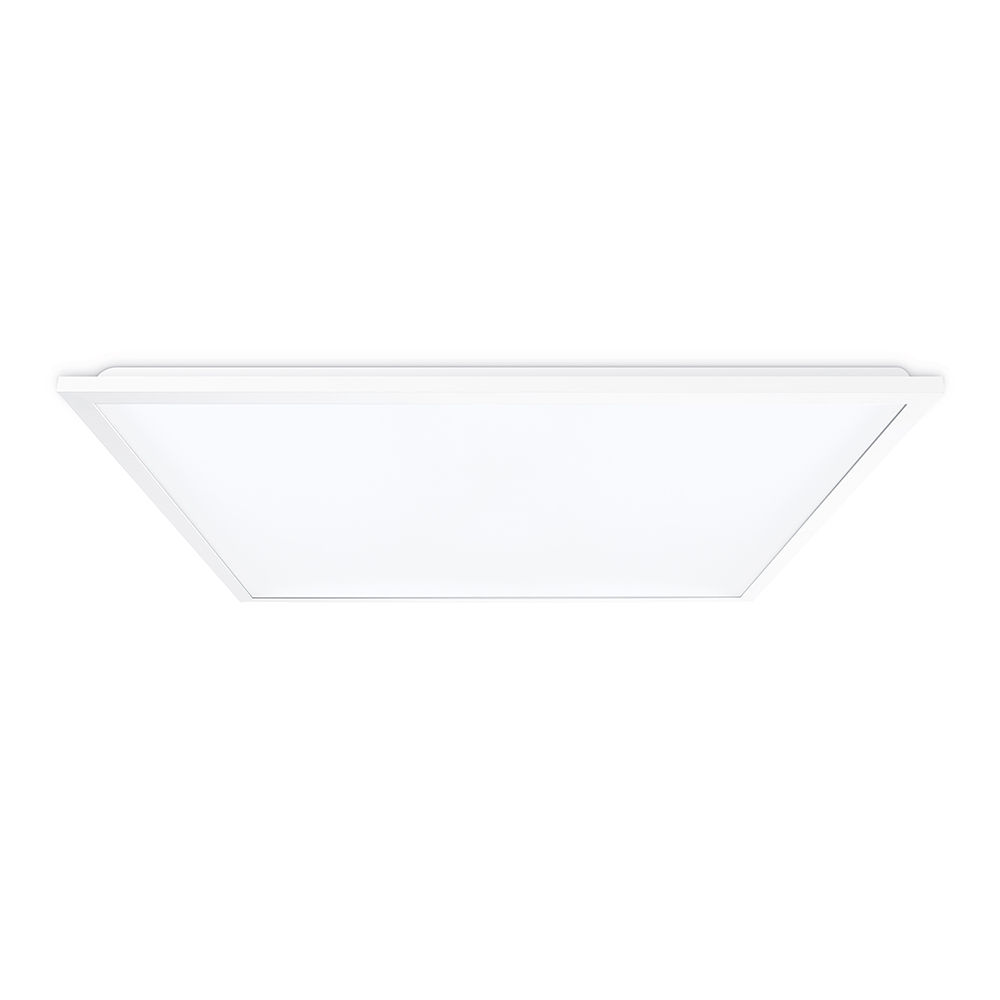

Skytile Base TP(a) UGR 16W IP20 4000K DALI/1-10V White frame

JC080063

  • 1700 Lumens
  • 106 LpcW
  • IP20 rated
  • 4000K colour temperature
  • DALI/1-10V
  • Meets TP(a) requirements, suitable for all applications
  • Designed to comply with BS EN 12464-1 lighting of workspace
  • Compatible with standard (JCEM002) & self-test (JCEM002ST) emergency remote packs
  • Suspension kit and surface mount box available
Country of Origin: Please Contact Customer Service

Product Information

  • Dimensional Data

    Overall Dimensions : 595 x 595 x 25.2mm

  • Performance Specifications

    Dimming Protocol Compatibility : DALI/1-10V

  • Product Details

    Additional Information : Suitable for use with remote emergency packs JCEM002 or JCEM002ST

    Color Finish : White

    Product Range : Skytile

    Warranty : 5 Year Warranty

  • Product Specifications

    Actual Lumen Output : 1700

    Beam Angle : 90

    CRI : 82

    Class : II

    Correlated Color Temperature : 4000

    Dimmable : Yes, DALI or 1-10V

    IP Rating : IP20

    Lumens Per Circuit Watt : 106

    Luminaire Circuit Wattage : 16

    Operating Temperature range °C : -25 to 50

    Product Aperture Size : 600 x 600
