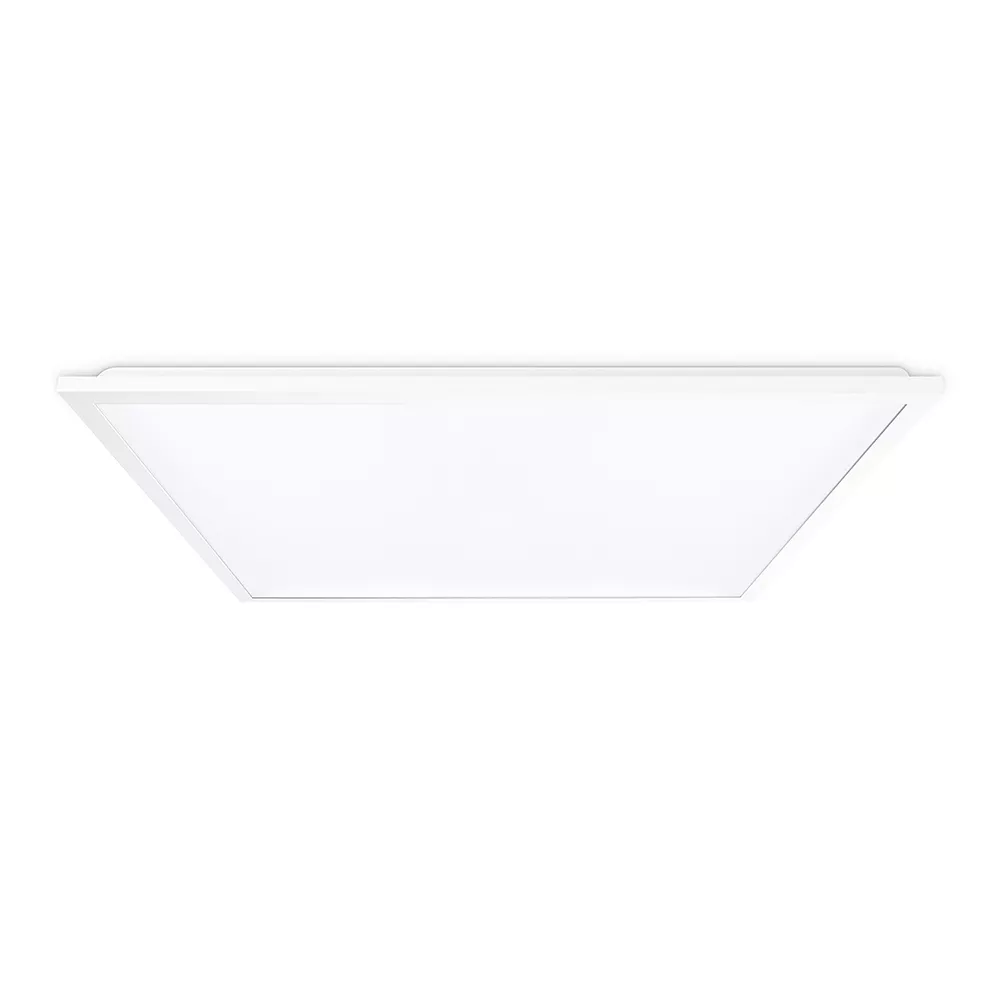

Skytile Base TP(a) UGR 16W IP20 4000K White frame
JC080062
- 1700 Lumens
- 106 LpcW
- IP20 rated
- 4000K colour temperature
- Meets TP(a) requirements, suitable for all applications
- Designed to comply with BS EN 12464-1 lighting of workspace
- Compatible with standard (JCEM002) & self-test (JCEM002ST) emergency remote packs
- Suspension kit and surface mount box available
Country of Origin: Please Contact Customer Service
Product Information
Electrical
Class : II
Luminaire Circuit Wattage : 16
Voltage Rating : 220-240
General Information
IP Rating : IP20
Luminaire Accessories : JC71262 -surface mount tray, JC080045 -suspension kit

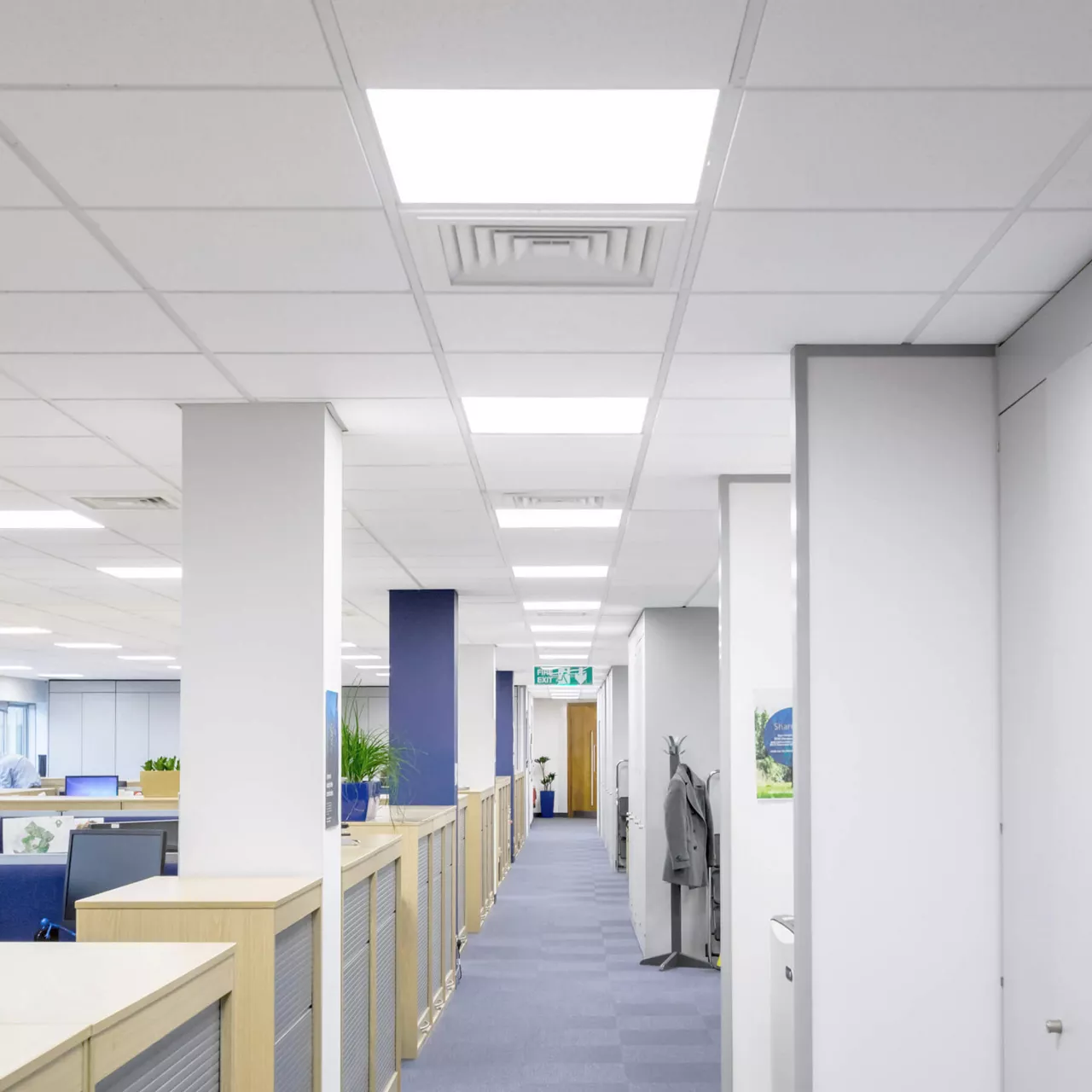

Mounting : for use with T grid suspended ceilings
Overall Dimensions : 595 x 595 x 25.2mm
Product Aperture Size : 600 x 600
Trade Name : Skytile Base
Warranty : 5 Year Warranty
Performance Data
Actual Lumen Output : 1700
Beam Angle ° : 90
CRI: Ra : 82
Correlated Color Temperature : 4000
Lumens Per Circuit Watt : 106
Thermals
Insulation Coverage : Do not cover with insulation
Operating Temperature Range °C : -30 to 50
