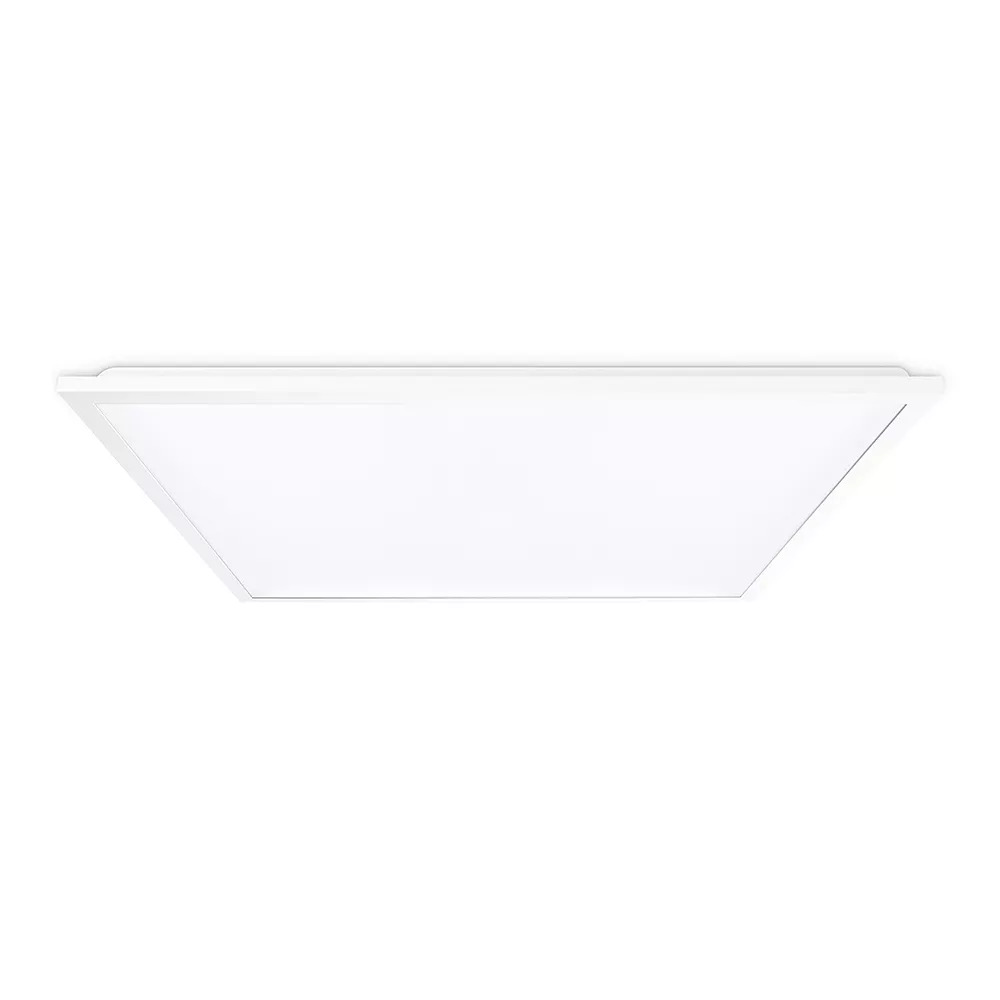

Skytile Base TP(a) 28W IP20 5000K DALI/1-10V White frame
JC080061
- 3300 Lumens
- 118 LpcW
- IP20 rated
- 5000K colour temperature
- DALI/1-10V
- Meets TP(a) requirements, suitable for all applications
- Compatible with standard (JCEM002) & self-test (JCEM002ST) emergency remote packs
- Suspension kit and surface mount box available
Country of Origin: Please Contact Customer Service
Product Information
Electrical
Class : II
Dimmable : Yes, DALI or 1-10V
Luminaire Circuit Wattage : 28
Voltage Rating : 220-240
General Information
IP Rating : IP20
Luminaire Accessories : JC71262 -surface mount tray, JC080045 -suspension kit
Mounting : for use with T grid suspended ceilings
Overall Dimensions : 595 x 595 x 25.2mm
Product Aperture Size : 600 x 600
Trade Name : Skytile Base
Warranty : 5 Year Warranty
Performance Data
Actual Lumen Output : 3300
Beam Angle ° : 115
CRI: Ra : 82
Correlated Color Temperature : 5000
Lumens Per Circuit Watt : 118
Thermals
Insulation Coverage : Do not cover with insulation
Operating Temperature Range °C : -25 to 50
