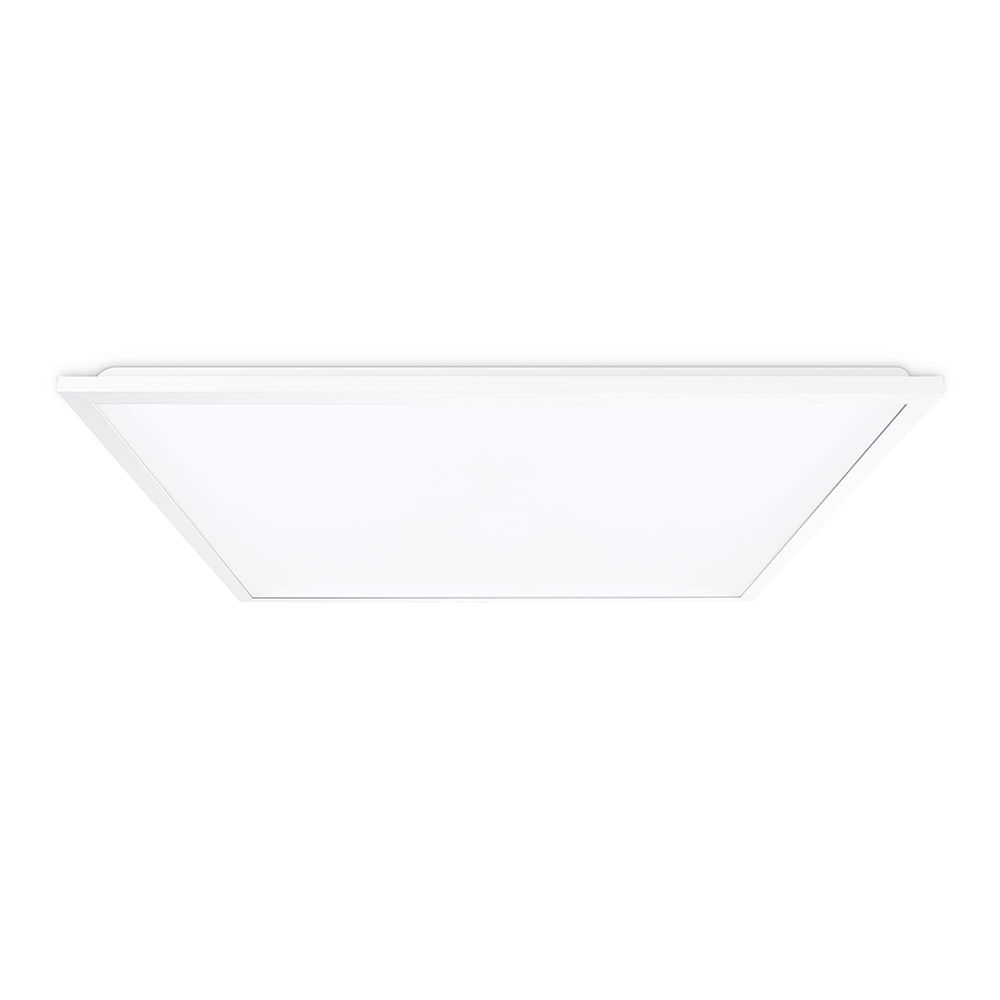

Skytile Base TP(a) 28W IP20 4000K DALI/1-10V White frame
JC080059
- 3300 Lumens
- 118 LpcW
- IP20 rated
- 4000K colour temperature
- DALI/1-10V
- Meets TP(a) requirements, suitable for all applications
- Compatible with standard (JCEM002) & self-test (JCEM002ST) emergency remote packs
- Suspension kit and surface mount box available
Country of Origin: Please Contact Customer Service
Product Information
Dimensional Data
Overall Dimensions : 595 x 595 x 25.2mm
Performance Specifications
Dimming Protocol Compatibility : DALI/1-10V
Product Details
Additional Information : Suitable for use with remote emergency packs JCEM002 or JCEM002ST
Color Finish : White
Product Range : Skytile
Warranty : 5 Year Warranty
Product Specifications
Actual Lumen Output : 3300
Beam Angle : 115
CRI : 82
Class : II
Correlated Color Temperature : 4000
Dimmable : Yes, DALI or 1-10V
IP Rating : IP20
Lumens Per Circuit Watt : 118
Luminaire Circuit Wattage : 28
Operating Temperature range °C : -25 to 50
Product Aperture Size : 600 x 600
