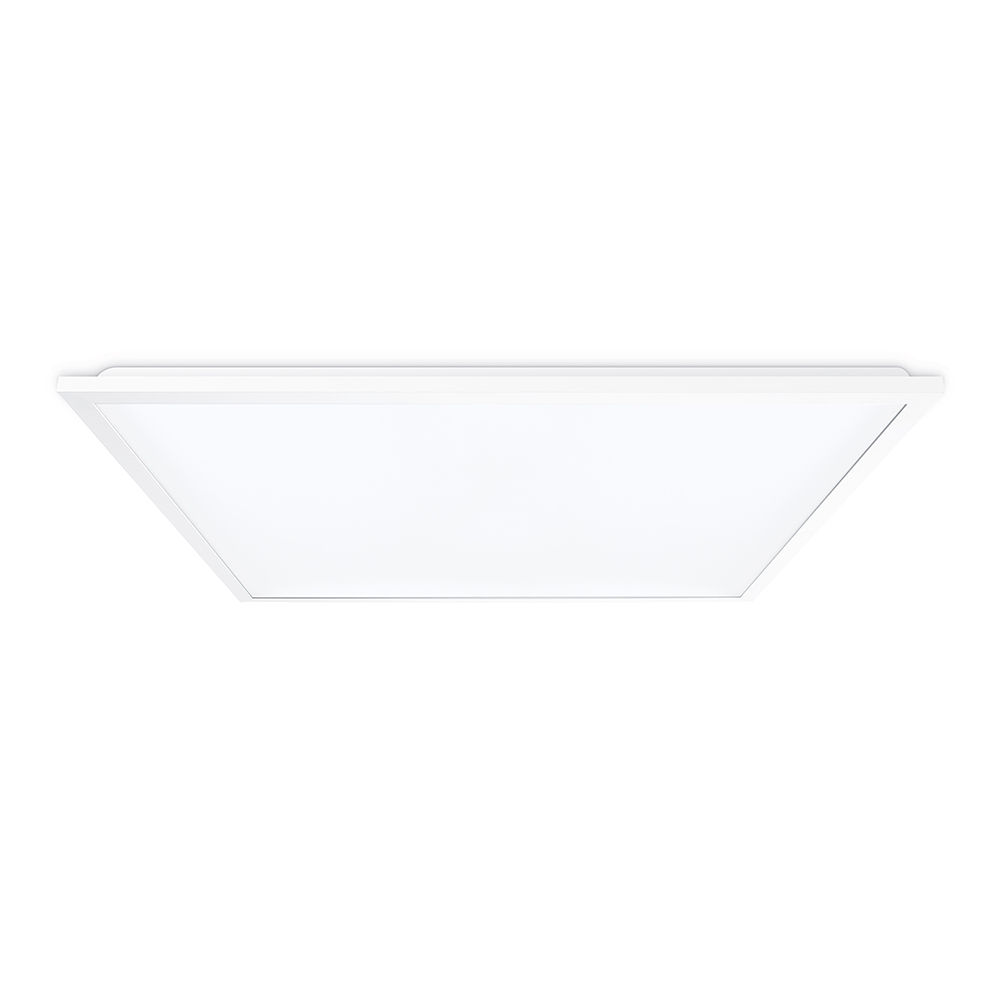

Skytile Base TP(a) LED Panel | 4000K | DALI Dimmable
JC080049
- Meets TP(a) requirements, suitable for all applications
- 100 lumens per circuit Watt
- 4000K colour temperature
- IP20 protection
- Compatible with standard and JCC self-test emergency remote packs
- 4 wire suspension kit and surface mount box available (JC080050)
Country of Origin: Please Contact Customer Service
Product Information
Dimensional Data
Overall Dimensions : 595 x 595 x 32 mm
Performance Specifications
Dimming Protocol Compatibility : DALI/1-10V
Product Details
Additional Information : Do not cover with insulation
Color Finish : White
Product Range : Skytile
Warranty : 5 Year Warranty
Product Specifications
Actual Lumen Output : 3000
Beam Angle : 113
CRI : 83
Class : II
Correlated Color Temperature : 4000K
Dimmable : DALI/1-10V
IP Rating : IP20
Lumens Per Circuit Watt : 100
Luminaire Circuit Wattage : 30
Method of fix : for use with T grid suspended ceilings
Operating Temperature range °C : -25 to +50
Product Aperture Size : 600 x 600mm
