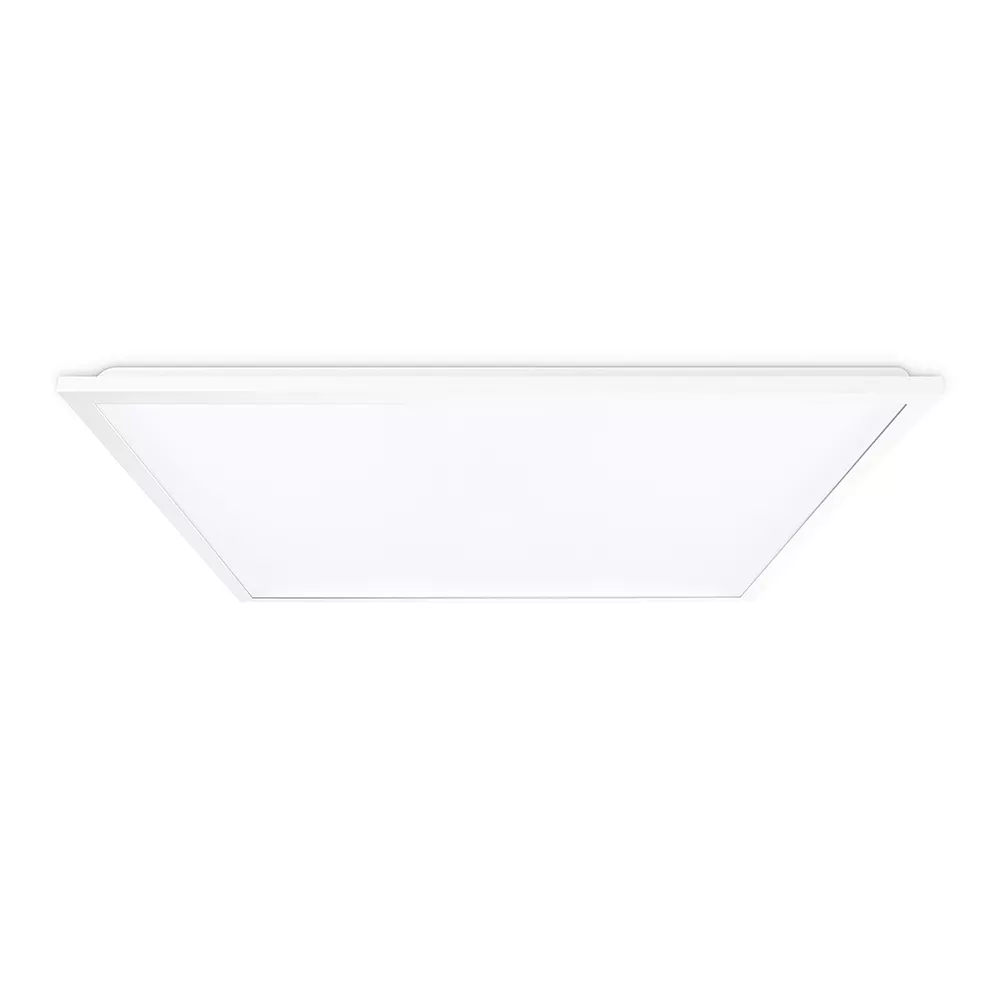

Skytile Base LED Panel | 4000K | DALI Dimmable
JC080047
- Meets TP(a) requirements, suitable for all applications
- 100 lumens per circuit Watt
- 4000K colour temperature
- IP20 protection
- Compatible with standard and JCC self-test emergency remote packs
- 4 wire suspension kit and surface mount box available (JC080050)
Country of Origin: Please Contact Customer Service
Product Information
Updated
IES
Electrical
Class : II
Dimmable : DALI/1-10V
Luminaire Circuit Wattage : 30
Voltage Rating : 220-240
General Information
IP Rating : IP20
Light Source Features : Neutral White
Luminaire Accessories : Surface mount tray(JC71262) Suspension kit(JC080050)
Method of fix : for use with T grid suspended ceilings
Mounting : Recessed
Overall Dimensions : 595 x 595 x 32 mm
Product Aperture Size : 600 x 600mm
Trade Name : Skytile Base
Warranty : 5 Year Warranty
Performance Data
Actual Lumen Output : 3150
Beam Angle ° : 113
CRI: Ra : 83
Correlated Color Temperature : 4000K
Lumens Per Circuit Watt : 105
Thermals
Insulation Coverage : Do not cover
Operating Temperature Range °C : -25 to +50
