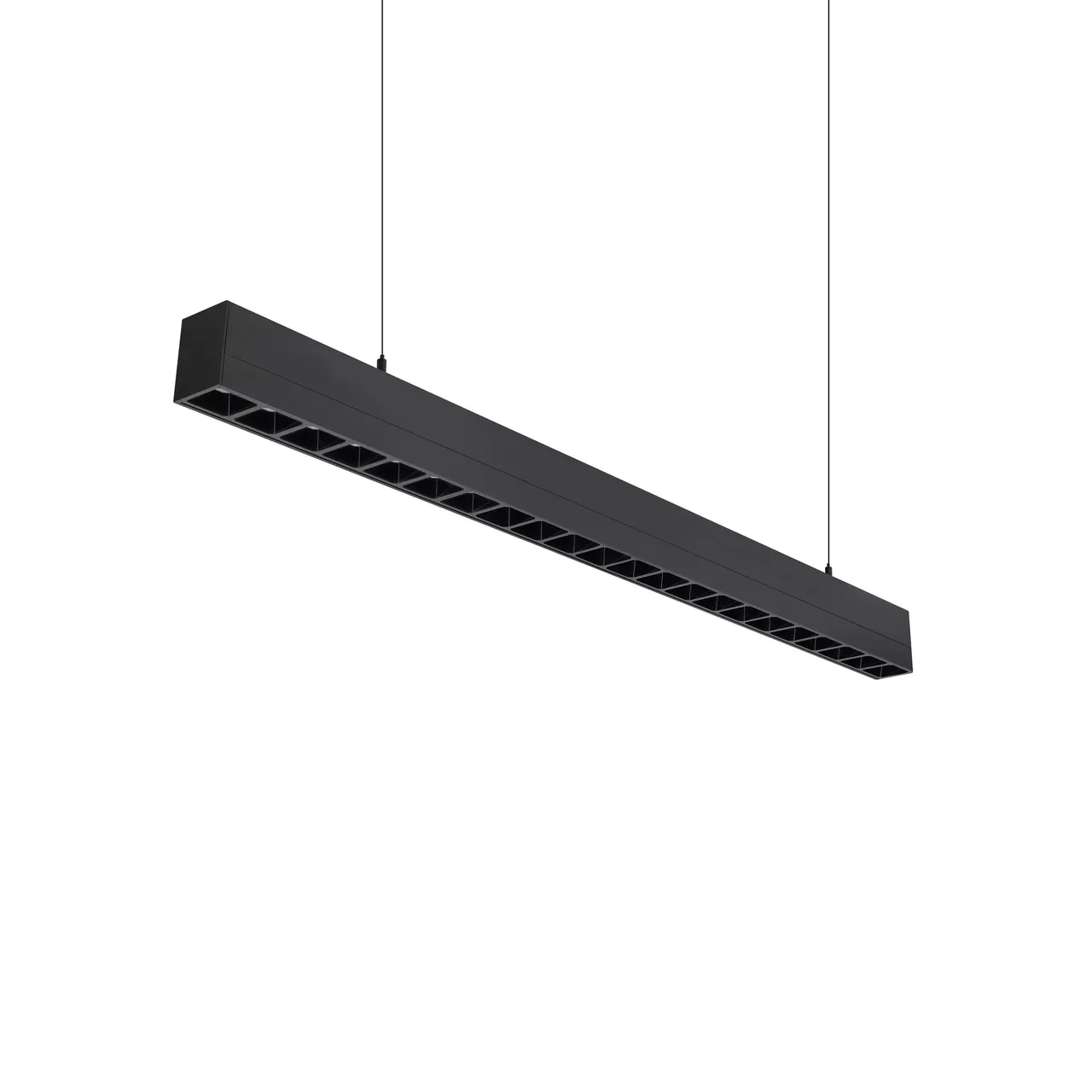

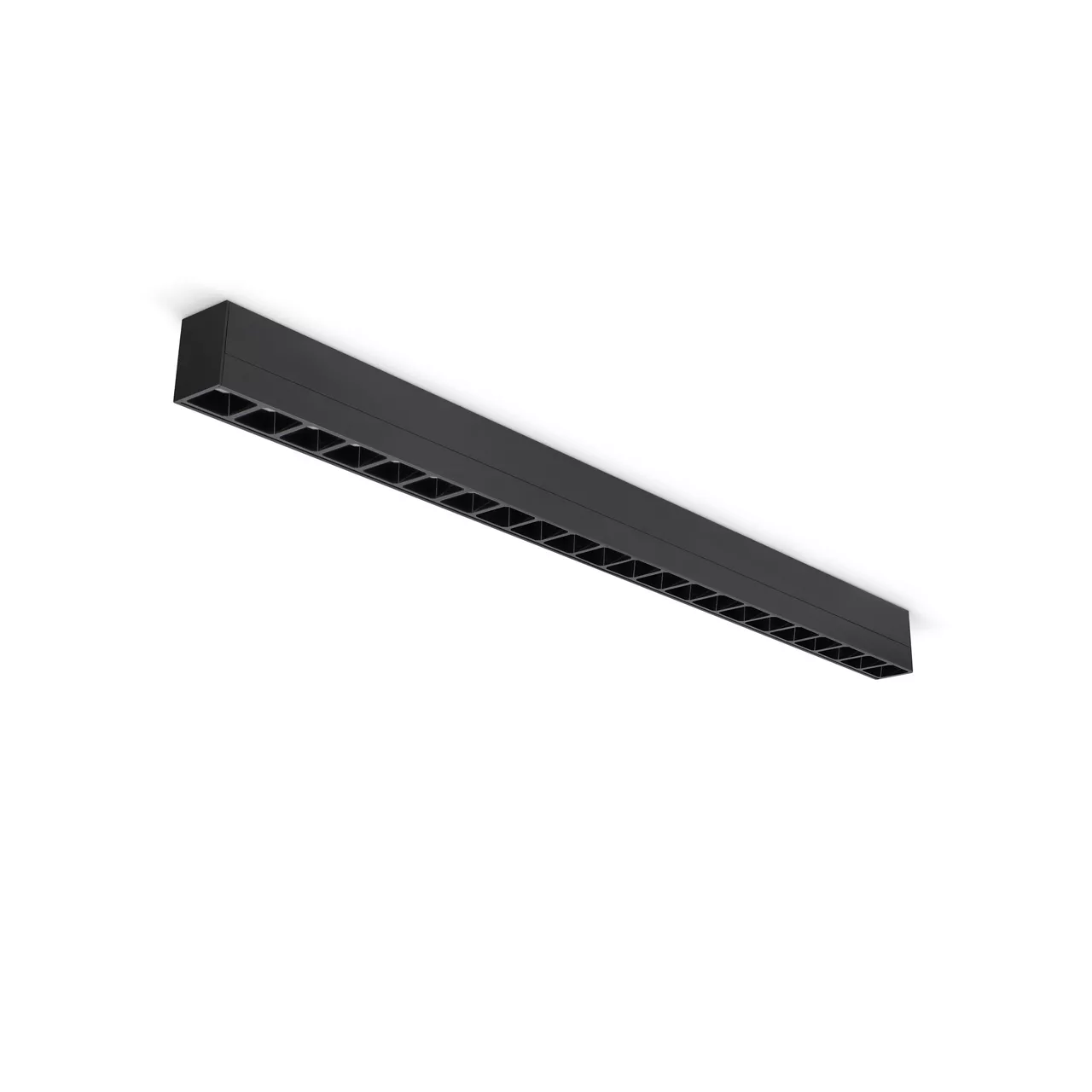

Line of Light 1200mm Direct/Indirect 50W IP20 3000/4000/5700K 1-10V UGR Black
JC077114BLK
- Two-part construction allowing easy access to termination and internal components
- Available in 4ft and 5ft lengths
- Available in white, silver and black
- Colour selectable between 3000K, 4000K & 5700K
- Illuminated corners & upward illumination options
- Suspension kit available
- Linking kit (JC077156) available to assemble longer lengths, squares and rectangle configurations
- Sections and corners can be connected via a simple plug and play system
- For longer seamless runs add /EXT to any standard Line of Light product codes to order middle/end pieces that exclude end caps and flex
Resources
Technical Information
Electrical
Class : I
Dimmable : 1-10V
Luminaire Circuit Wattage : 40W
Voltage Rating : 220-240
General Information
Additional Information : It is advised not to mix 1205mm and 1505mm fittings on the same connected layout- surface diffuser brightness may vary between the different lengths
Color Finish : Black
Dimming Protocol Compatability : 1-10V
IP Rating : 20
Light Source Features : 3CCT Selectable
Luminaire Accessories : JC077156 linking kit, JC077150 Corner(add BLK/SIL/WH), JC077153 2m suspension kit(add BLK/SIL/WH), JC077154 5m suspension kit(add BLK/SIL/WH)
Mounting : Surface or Suspended
Overall Dimensions : 1205 x 60 x 78
Product Group : Commercial Linear
Product Range : Line Of Light
Warranty : 5 Year Warranty (Terms & conditions apply)
Performance Data
Actual Lumen Output : 4200
Beam Angle ° : 70
CRI: Ra : 80
Correlated Color Temperature : 3000K / 4000K / 5700K
Lumens Per Circuit Watt : 105
Thermals
Operating Temperature Range °C : -20 to 60
