Line of Light 4ft 40W High output | 3000K/4000K/5700K DALI/Switch Dim in black
JC077008BLK
- High output 4650 lumens
- Two-part construction allowing easy access to termination and internal components
- Colour selectable between 3000K, 4000K & 5700K
- Illuminated corners & upward illumination options available
- Linking kit available to assemble longer lengths, squares and rectangle configurations
- For longer, seamless runs add /EXT to any standard Line of Light product code to order middle/end pices that exclude end caps and flex
- suspension kit available
Product Information
Electrical
Class : I
Dimmable : DALI-2(DT-6)/Switch dim
Luminaire Circuit Wattage : 40W
Voltage Rating : 220-240
General Information
Additional Information : It is advised not to mix 1205mm and 1505mm fittings on the same connected layout- surface diffuser brightness may vary between the different lengths
Color Finish : Black
Dimming Protocol Compatability : DALI/Sw dim
IP Rating : 20
Light Source Features : 3CCT Selectable
Luminaire Accessories : JC077156 linking kit, JC077150 Corner(add BLK/SIL/WH), JC077153 2m suspension kit(add BLK/SIL/WH), JC077154 5m suspension kit(add BLK/SIL/WH)

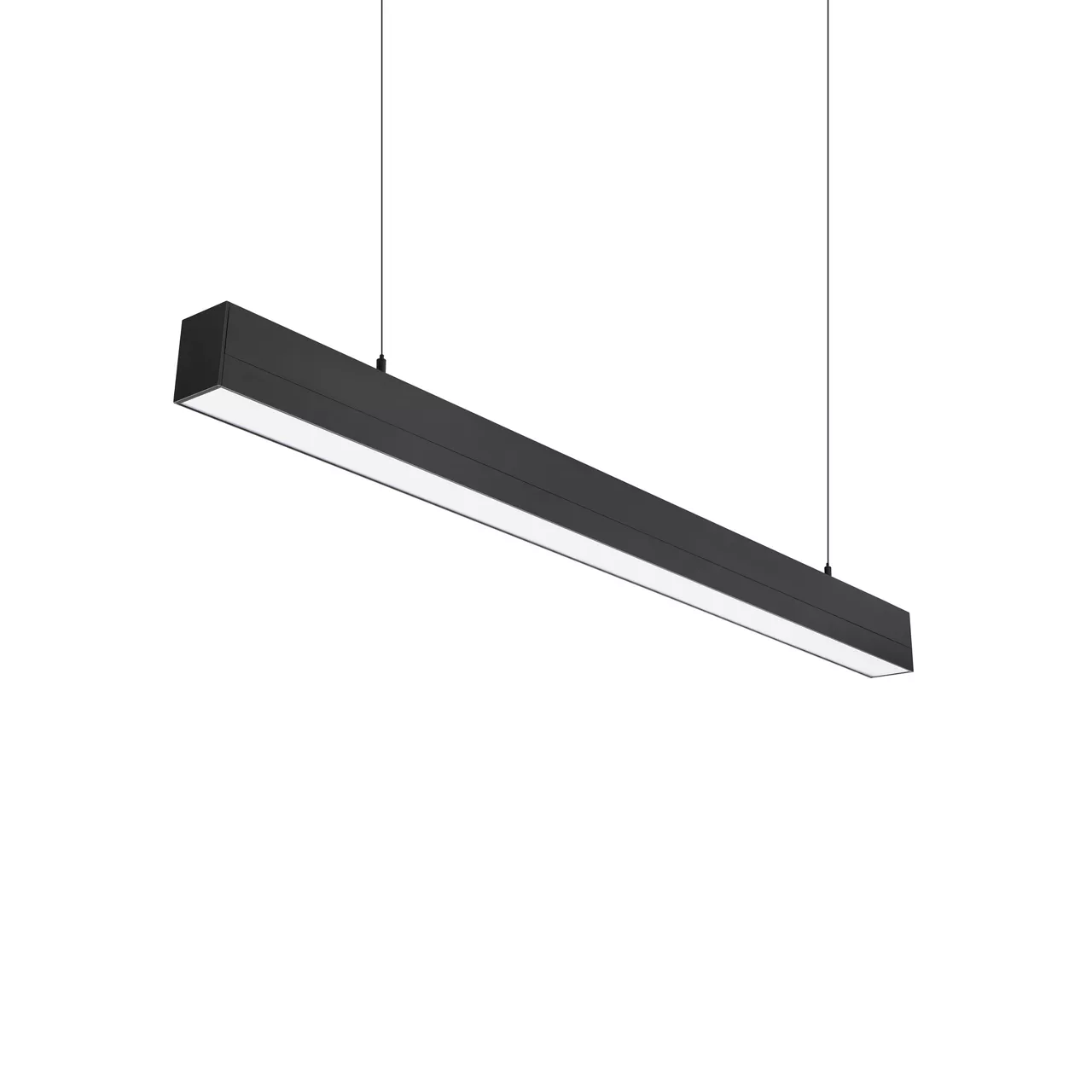

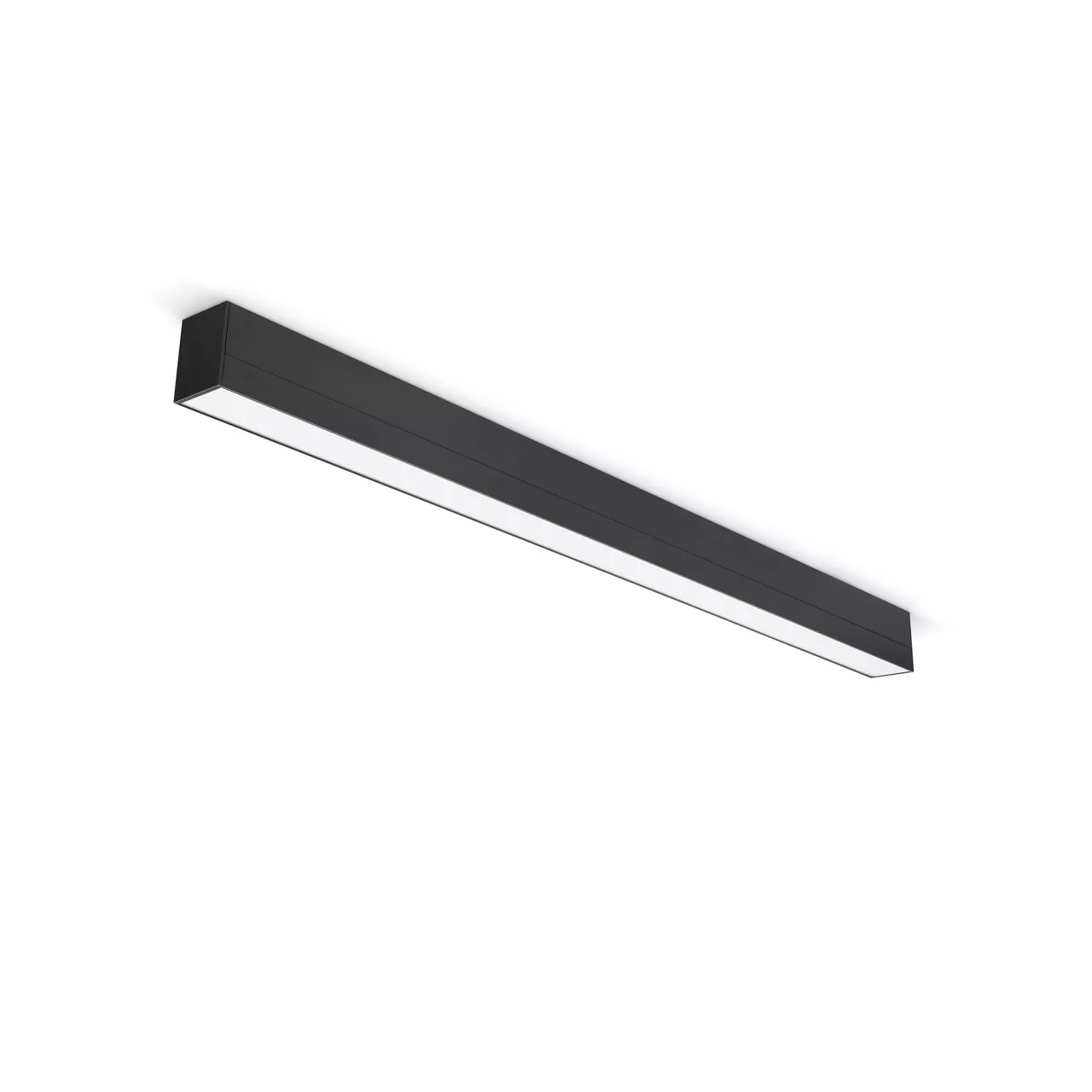

Mounting : Surface or Suspended
Overall Dimensions : 1205 x 60 x 78
Product Group : Commercial Linear
Product Range : Line Of Light
Warranty : 5 Year Warranty (Terms & conditions apply)
Performance Data
Actual Lumen Output : 4650
Beam Angle ° : 75
CRI: Ra : 80
Correlated Color Temperature : 3000K / 4000K / 5700K
Lumens Per Circuit Watt : 116
Thermals
Operating Temperature Range °C : -20 to 60
