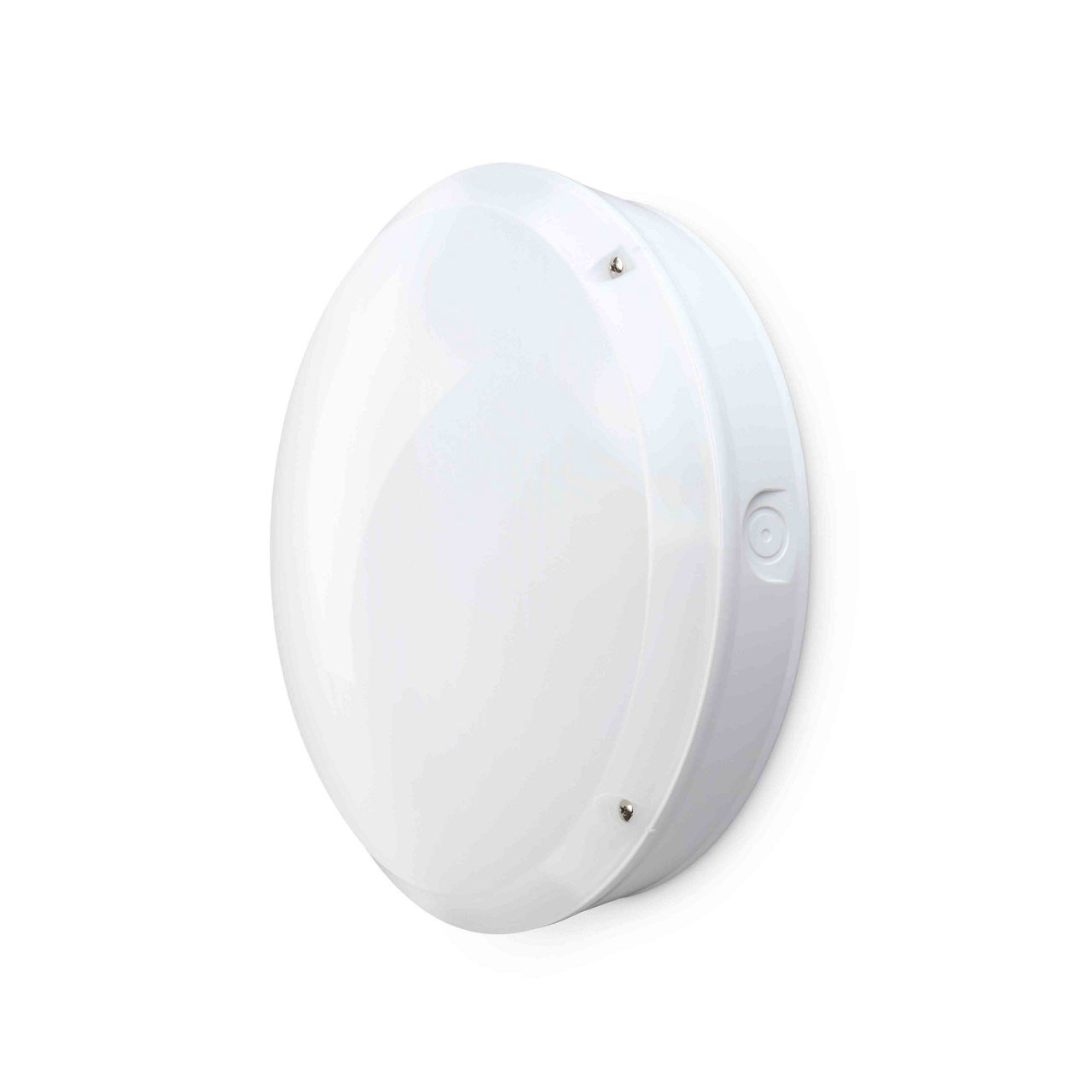

RadiaLED Rapid LED Module 24W 4000K DALI Addressable Emergency

JC070186DALIDALI

  • 24W LED Module, for use with RadiaLED Rapid body JC070156
  • 2.5x Faster to install than traditional LED bulkheads

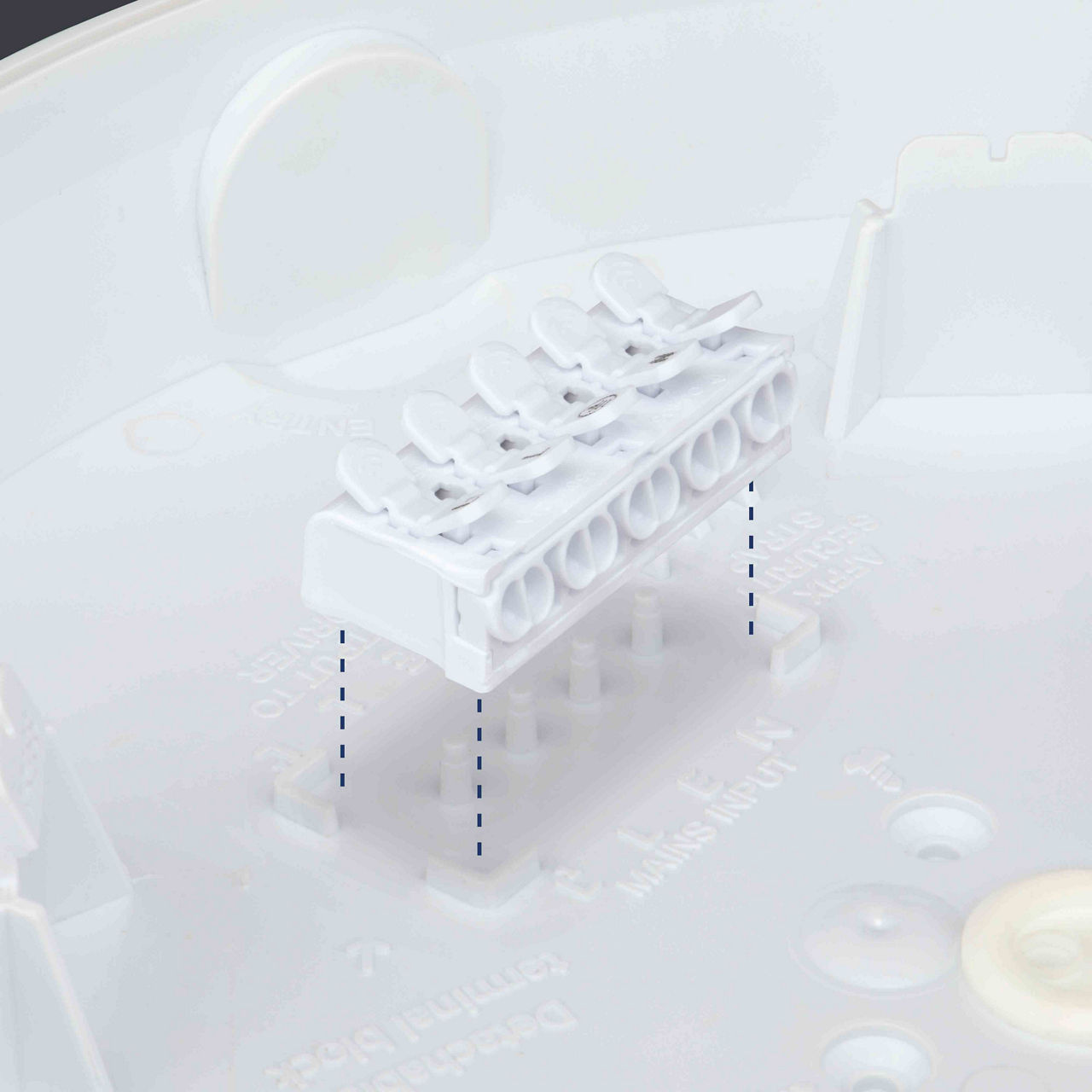

  • Detachable terminal, for simple wiring connection
  • Multiple cable entry, central and offset rear entry points

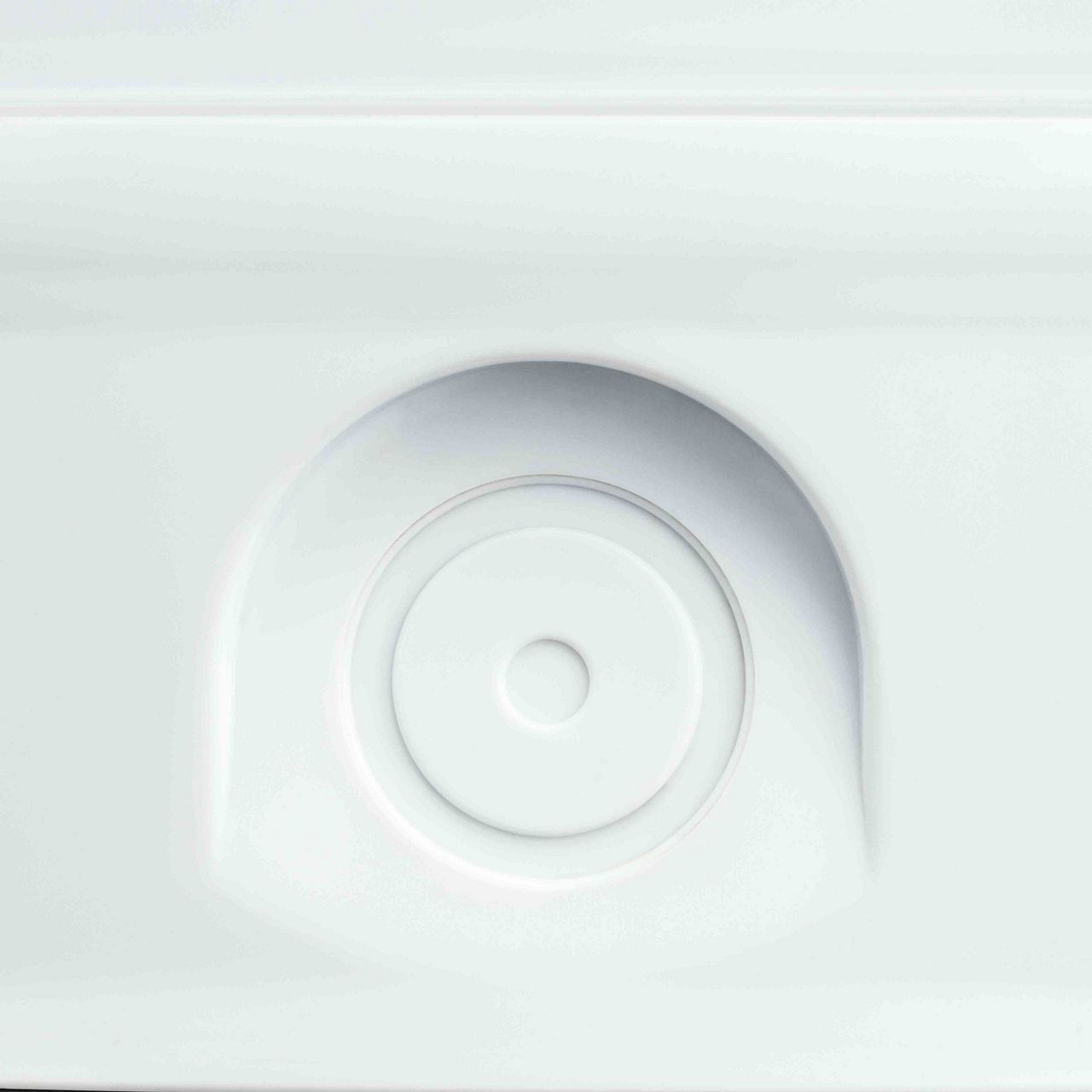

  • 20mm conduit entry, on top, bottom, sides and rim

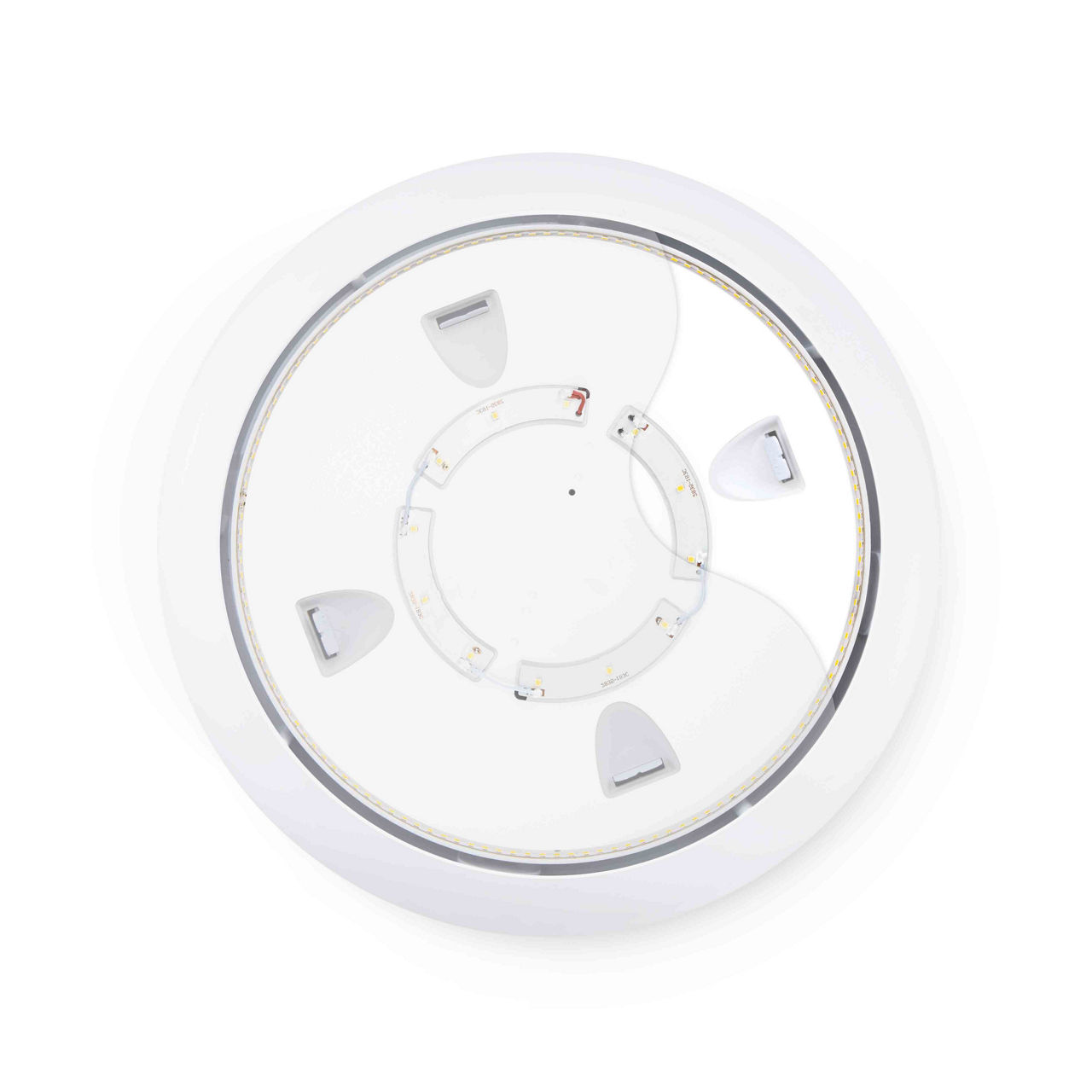

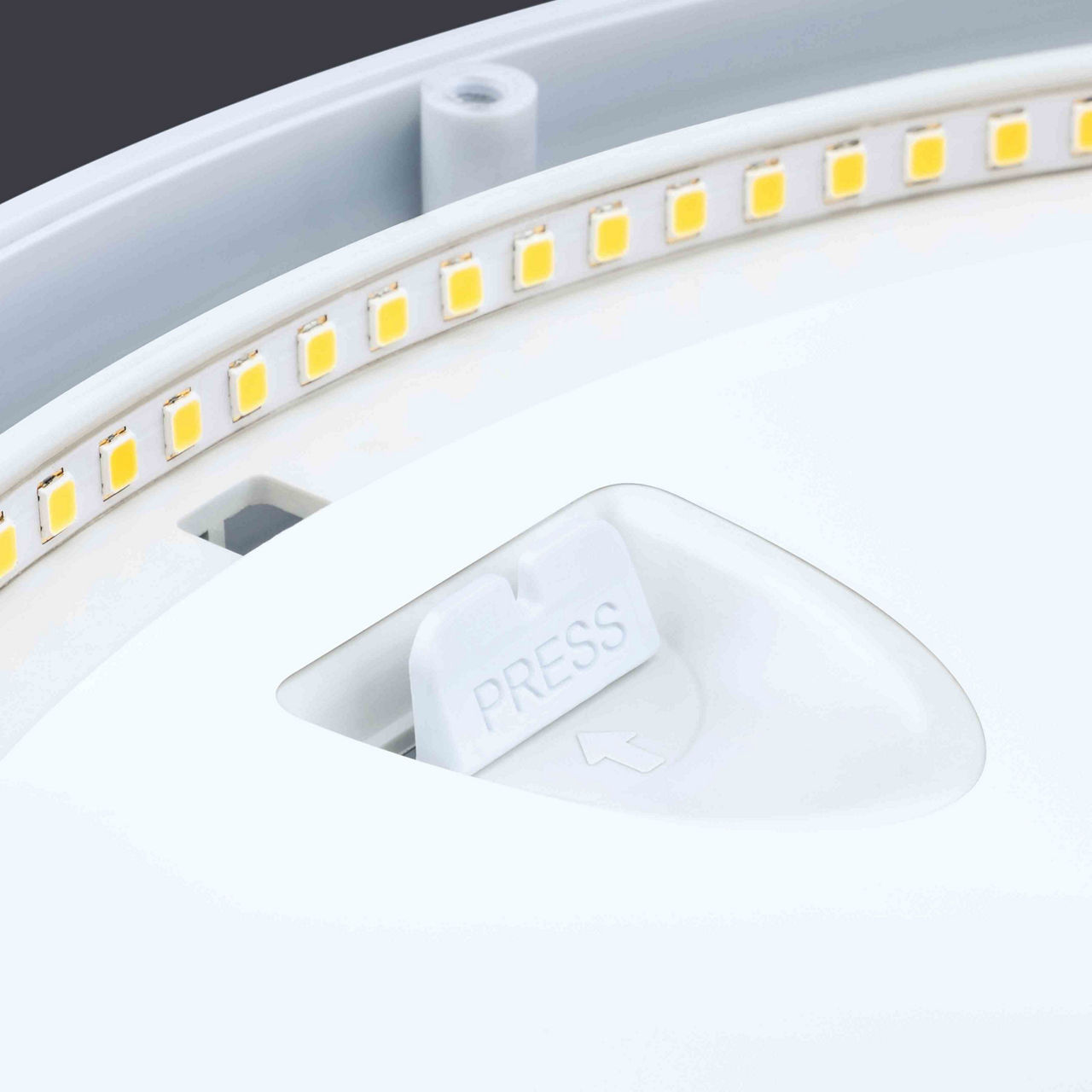

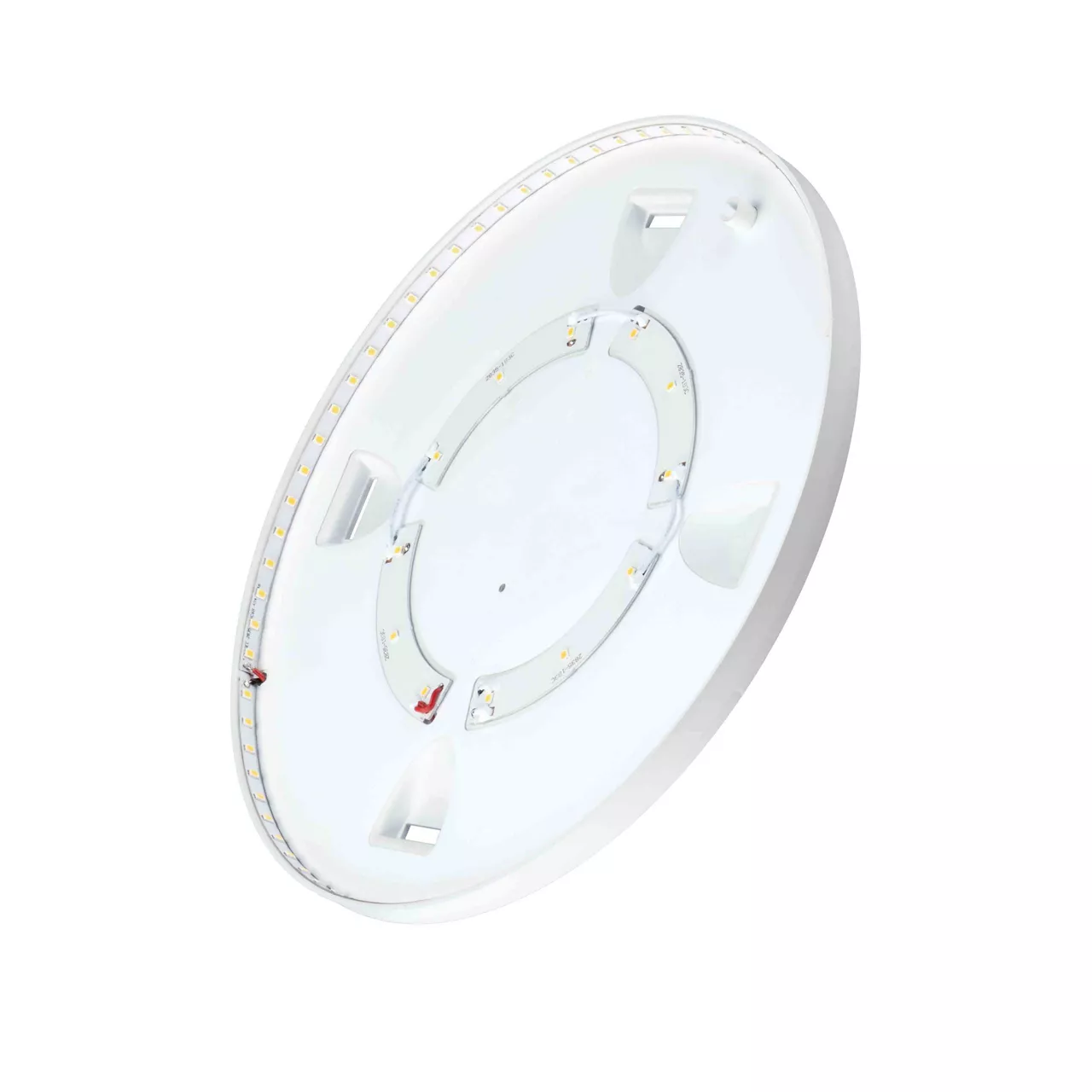

  • Clip-in tool-less LED gear tray design
  • Smooth, even light distribution
  • Bodies, IK10, maximum impact rating
  • Bodies, IP65 protection against dust and moisture
  • Emergency, microwave and dimmable options

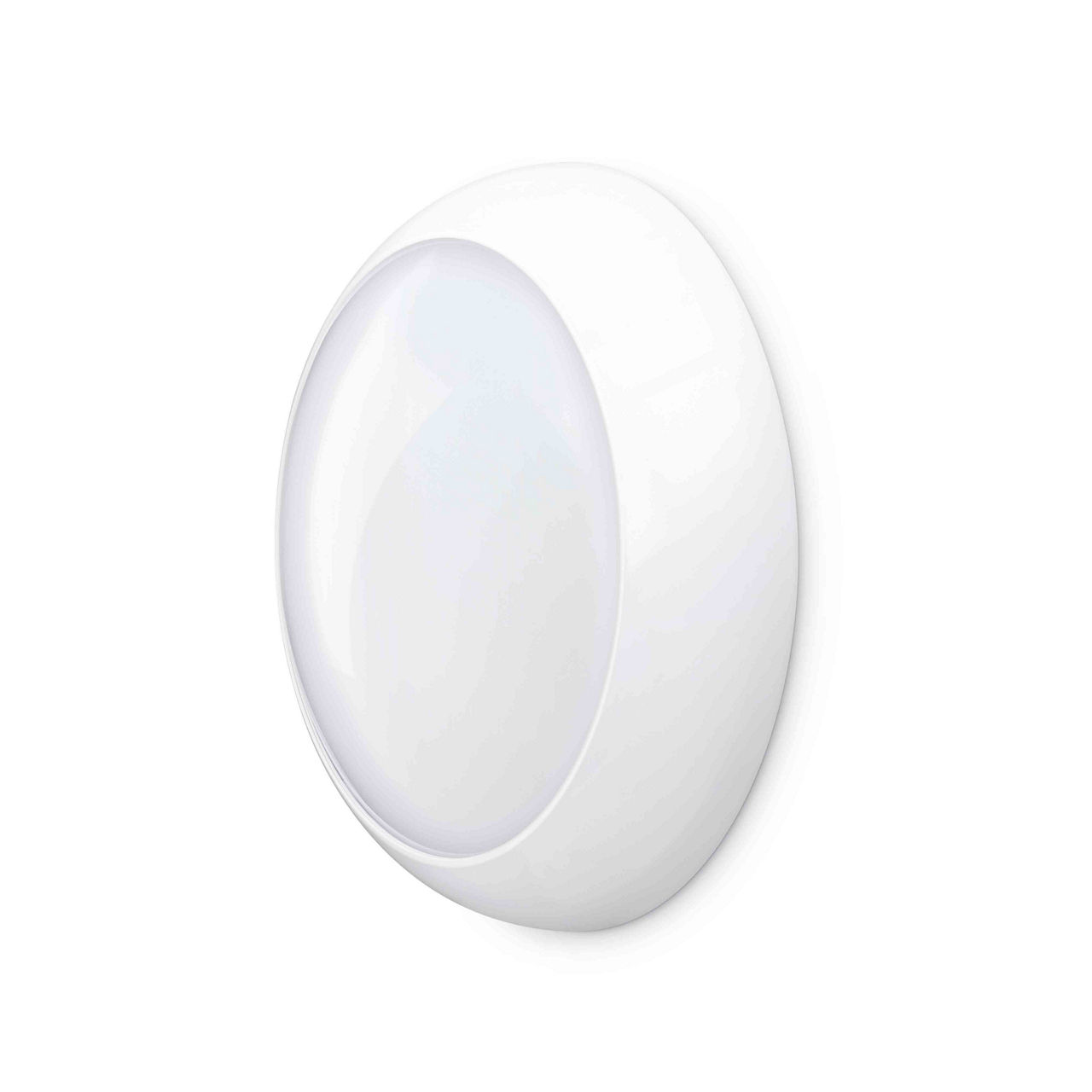

  • 6 rim colour options, including black Eyelid
Country of Origin: Please Contact Customer Service

Product Information

  • Performance Specifications

    Dimming Protocol Compatibility : DALI

  • Product Details

    Additional Information : All lumen values stated are when module is installed in body

    Product Range : RadiaLED Rapid

    Warranty : 5 Year Warranty (2 year on batteries)

  • Product Specifications

    Actual Lumen Output : 2360

    Beam Angle : 116

    CRI : 84

    Class : I

    Correlated Color Temperature : 4000

    Dimmable : Yes

    IP Rating : IP65 when installed in Body

    Lumens Per Circuit Watt : 98

    Luminaire Circuit Wattage : 24

    Operating Temperature range °C : 0 to +26
