RadiaLED Rapid LED Module 24W 4000K Emergency Self-test
JC070177ST
- 24W LED Module, for use with RadiaLED Rapid body JC070156
- 2.5x Faster to install than traditional LED bulkheads
- Detachable terminal, for simple wiring connection

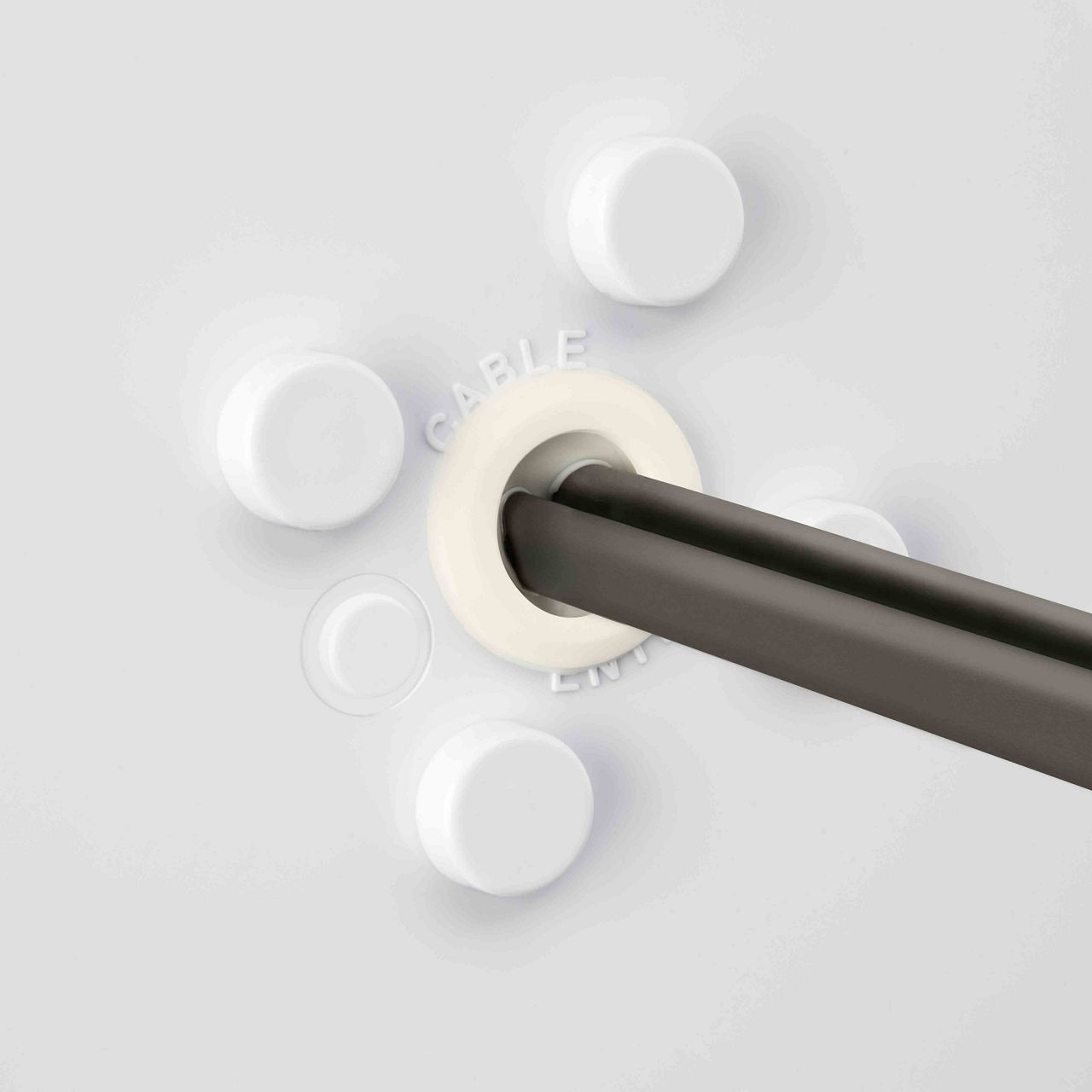

- Multiple cable entry, central and offset rear entry points

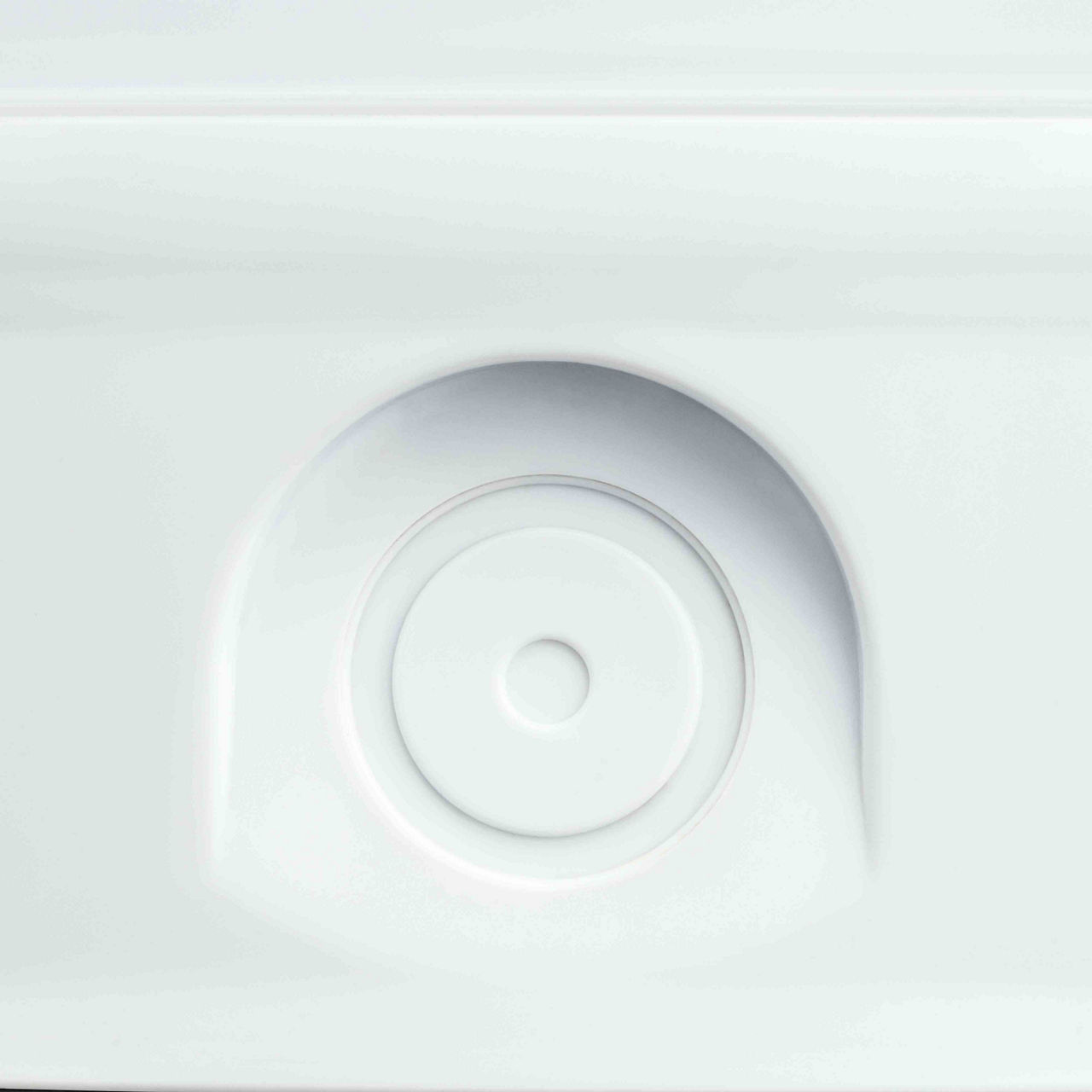

- 20mm conduit entry, on top, bottom, sides and rim

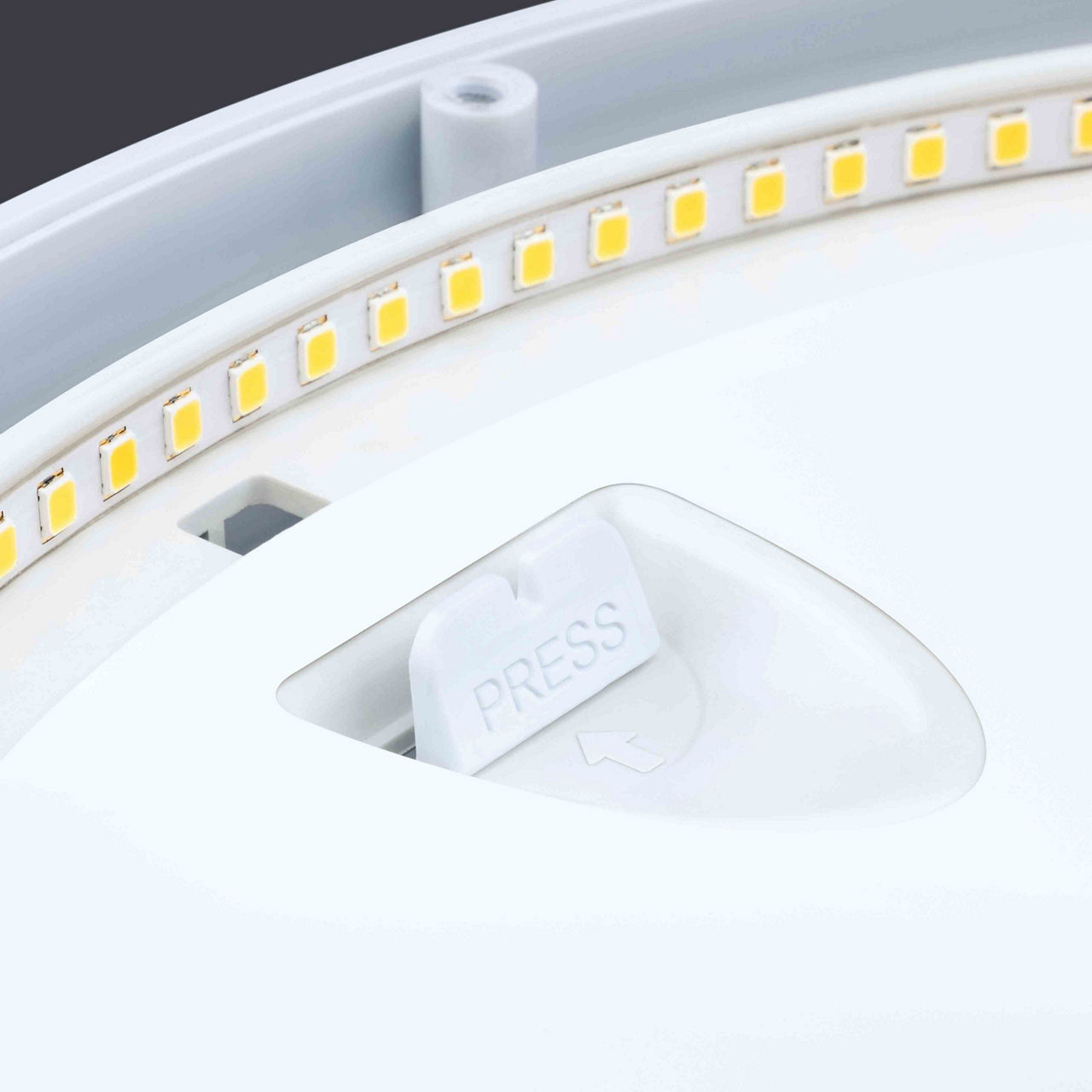

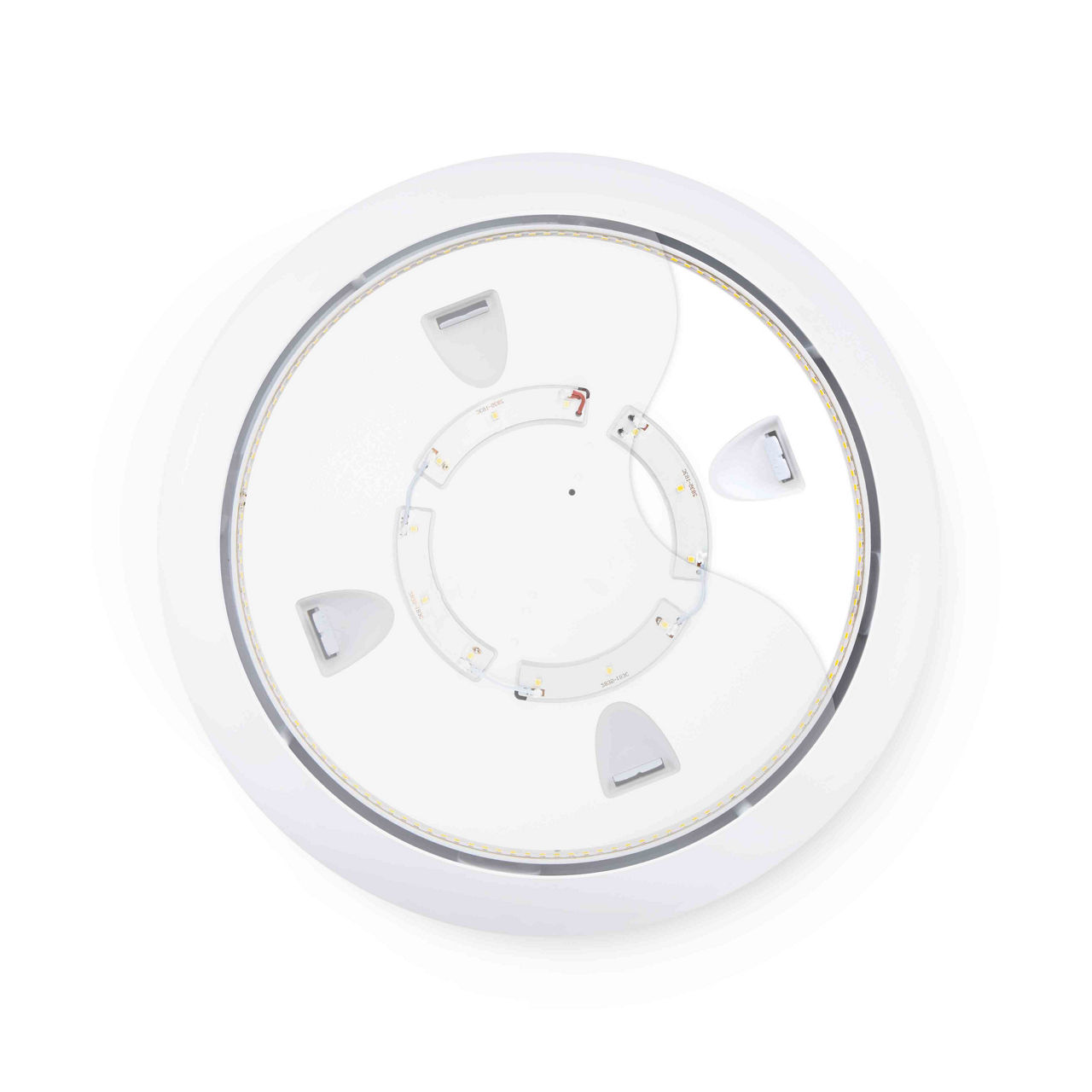

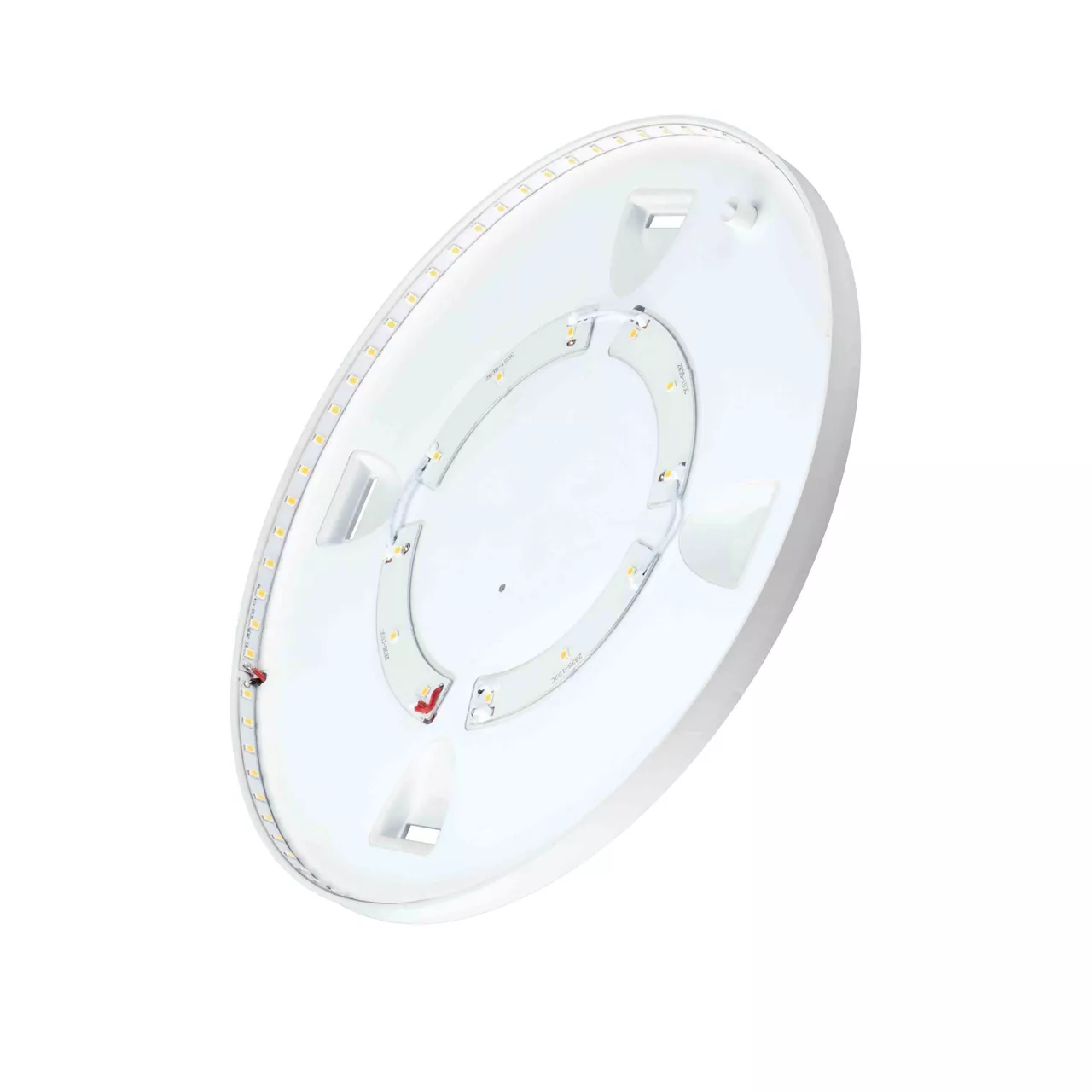

- Clip-in tool-less LED gear tray design
- Smooth, even light distribution
- Bodies, IK10, maximum impact rating
- Bodies, IP65 protection against dust and moisture
- Emergency, microwave and dimmable options
- 6 rim colour options, including black Eyelid
Country of Origin: Please Contact Customer Service
Product Information
Electrical
Class : II
Dimmable : No
Luminaire Circuit Wattage : 24
Voltage Rating : 220-240
Emergency data
LOR % in Emergency Mode : 13
General Information
IP Rating : IP65 when installed in Body
Light Source Features : Neutral White
Mounting : Press fit clip into JC070156 Body
Trade Name : RadiaLED
Warranty : 5 Year Warranty (2 year on batteries)
Performance Data
Actual Lumen Output : 2360
Battery Type : Li-ion(Lithium-ion)
Beam Angle ° : 116
CRI: Ra : 84
Correlated Color Temperature : 4000
Lumens Per Circuit Watt : 98
Thermals
Operating Temperature Range °C : 0 to +26
