Toughbay™204W IP65 5700K 30000lm 1-10V dimmable 90° Emergency
JC040155
- Now with 1 year on site warranty
- Ultra efficient, up to 150 Lumens per circuit Watt
- 1-10V dimmable as standard
- IP65 and IK10 rated
- Suitable for operating temperatures +3° to +40°

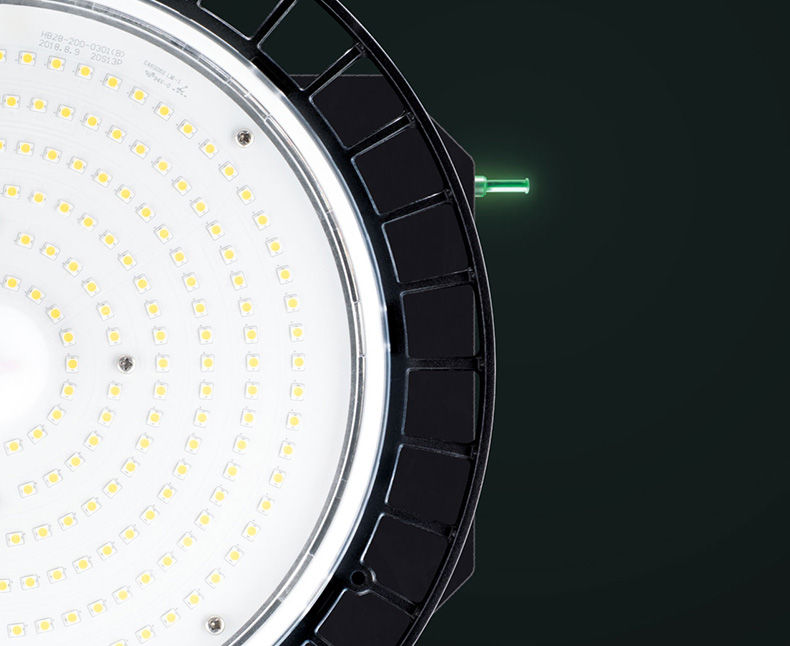

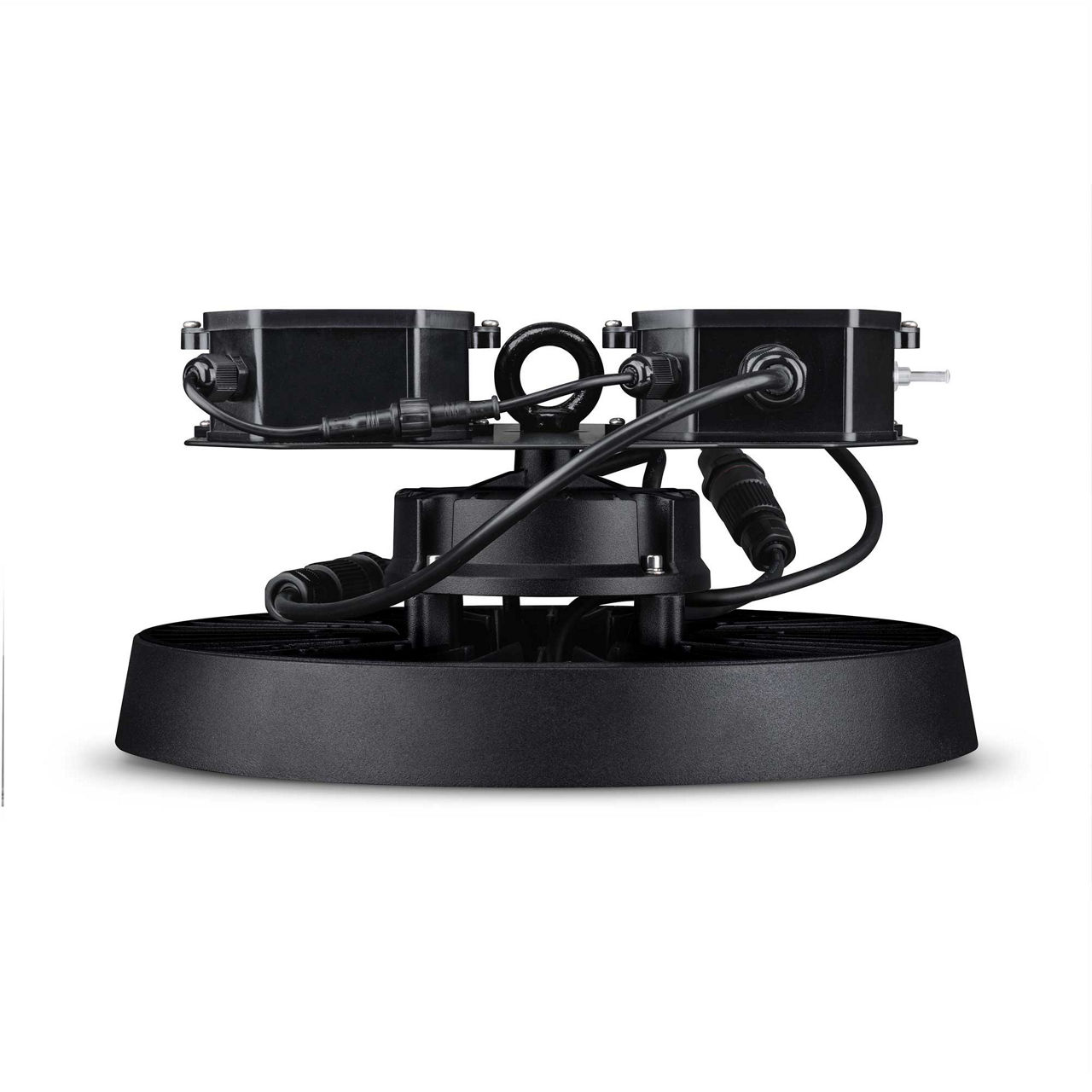

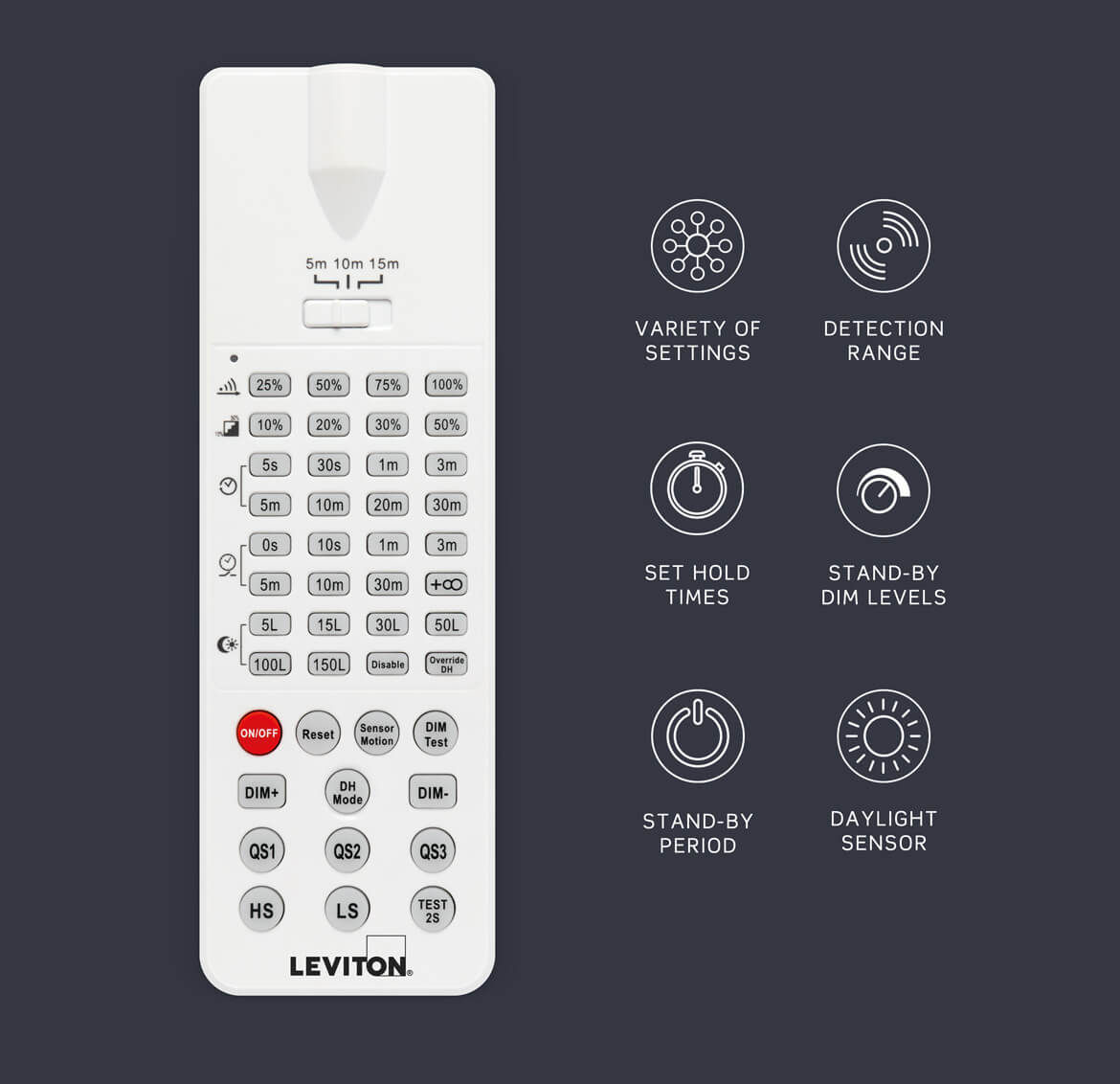

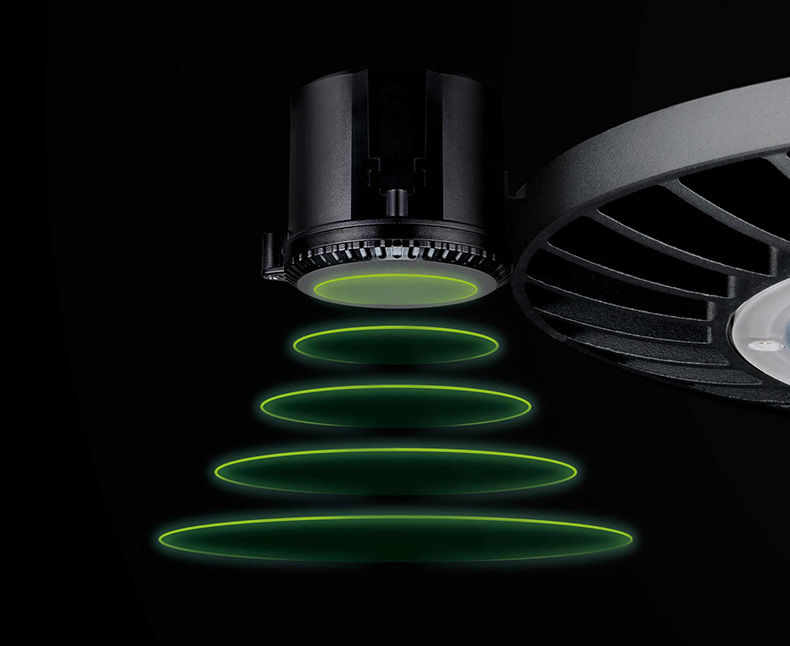

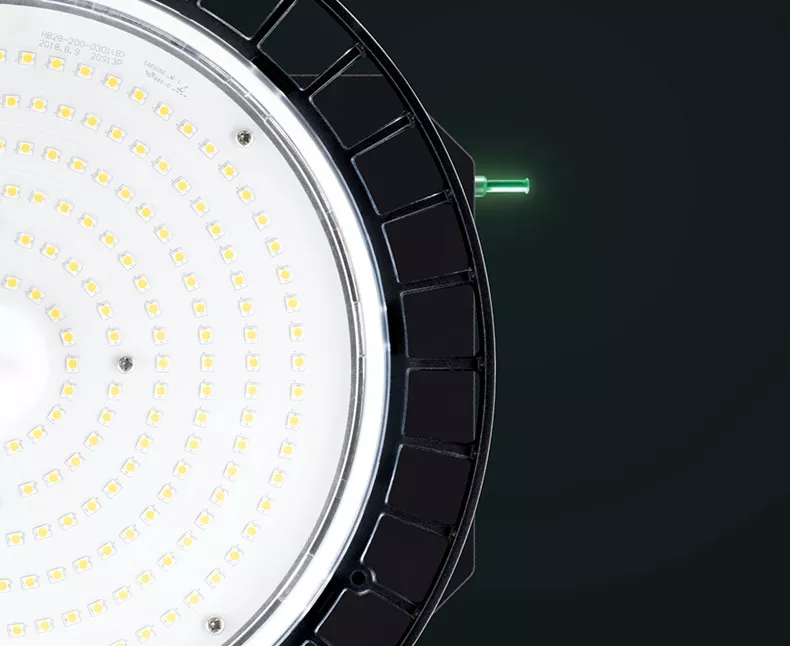

- Emergency and step dimmable available with microwave version and remote control
- High CRI of 84 ensuring a true representation of colour throughout its life
- Available in 60° 90° and 120° beam angle options
Country of Origin: Please Contact Customer Service
Product Information
Dimensional Data
Overall Dimensions : 330Ø x 194.6mm
Performance Specifications
Dimming Protocol Compatibility : 1-10V
Product Details

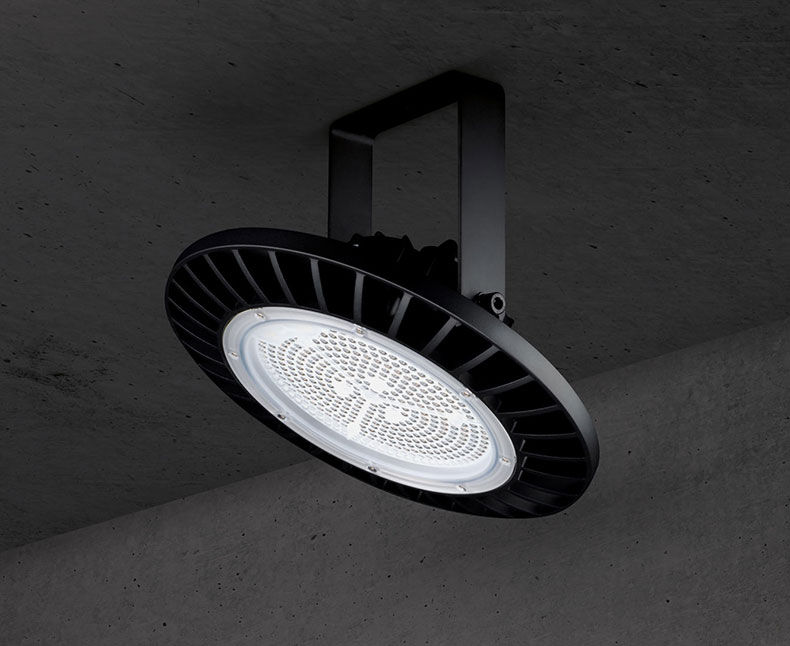

Additional Information : JC040174 Surface Mount bracket not suitable for EM version, suspension only
Color Finish : Black
Product Range : Toughbay™
Warranty : 5 Year Warranty (2 year on batteries)(includes 1 year onsite)
Product Specifications
Actual Lumen Output : 30000
Beam Angle : 90
CRI : 84
Class : I
Correlated Color Temperature : 5700K
Dimmable : Yes
IP Rating : IP65
Lumens Per Circuit Watt : 147
Luminaire Circuit Wattage : 204
Method of fix : Suspension eye only, not suitable for surface mounting bracket
Operating Temperature range °C : +3 to +40
