Toughbay™150W IP65 4000K 21500lm 1-10V dimmable 120°

JC040145

  • Now with 1 year on site warranty
  • Ultra efficient, up to 150 Lumens per circuit Watt
  • 1-10V dimmable as standard
  • IP65 and IK10 rated
  • Suitable for extreme operating temperatures -40° to +40°

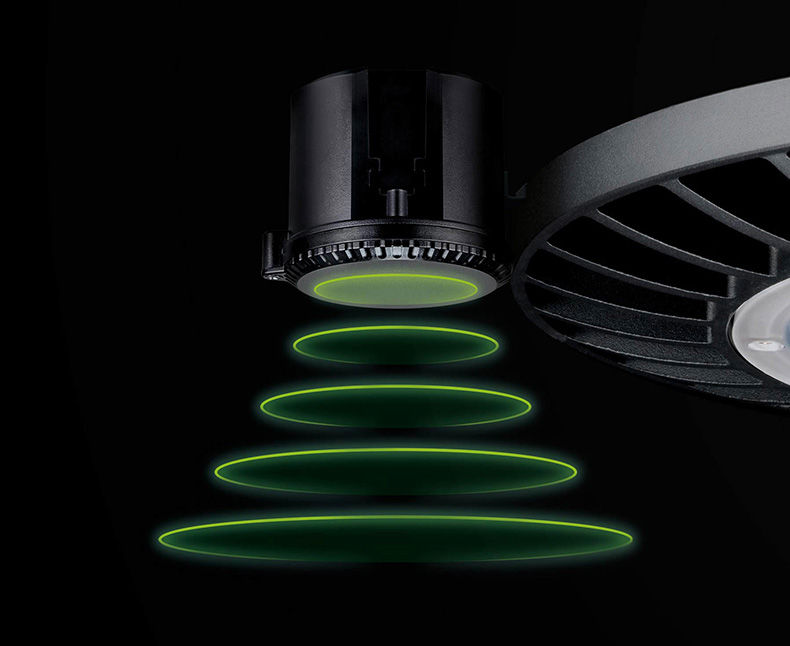

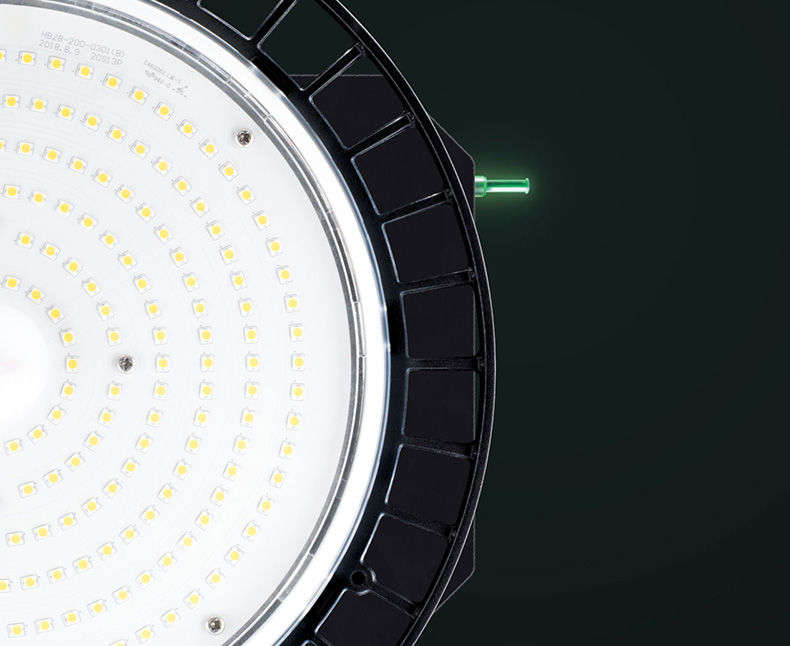

  • Emergency and step dimmable available with microwave version and remote control
  • High CRI of 84 ensuring a true representation of colour throughout its life
  • Available  in 60° 90° and 120° beam angle options
Country of Origin: Please Contact Customer Service

Product Information

  • Dimensional Data

    Overall Dimensions : 280Ø x 159mm

  • Performance Specifications

    Dimming Protocol Compatibility : 1-10V

  • Product Details

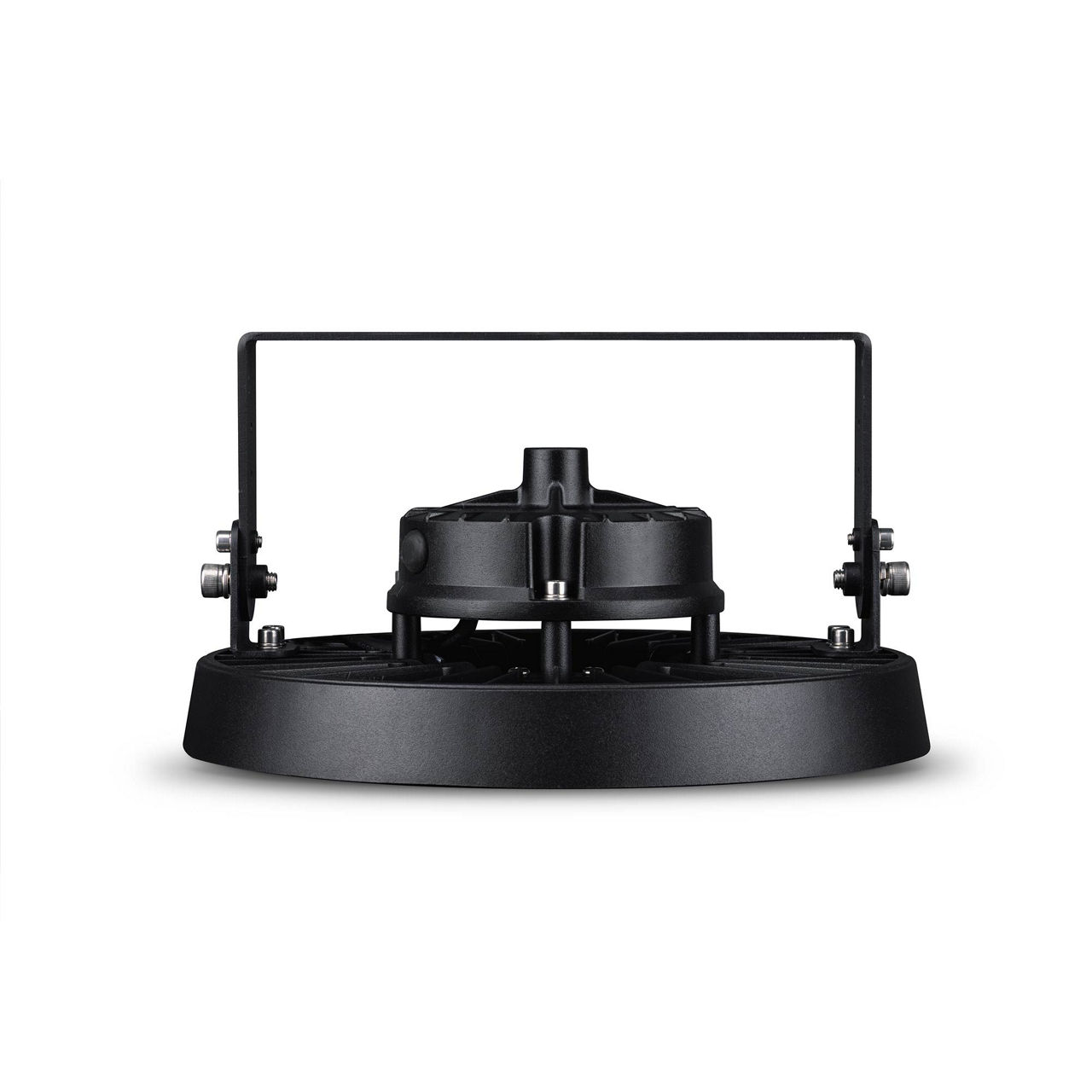

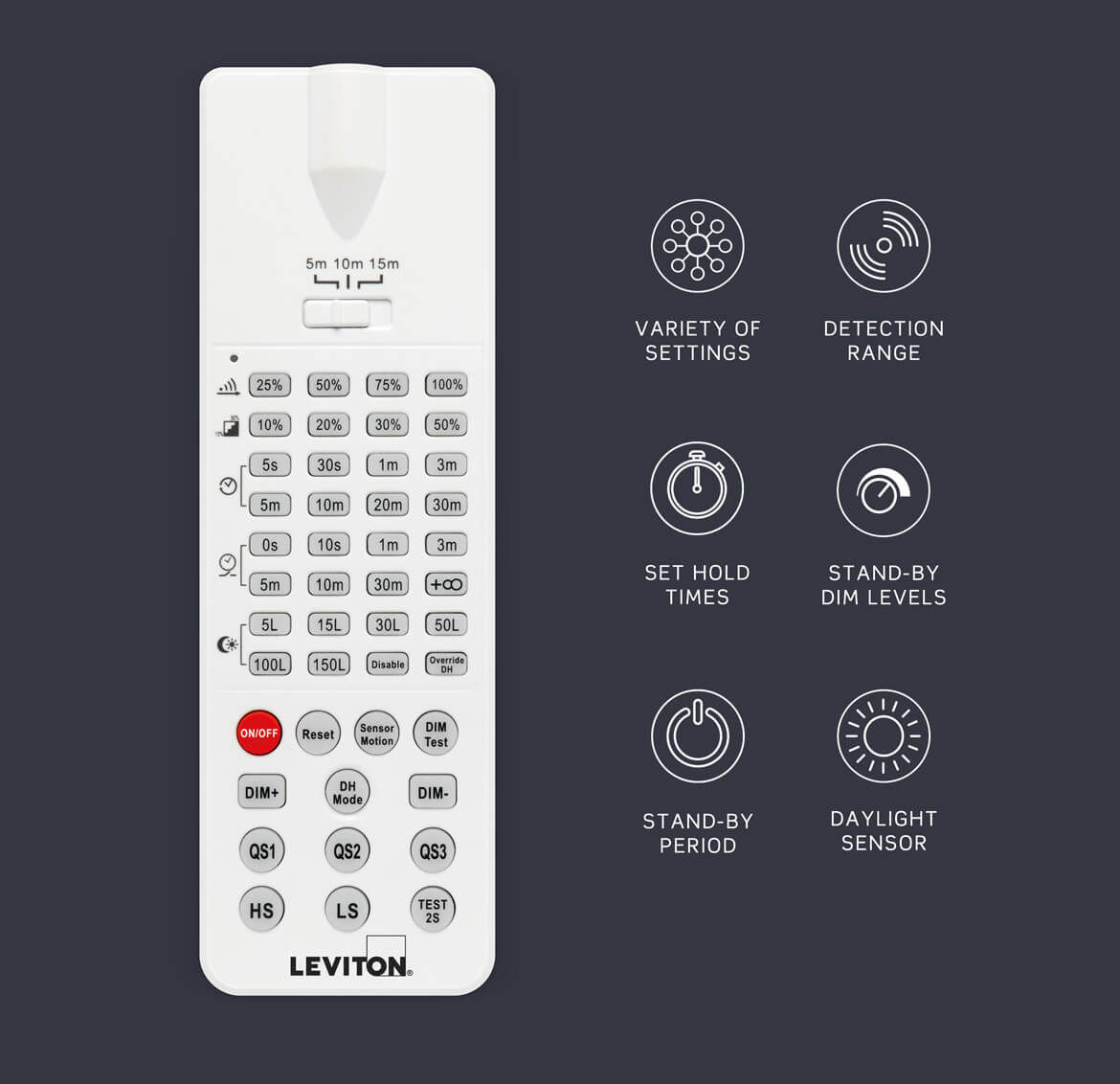

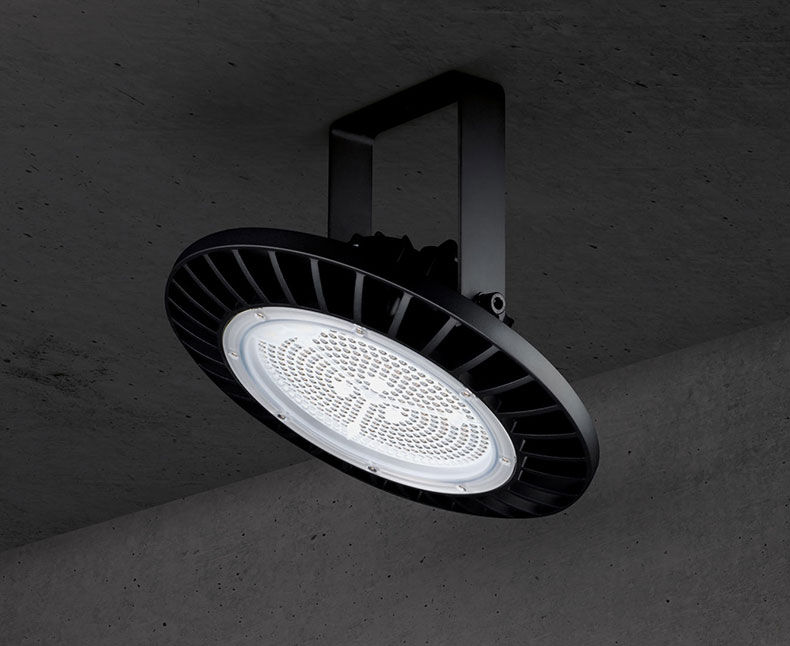

    Additional Information : JC040149 Surface Mount bracket not suitable for the microwave dimmable version- suspension only. To adjust sensor settings Remote Control LEV71808 required(purchased separately)

    Color Finish : Black

    Product Range : Toughbay™

    Warranty : 5 Year Warranty (includes 1 year onsite)

  • Product Specifications

    Actual Lumen Output : 21500

    Beam Angle : 120

    CRI : 84

    Class : I

    Correlated Color Temperature : 4000K

    Dimmable : Yes

    IP Rating : IP65

    Lumens Per Circuit Watt : 143

    Luminaire Circuit Wattage : 150

    Operating Temperature range °C : -40 to +40
