Toughbay™100W IP65 5700K 14500lm 1-10V dimmable 120°

JC040108

  • Now with 1 year on site warranty
  • Ultra efficient, up to 150 Lumens per circuit Watt
  • 1-10V dimmable as standard
  • IP65 and IK10 rated
  • Suitable for extreme operating temperatures -40° to +40°

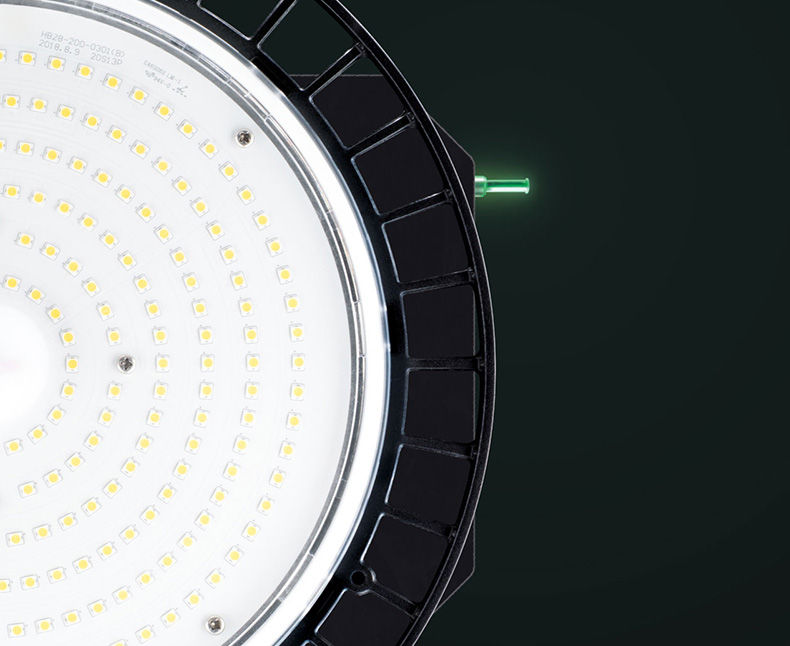

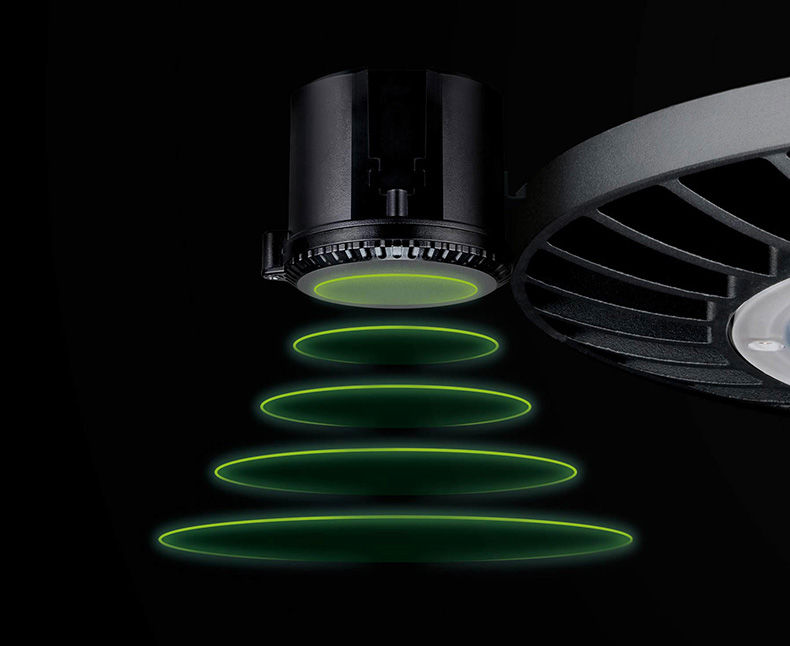

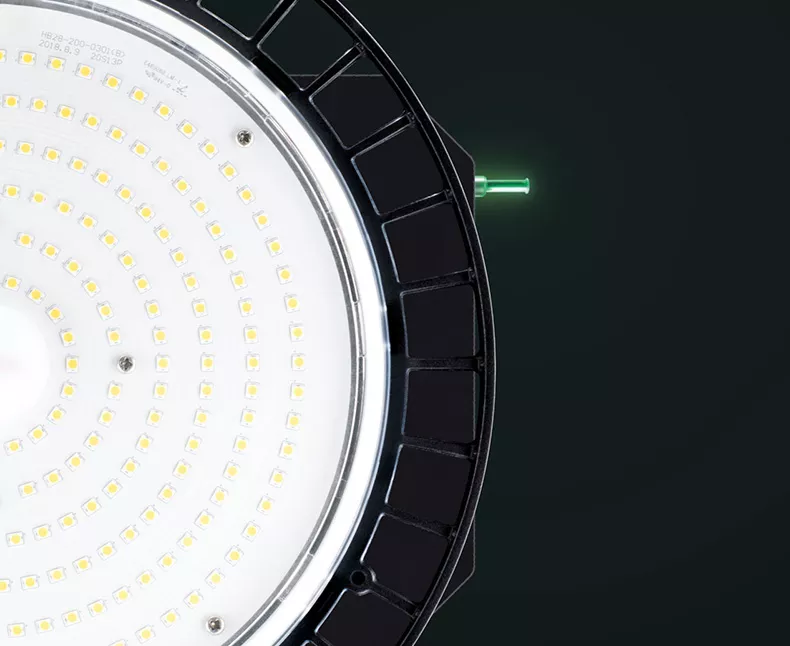

  • Emergency and step dimmable available with microwave version and remote control
  • High CRI of 84 ensuring a true representation of colour throughout its life
  • Available  in 60° 90° and 120° beam angle options
Country of Origin: Please Contact Customer Service

Product Information

  • Dimensional Data

    Overall Dimensions : 240Ø x 152.6mm

  • Performance Specifications

    Dimming Protocol Compatibility : 1-10V

  • Product Details

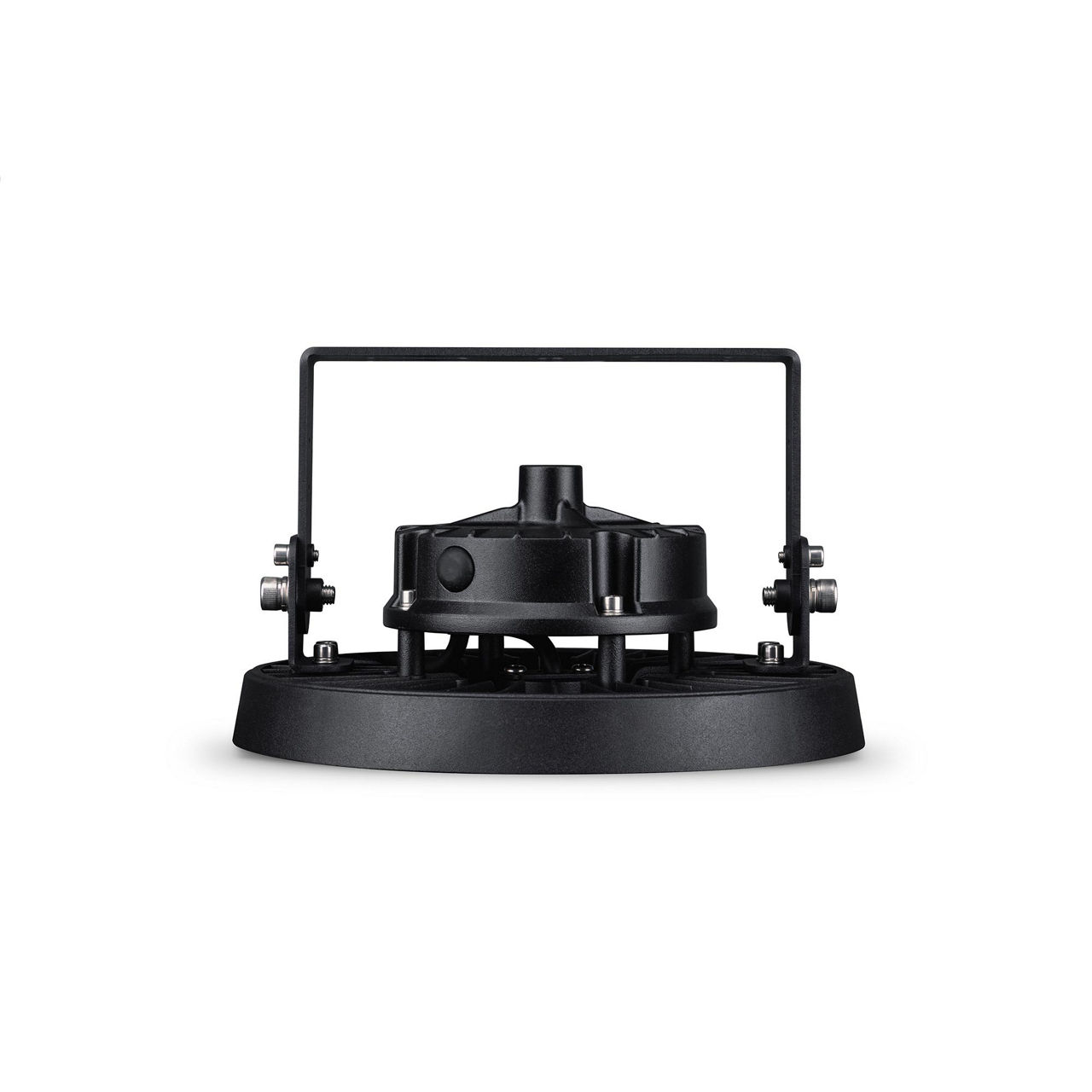

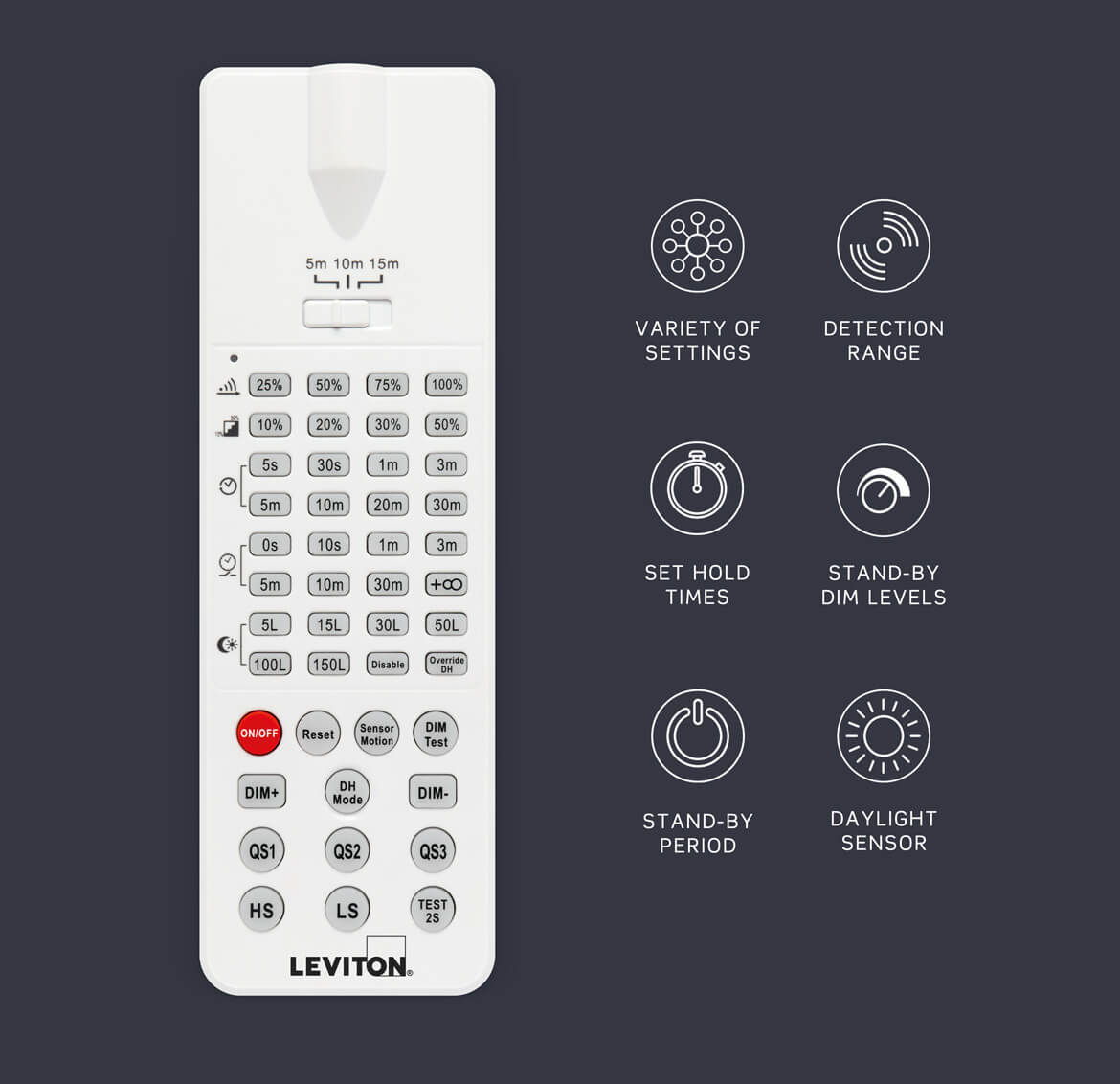

    Additional Information : JC040124 Surface Mount bracket not suitable for the microwave dimmable version- suspension only. To adjust sensor settings Remote Control LEV71808 required(purchased separately)

    Color Finish : Black

    Product Range : Toughbay™

    Warranty : 5 Year Warranty (includes 1 year onsite)

  • Product Specifications

    Actual Lumen Output : 14500

    Beam Angle : 120

    CRI : 84

    Class : I

    Correlated Color Temperature : 5700K

    Dimmable : Yes

    IP Rating : IP65

    Lumens Per Circuit Watt : 145

    Luminaire Circuit Wattage : 100

    Operating Temperature range °C : -40 to +40
