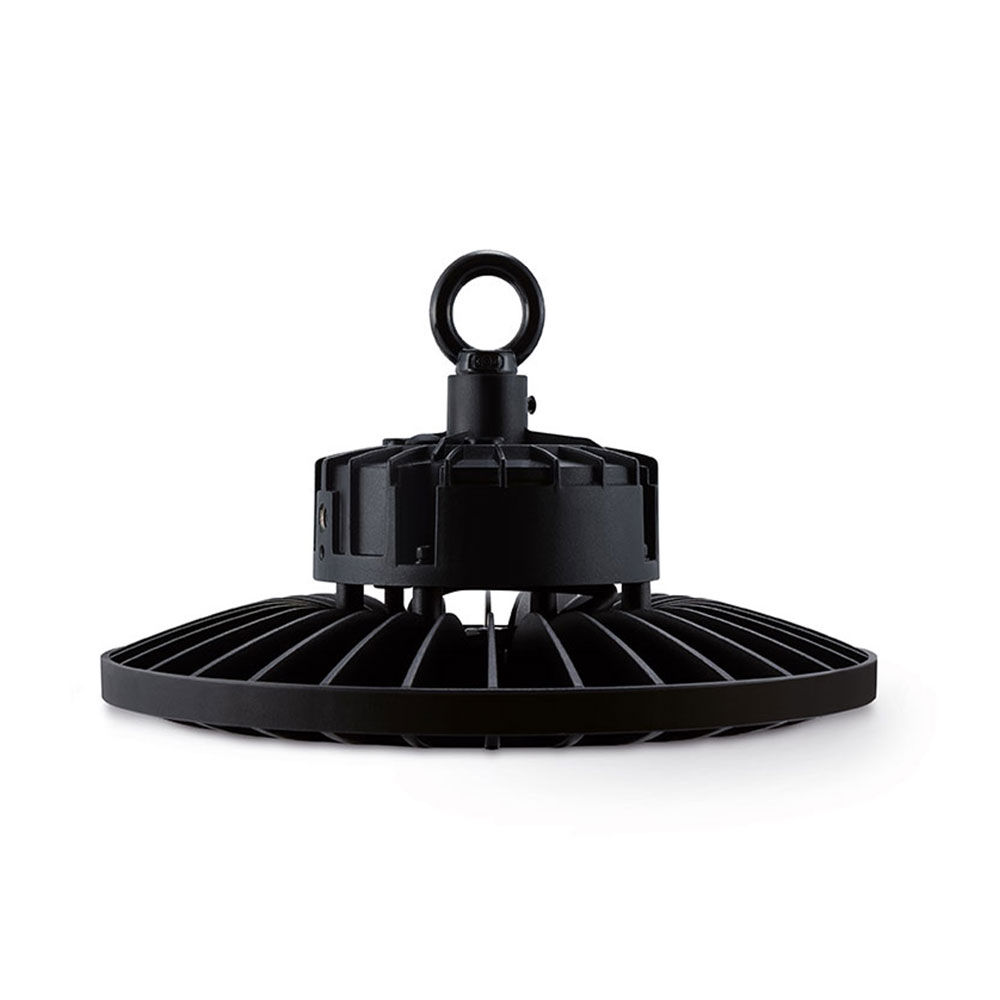

Toughbay Retrofit 200W | 90° beam | 5700K | Microwave Dimmable

JC040023

  • NEW 5-year extended warranty including 1-year on-site
  • Ultra efficient, 123 Lumens per circuit Watt
  • 1-10V dimmable as standard
  • Suitable for extreme operating temperatures, -30° to +60°
  • Step dimmable available with  microwave version and remote control
  • High CRI of 80, ensuring a true representation of colour throughout its life
  • Multiple lenses available for 60° and 90° beam angles
  • Emergency versions available
  • Sensor not shown, see profile for dimensions
  • Remote (LEV71808) is required for all microwave versions
Country of Origin: Please Contact Customer Service

Product Information

  • Dimensional Data

    Overall Dimensions : 380Ø x 162mm

  • Performance Specifications

    Dimming Protocol Compatibility : Microwave dimmable

  • Product Specifications

    Actual Lumen Output : 24500

    Beam Angle : 90

    CRI : 80

    Class : I

    Correlated Color Temperature : 5700K

    Dimmable : Yes

    IP Rating : IP65

    Lumens Per Circuit Watt : 123 LpcW

    Luminaire Circuit Wattage : 200

    Method of fix : Suspension eye only, not suitable for surface mounting bracket

    Operating Temperature range °C : -30 to +60
