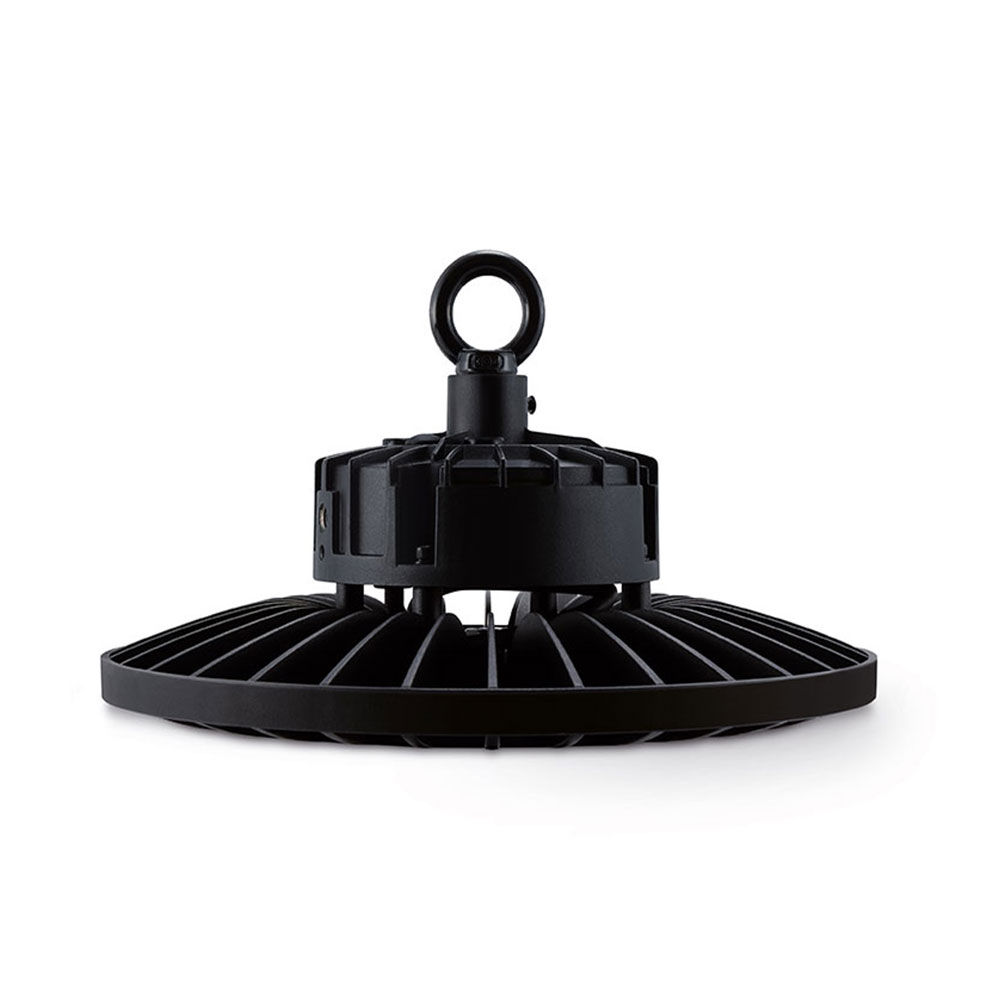

Toughbay Retrofit 100W | 60° beam | 5700K
JC040001
- NEW 5-year extended warranty including 1-year on-site
- Ultra efficient, 123 Lumens per circuit Watt
- 1-10V dimmable as standard
- Suitable for extreme operating temperatures, -30° to +60°
- Step dimmable available with microwave version and remote control
- High CRI of 80, ensuring a true representation of colour throughout its life
- Multiple lenses available for 60° and 90° beam angles
- Emergency versions available
- Sensor not shown, please see profile drawing for dimensions
Country of Origin: Please Contact Customer Service
Product Information
Dimensional Data
Overall Dimensions : 260Ø x 162mm
Performance Specifications
Dimming Protocol Compatibility : 1-10V
Product Details
Color Finish : Black
Product Range : Toughbay™ Circular Retrofit
Warranty : 5 Year Warranty (includes 1 year onsite)
Product Specifications
Actual Lumen Output : 12300
Beam Angle : 60
CRI : 80
Class : I
Correlated Color Temperature : 5700K
Dimmable : Yes
IP Rating : IP65
Lumens Per Circuit Watt : 123 LpcW
Luminaire Circuit Wattage : 100
Method of fix : Suspension eye or surface mount bracket JC040049
Operating Temperature range °C : -30 to +60
