Commercial Linear UGR19 5ft 32W/34W/36W/38W 4000K Self-test Emergency

JC030075

  • UGR <19 as standard, designed to comply with BS EN 12464-1 lighting of workspace.

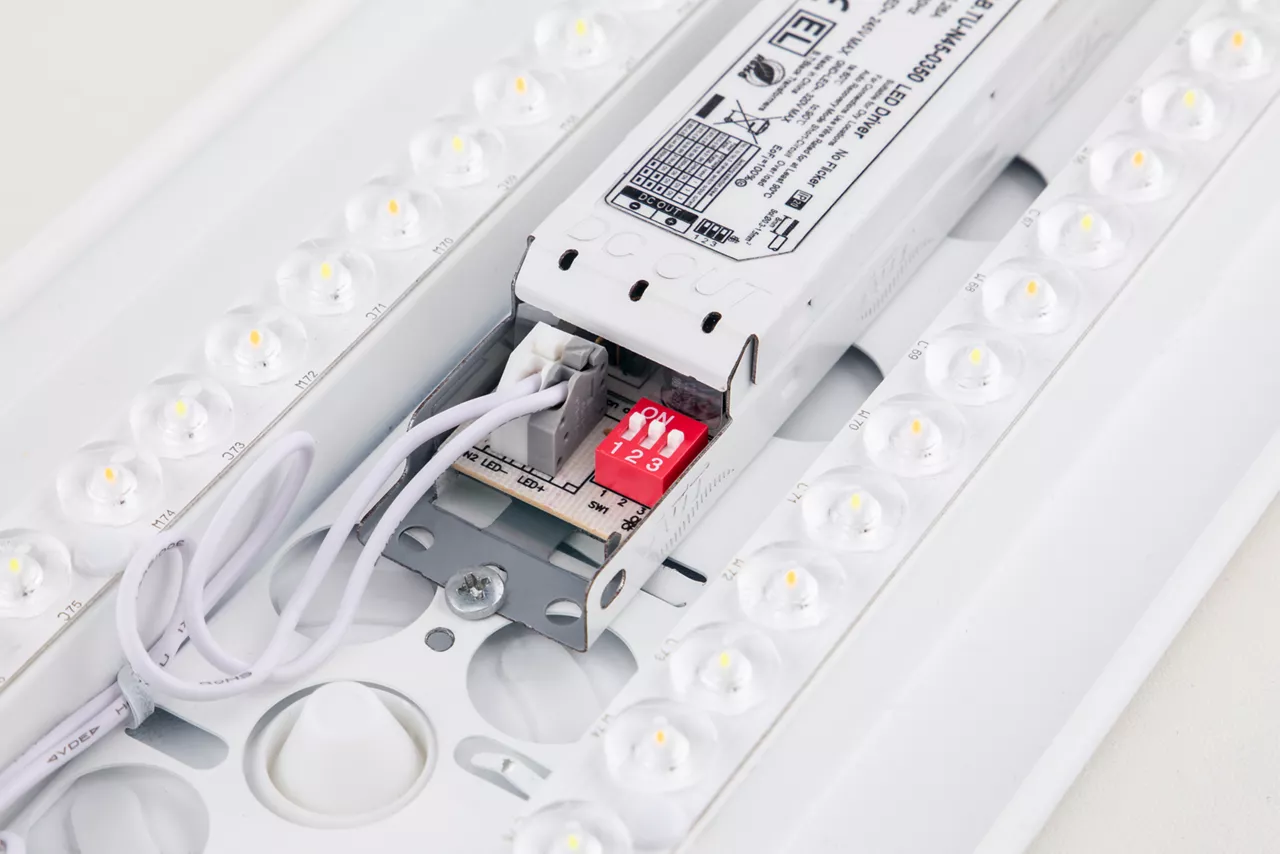

  • Four Wattage output selectable allowing you to choose between 30W, 32W, 34W and 36W
  • CCT colour 4000K only
  • DALI dimmable and Microwave on/off options
  • Self-test emergency as standard

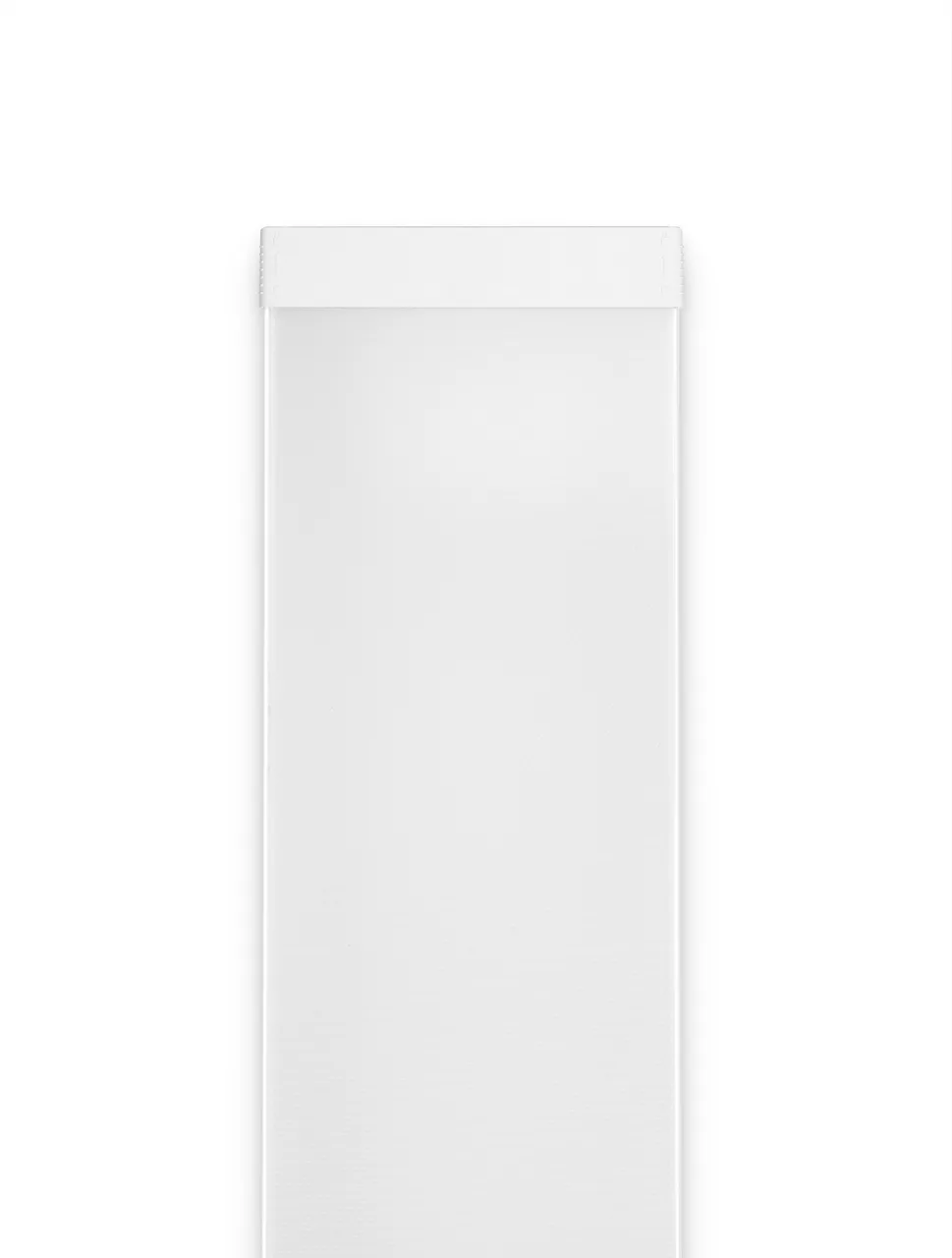

  • Anti- tamper end caps
  • Up to 132 LpcW
  • Flicker free driver
Country of Origin: Please Contact Customer Service

Product Information

  • Electrical

    Dimmable : No

    Luminaire Circuit Wattage : 32/34/36/38

    Voltage Rating : 220-240V~

  • Emergency data

    LOR % in Emergency Mode : 8 to 7%

  • General Information

    IP Rating : IP20

    Method of fix : Screw fix or suspend

    Mounting : Surface Mount

    Overall Dimensions : 1500 x 164 x 48mm

    Product Type : Emergency

    Warranty : 5 Year Warranty (5 years on batteries)

  • Performance Data

    Actual Lumen Output : 4550/4870/5200/5260

    Battery Type : LiFePO4

    Beam Angle ° : 112

    CRI: Ra : 87

    Correlated Color Temperature : 4000K

    Lumens Per Circuit Watt : 152/152/153/156

  • Thermals

    Operating Temperature Range °C : 0-60
