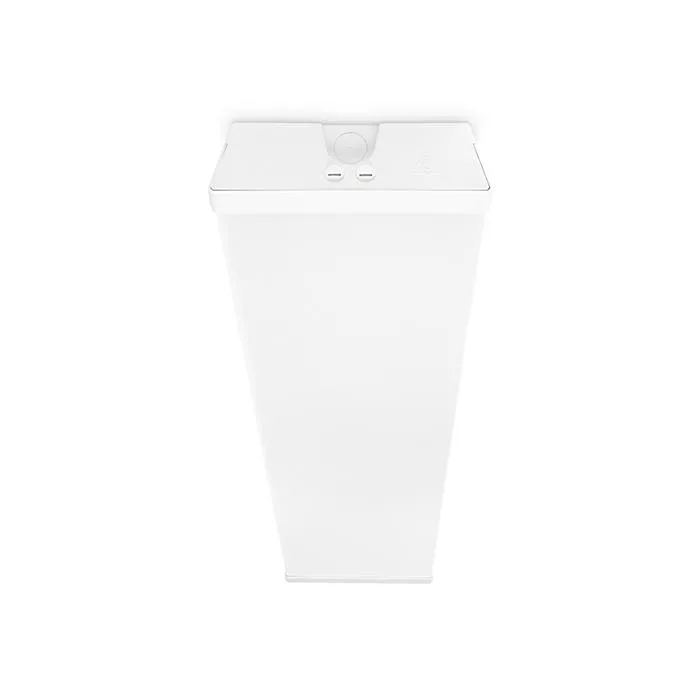

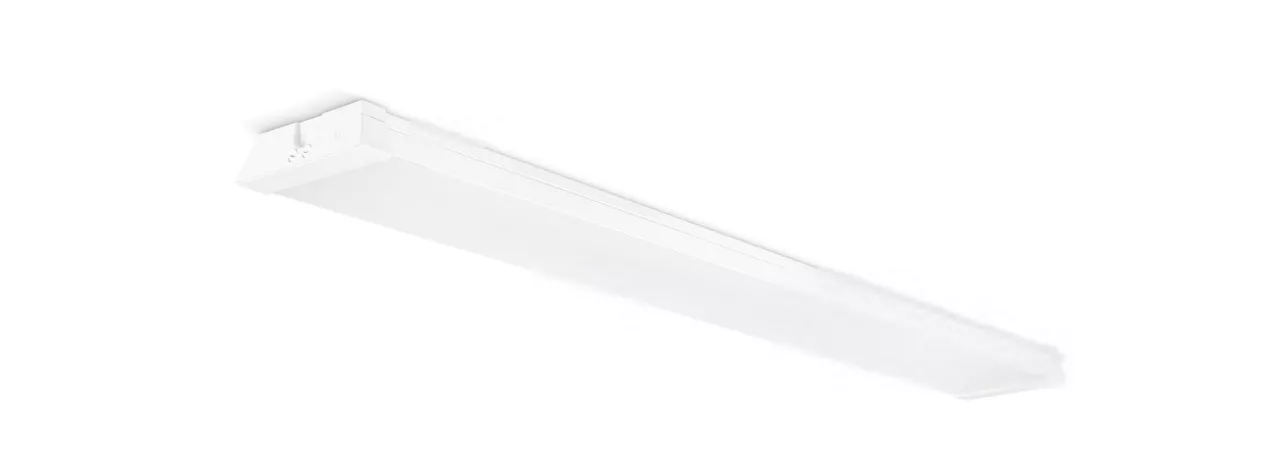

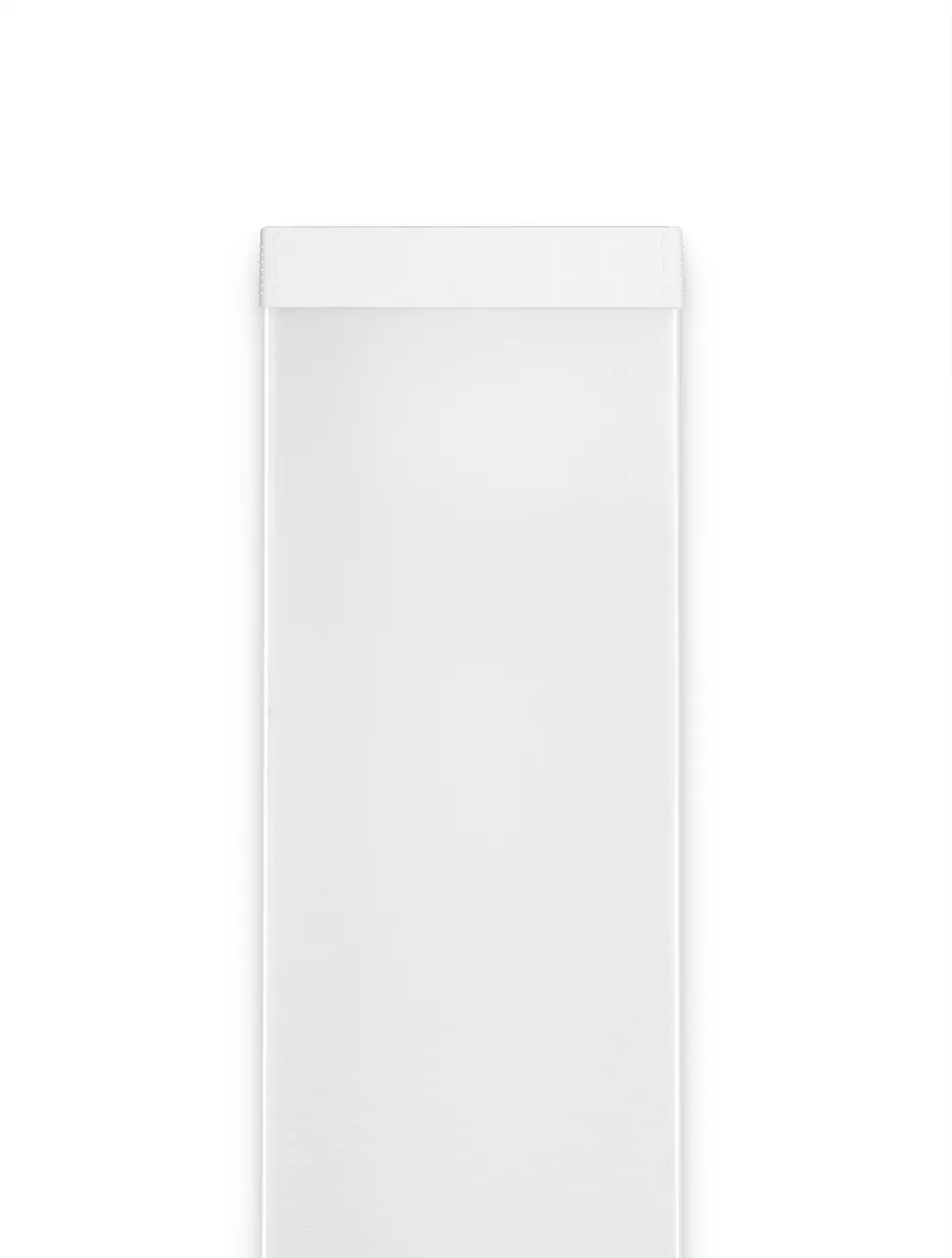

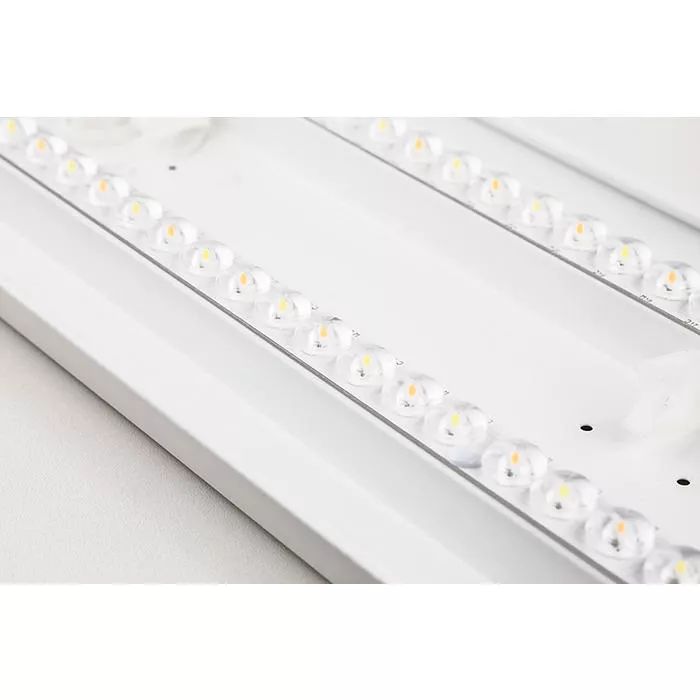

Commercial Linear UGR19 5FT 32W/34W/36W/38W 3CCT Microwave On/Off Self-test Emergency

JC030048

  • UGR <19 as standard, designed to comply with BS EN 12464-1 lighting of workspace

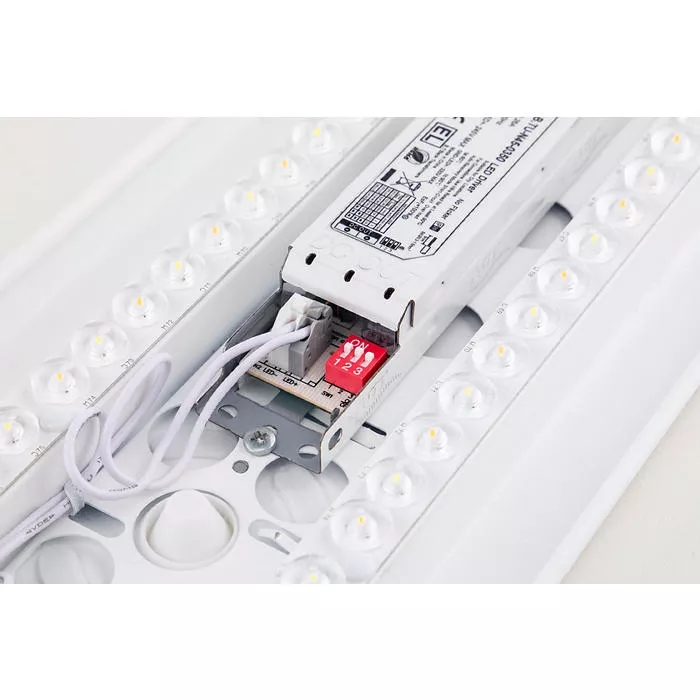

  • Four Wattage output selectable allowing you to choose between 22W, 25W, 28W and 31W

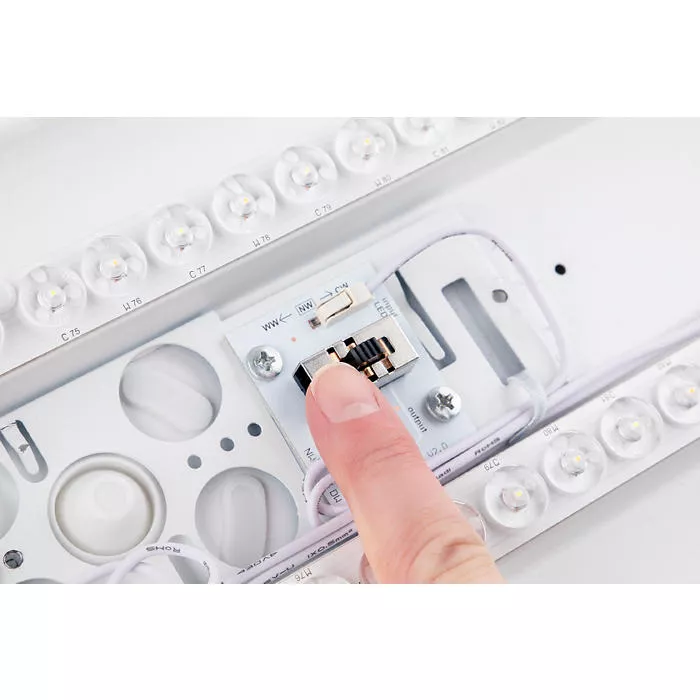

  • CCT colour selectable allowing you to choose between 3000K, 4000K and 5700K
  • DALI dimmable and Microwave on/off options
  • Self-test emergency as standard
  • Anti- tamper end caps
  • Up to 132 LpcW
  • Flicker free driver
Country of Origin: Please Contact Customer Service

Product Information

  • Electrical

    Class : I

    Dimmable : No

    Luminaire Circuit Wattage : 32/34/36/38

    Voltage Rating : 220-240V~

  • Emergency data

    LOR % in Emergency Mode : 9 to 8%

  • General Information

    IP Rating : IP20

    Method of fix : Screw fix or suspend

    Mounting : Surface Mount

    Overall Dimensions : 1500 x 164 x 48mm

    Warranty : 5 Year Warranty (5 years on batteries)

  • Performance Data

    Actual Lumen Output : 4030/4350/4690/4980

    Battery Type : LiFePO4

    Beam Angle ° : 90

    CRI: Ra : 82/87/84

    Correlated Color Temperature : 3000/4000/5700K

    Lumens Per Circuit Watt : 134/136/138/138

  • Thermals

    Operating Temperature Range °C : 0-60
