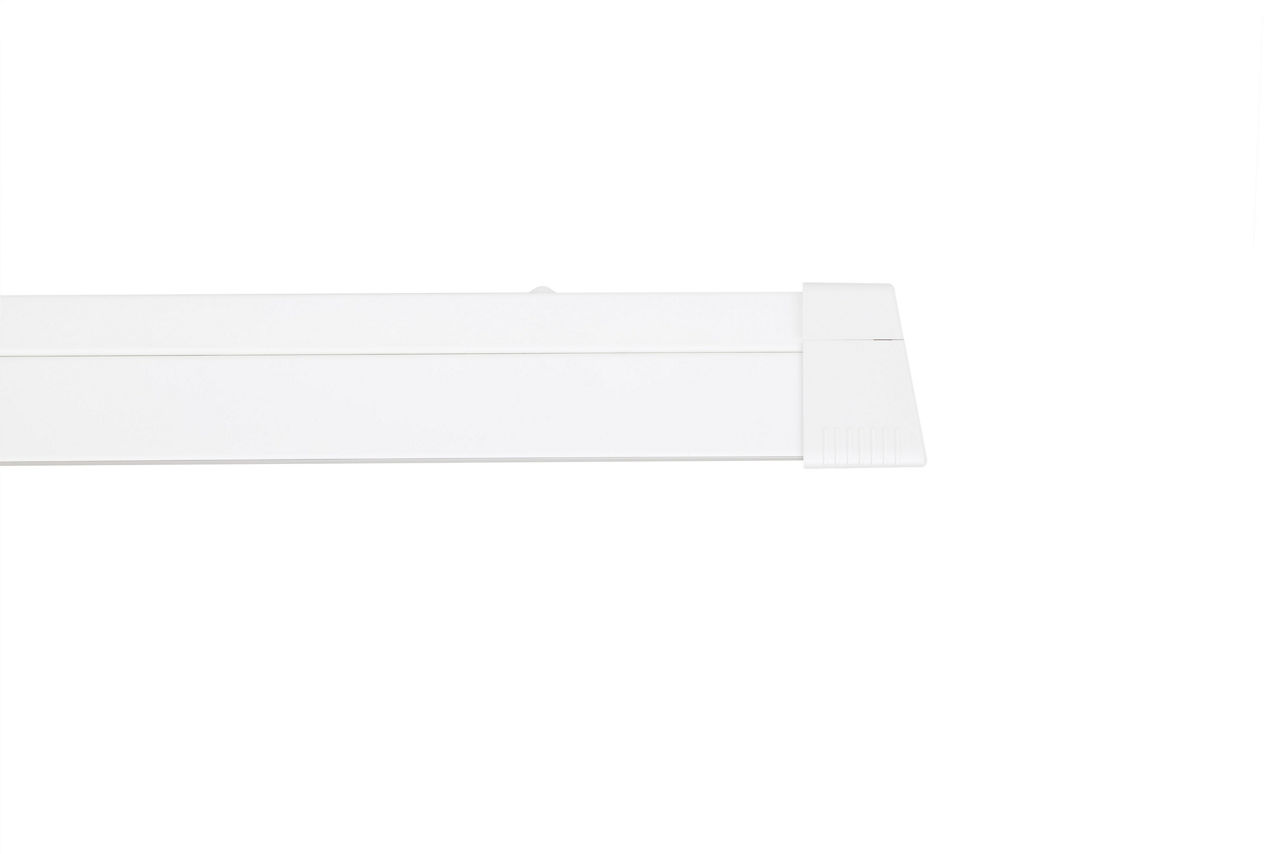

Commercial Linear UGR19 5FT 30W/32W/34W/36W 3CCT
JC030041
- UGR <19 as standard, designed to comply with BS EN 12464-1 lighting of workspace
- Four Wattage output selectable allowing you to choose between 30W, 32W, 34W and 36W
- CCT colour selectable allowing you to choose between 3000K, 4000K and 5700K
- DALI dimmable and Microwave on/off options
- Self-test emergency options available
- Anti- tamper end caps
- Up to 132 LpcW
- Flicker free driver
Country of Origin: Please Contact Customer Service
Product Information
Electrical
Class : I
Dimmable : No
Luminaire Circuit Wattage : 30W / 32W / 34W / 36W
Voltage Rating : 220-240V~
General Information
Color Finish : White
IP Rating : IP20
Method of fix : Screw fix or suspend
Mounting : Surface Mount
Overall Dimensions : 1500 x 164 x 48mm
Product Group : Surface Linear
Product Range : Commercial Linear
Warranty : 5 Year Warranty
Performance Data
Actual Lumen Output : 4030 / 4350 / 4690 / 4980
Beam Angle ° : 90
CRI: Ra : 82/87/84
Correlated Color Temperature : 3000 / 4000 / 5700K
Lumens Per Circuit Watt : 134 / 136 / 138 / 138
Thermals
Operating Temperature Range °C : 0-60
