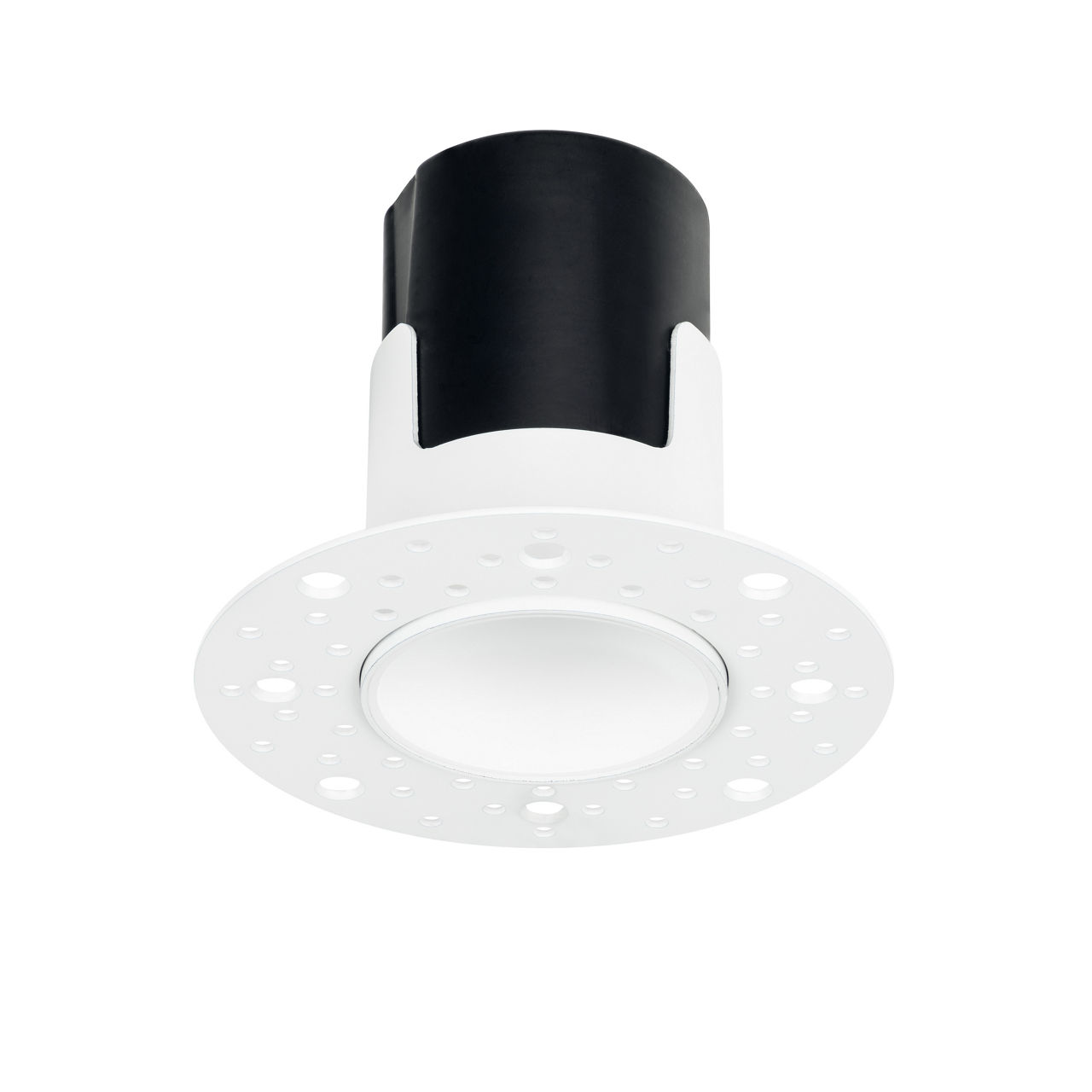

Fireguard GU10 Plaster-in fire-rated downlight in white
JC010036/WH
- Countersunk screw points for ultra secure mounting
- Unique AC cable holder
- Shallow baffle lip designed to reduce the required thickness of plaster
- Double hinged terminal block holder
- For use with GU10 LED lamps
- Non-plaster-in versions available
- Tested for use in Solid and I-joist ceilings. See jcc.co.uk for latest test reports**
Country of Origin: Please Contact Customer Service
Product Information
Electrical
Dimmable : Dependant on lamp
Luminaire Circuit Wattage : 7W LED max
Voltage Rating : 220-240
General Information
IP Rating : IP65 with gasket
Mounting : Recessed
Overall Dimensions : 121Ø x 101.7mm
Product Aperture Size : 68-70mm
Warranty : 5 Year(terms and conditions apply)
Thermals
Insulation Coverage : Can be loosely covered with mineral wool insulsation
Operating Temperature Range °C : 0-26
