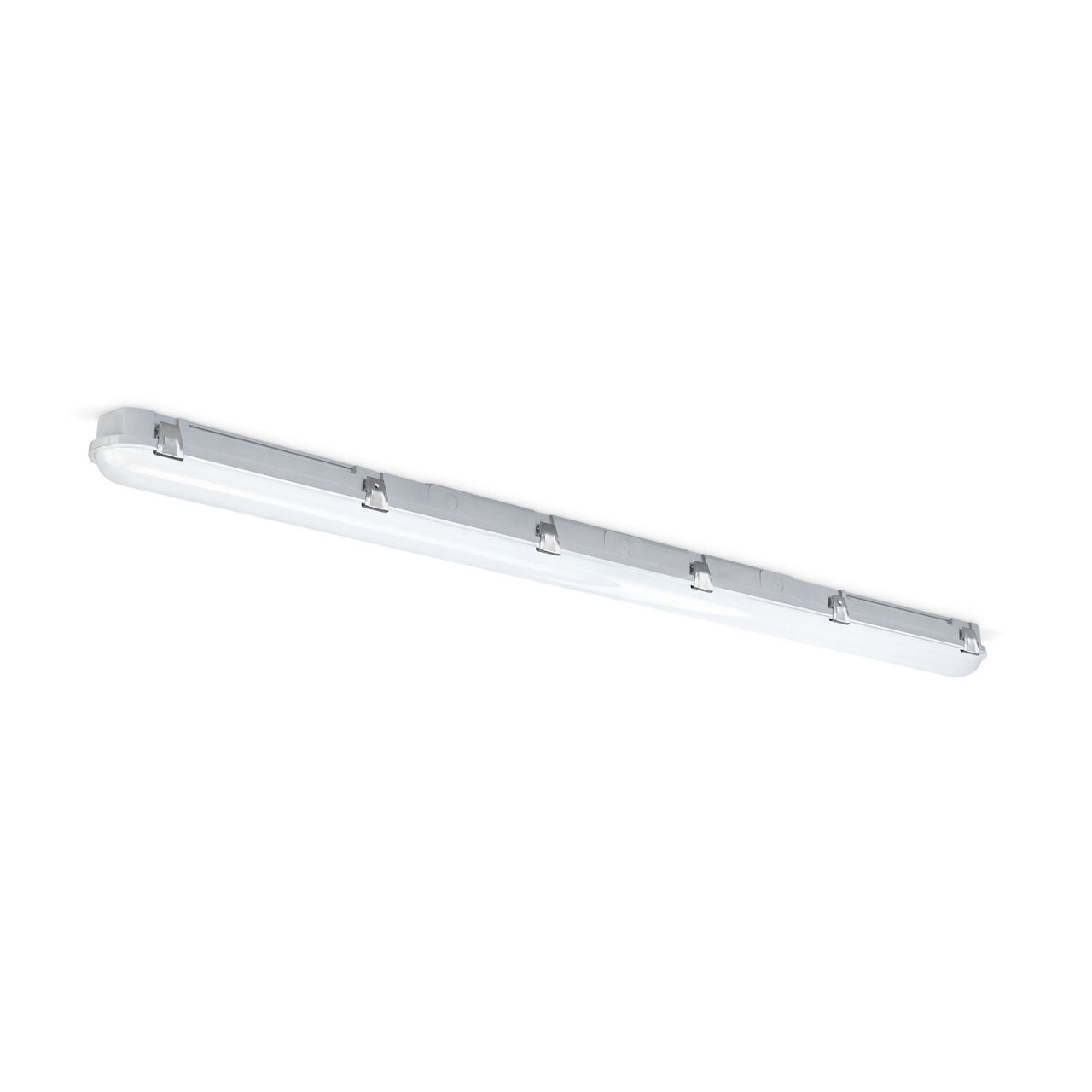

ToughLED™ Pro 5ft Single 33W Self-Test Emergency WOP
JC180042ST
- 3900 Lumens
- 118 LpcW
- IK10 impact rated and IP66 protection against high pressure water jets and is dust tight
- High efficiency up to 145 LpcW, IP66, IK10

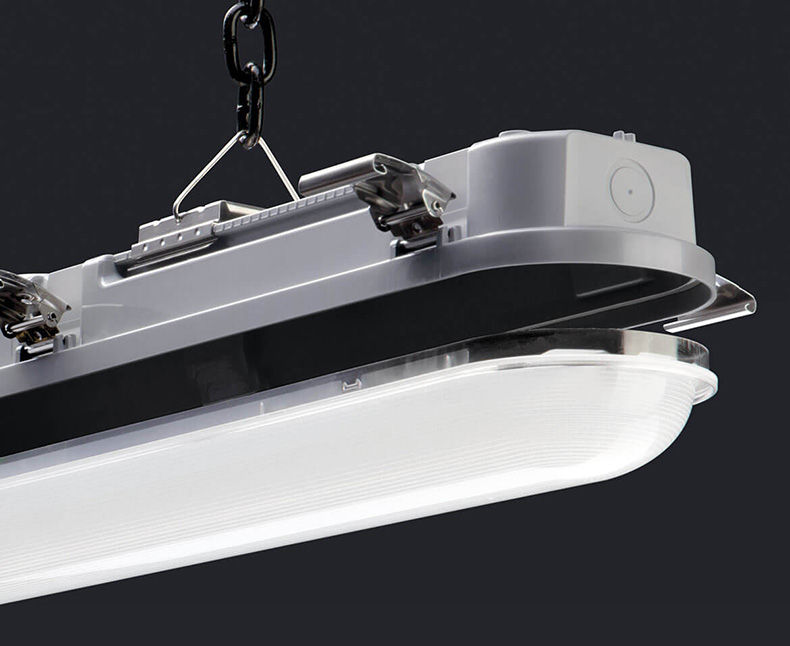

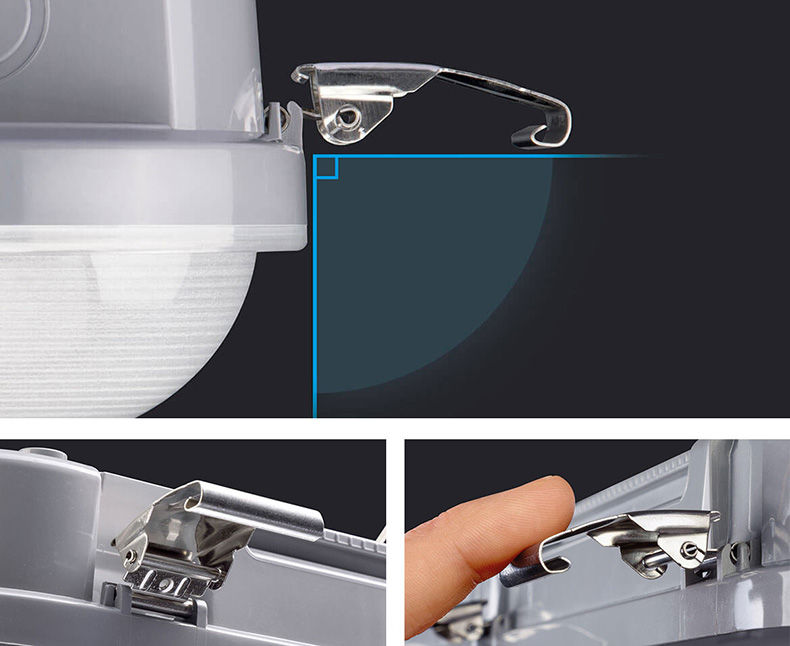

- 90º Lock-in-place side clip design, keeps clips clear during installation

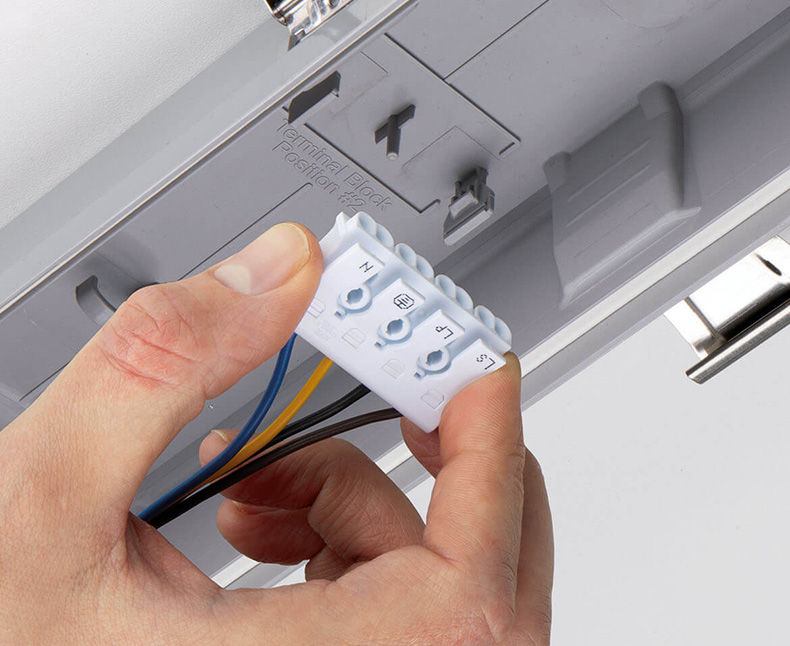

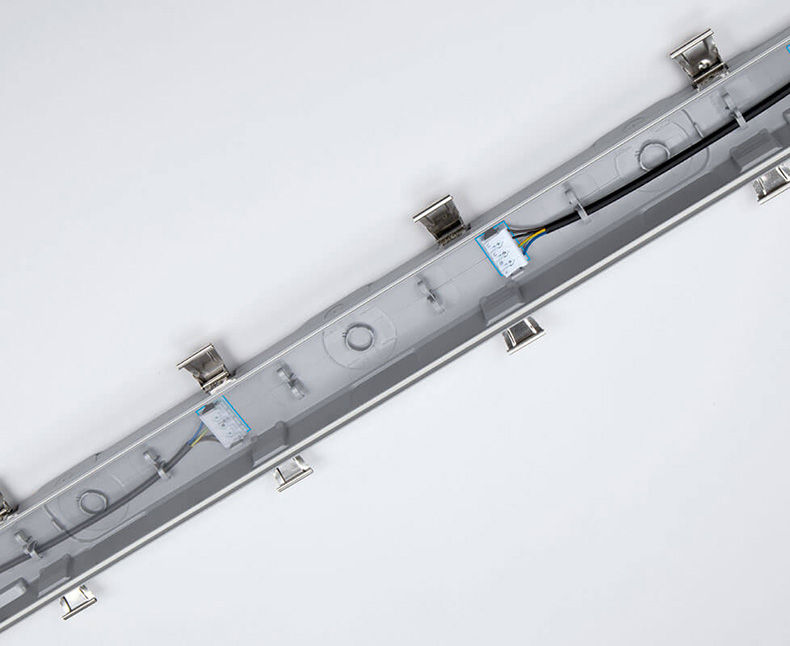

- Detachable 4 pin terminal block with multiple positions adjacent to all cable entry points

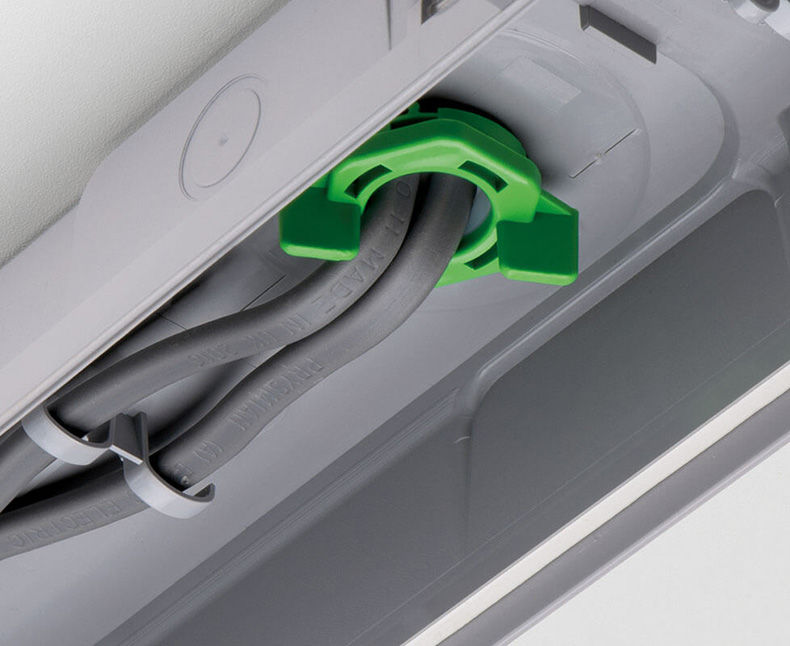

- Inbuilt loop-in/loop-out cable restraints to ensure that cables do not clash when closing the fixture

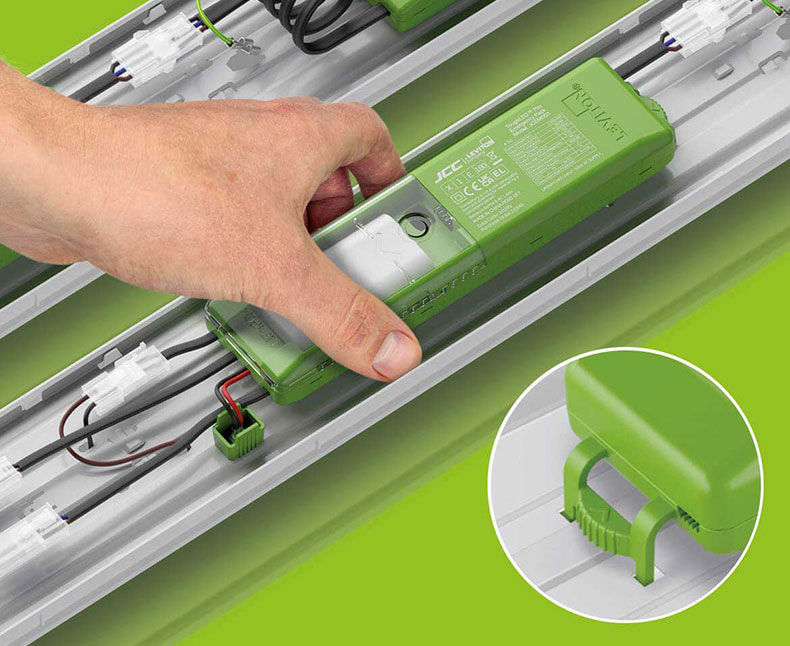

- Plug & play emergency & microwave sensor modules with optional remote control

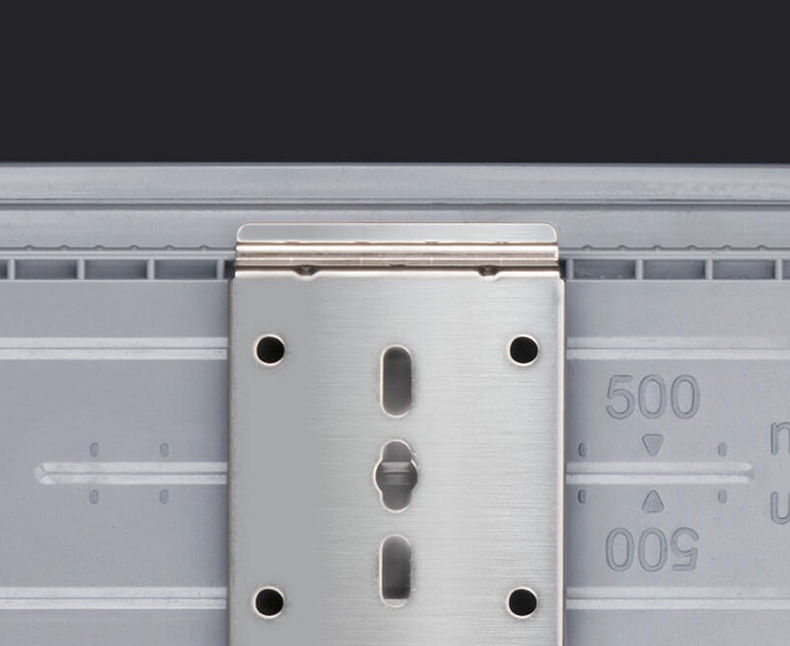

- Ultra-wide surface mount bracket rail to enable flexibility to locate joists

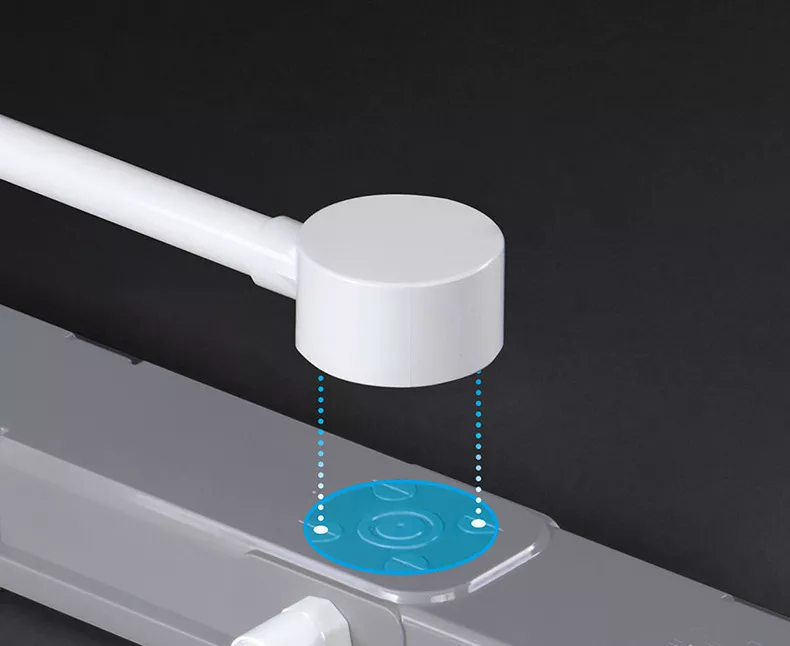

- Wide body for retrofitting BESA conduit box mounting, with rear, side and end conduit entry points

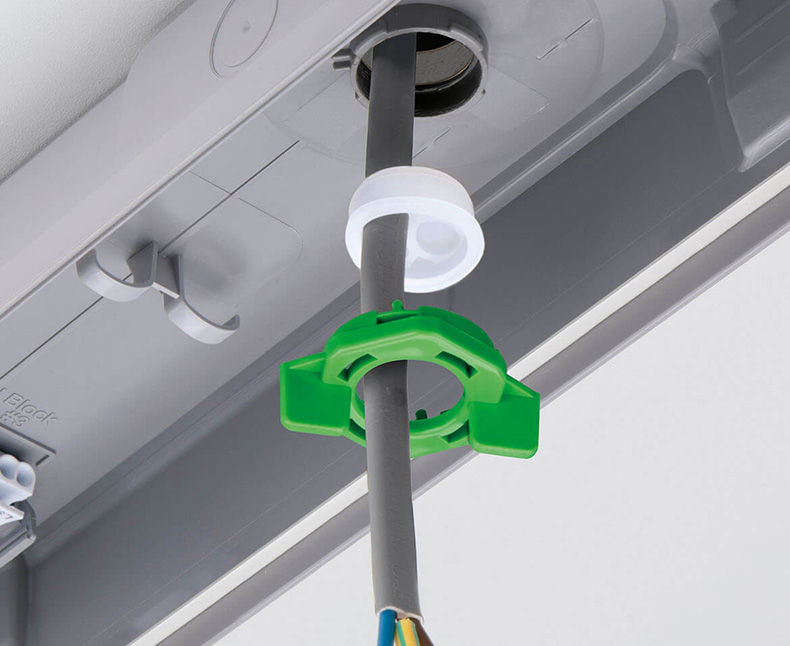

- Unique rear IP66 gasket, sealing cable entry from within the fixture for surface mounting applications
- 4ft, 5ft, 6ft single and twin light outputs in both opal and prismatic diffuser options
- Microwave step dimmable, DALI and 1-10V dimmable options available
- 5-year extended warranty on fixture and batteries, which uses LifePO4 batteries for improved performance and life
Country of Origin: Please Contact Customer Service
Product Information
Dimensional Data
Overall Dimensions : 1570 x 96 x 81.3
Product Details
Color Finish : Grey
Product Range : ToughLED™ Pro
Warranty : 5 Year Warranty (5 years on batteries)
Product Specifications
Actual Lumen Output : 3900
Beam Angle : 120
CRI : 80
Class : I
Correlated Color Temperature : 4000K
Dimmable : No
IP Rating : IP66
Lumens Per Circuit Watt : 118
Luminaire Circuit Wattage : 33
Operating Temperature range °C : 0 to +50
