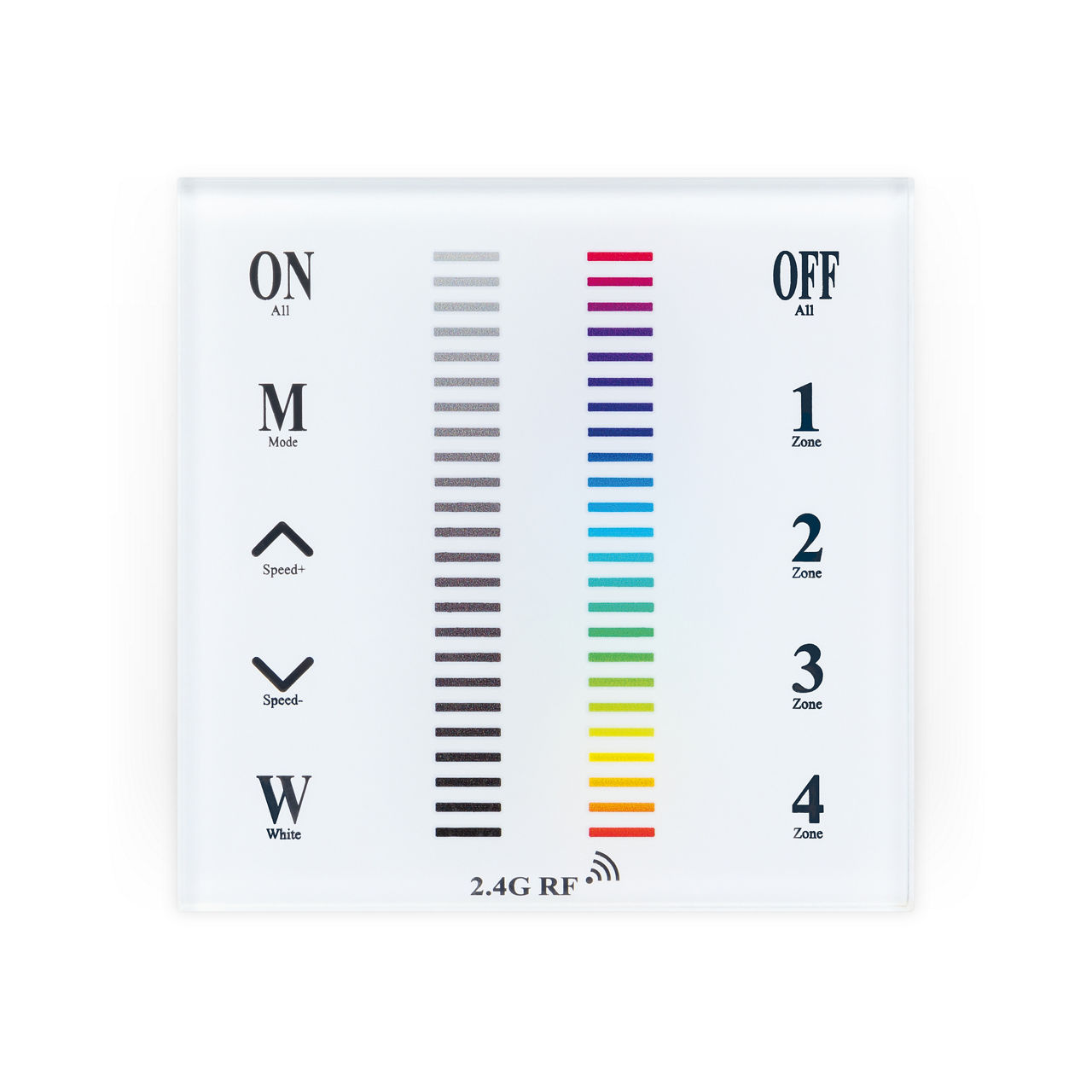

RGBW 2.4G RF Wall Mounted Remote Control
JC121451
- For use with JCC RGBW strip
- Simple, fast installation
- Easy set up and pairing with controllers
- 2.4GHz RF, does not require line of site to operate
- Battery operated; no wiring required
- Up to 30m transmission distance
- Control up to 4 different zones
- Each zone can have matching scenes or a separate scene
- Each zone can run up to 10 controllers
- Each zone can control up to 100m 17.6W RGBW or 250m 7.2W RGBW *based on 180W driver-must not exceed the maximum Wattage of the driver
- Up to 40 controllers in total
- Up to 400m 17.6W RGBW or 1000m 7.2W RGBW *based on 4 zones and 40 controllers- with 180W driver
- Built in memory, saves set scenes
- Smooth touch control to adjust colour and brightness
- 12 dynamic pre-set modes, including 3 colour change, 7 colour change, strobe, and fade options
Product Information
Dimensional Data
Overall Dimensions : 86 x 86 x 20
Product Details
Additional Information : Please note: All LED tape can suffer voltage drop over distance, depending on configuration of LED tape, DC cable and driver. Any run over 10m may result in up to 2% loss of output per meter thereafter. Consider adding a new power supply every 10m to ensure you achieve the maximum performance of your tape. All the standard length LED tape products can be cut every 50mm if required. It is the installer’s responsibilty to ensure if the IP65 tape is cut, they maintain the IP rating of the tape by using heatshrink, silicone end caps with suitable silicone sealant where applicable.
Color Finish : White
Product Range : RGBW Controllers
Warranty : 2 year standard warranty
Product Specifications
IP Rating : IP20
