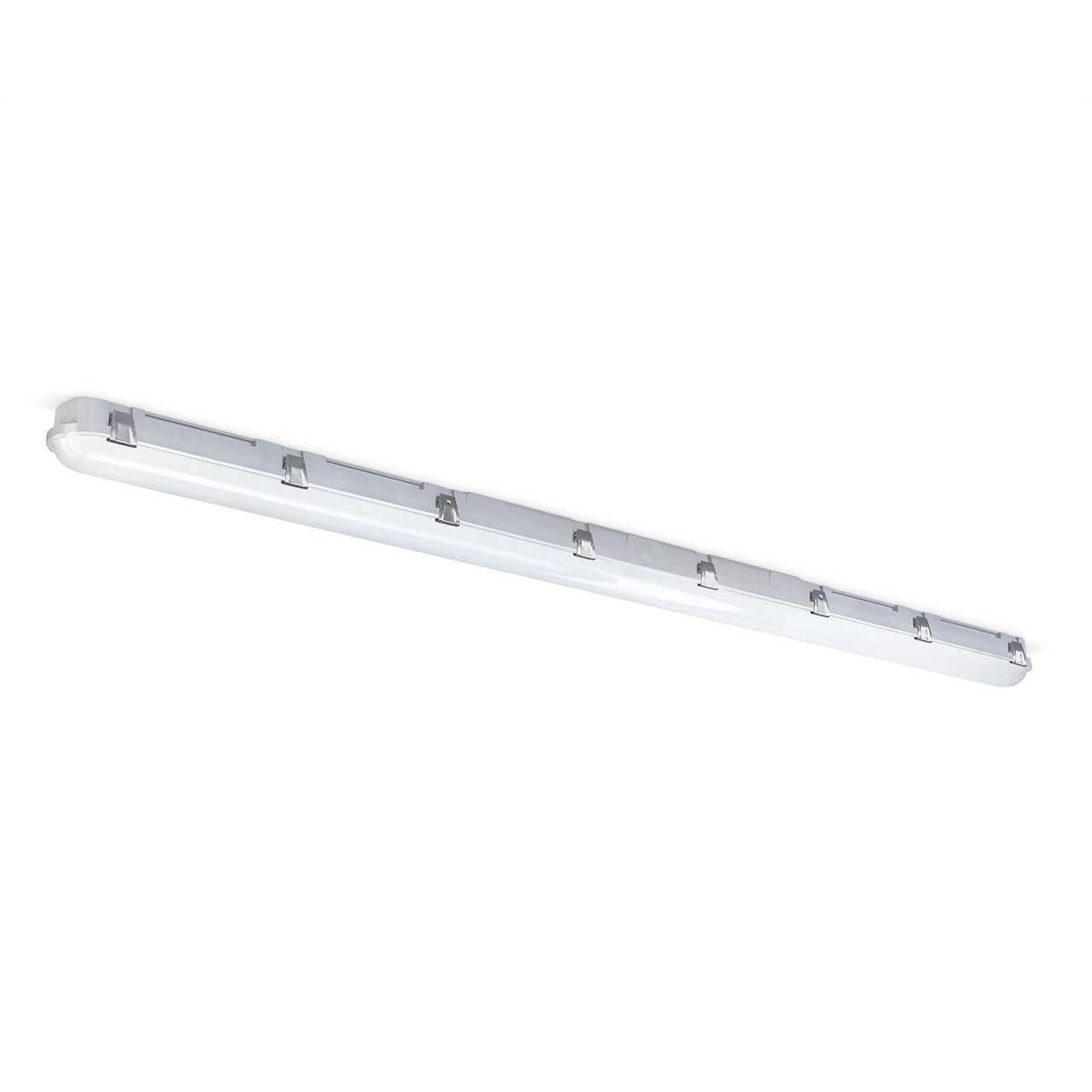

ToughLED™ Pro 6ft Single 43W MW On/Off Emergency FR

JC180068

  • 5300 Lumens
  • 123 LpcW
  • IK10 impact rated and IP66 protection against high pressure water jets and is dust tight
  • 4000K colour temperature

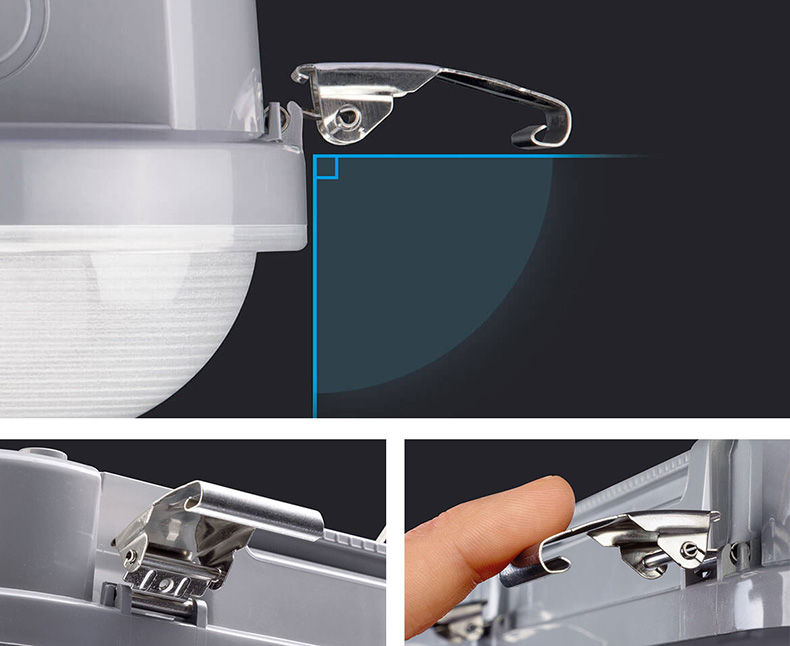

  • 90º Lock-in-place side clip design, keeps clips clear during installation

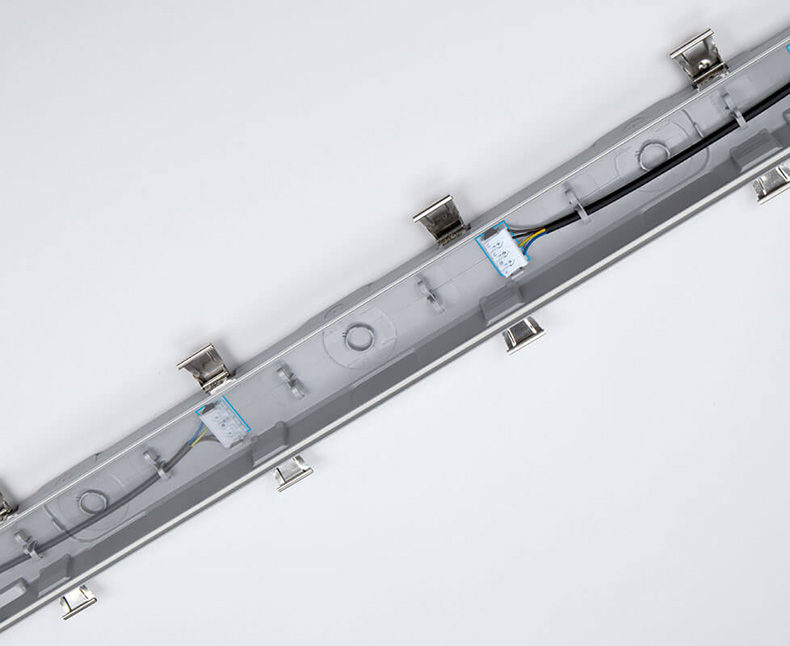

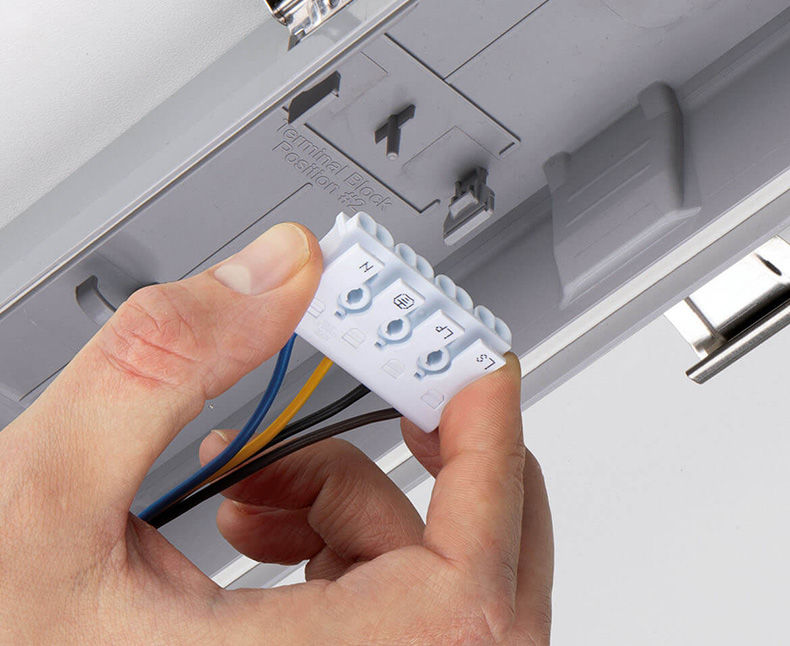

  • Detachable 4 pin terminal block with multiple positions adjacent to all cable entry points

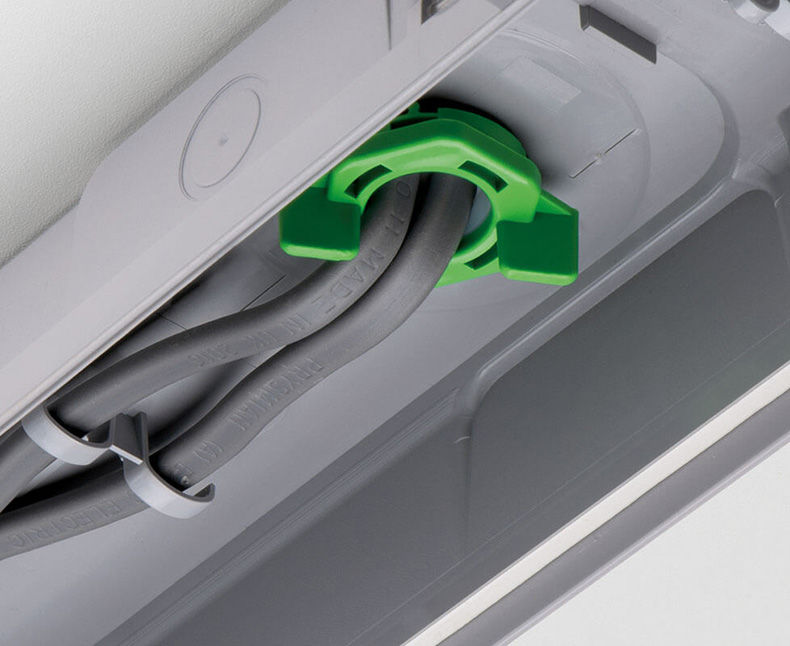

  • Inbuilt loop-in/loop-out cable restraints ensure cables don't clash when closing the fixture

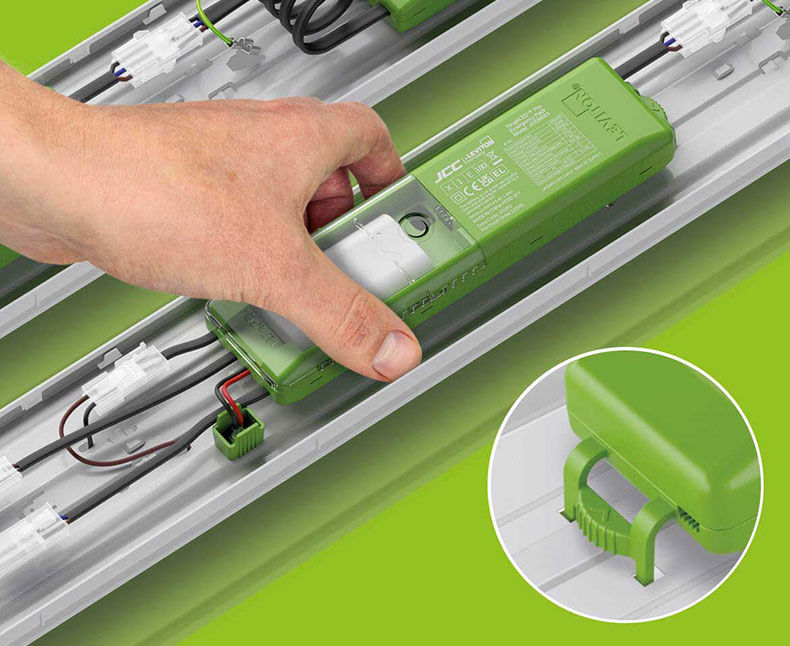

  • Plug & play emergency & microwave sensor modules with optional remote control

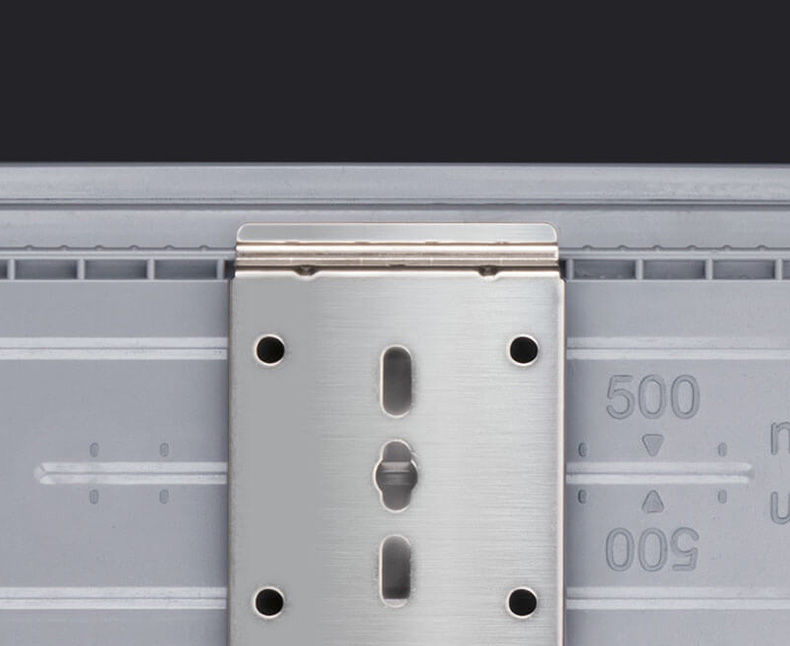

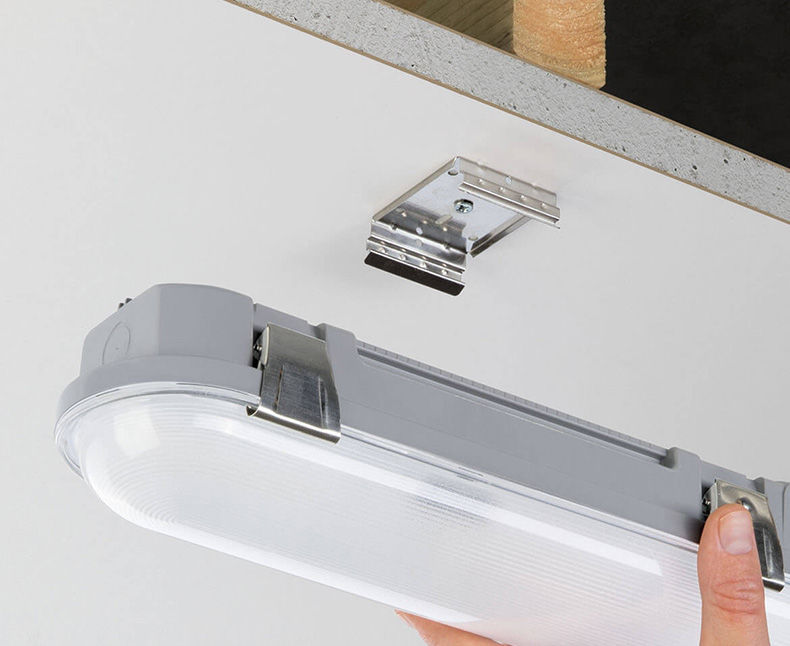

  • Ultra-wide surface mount bracket rail to enable flexibility to locate joists

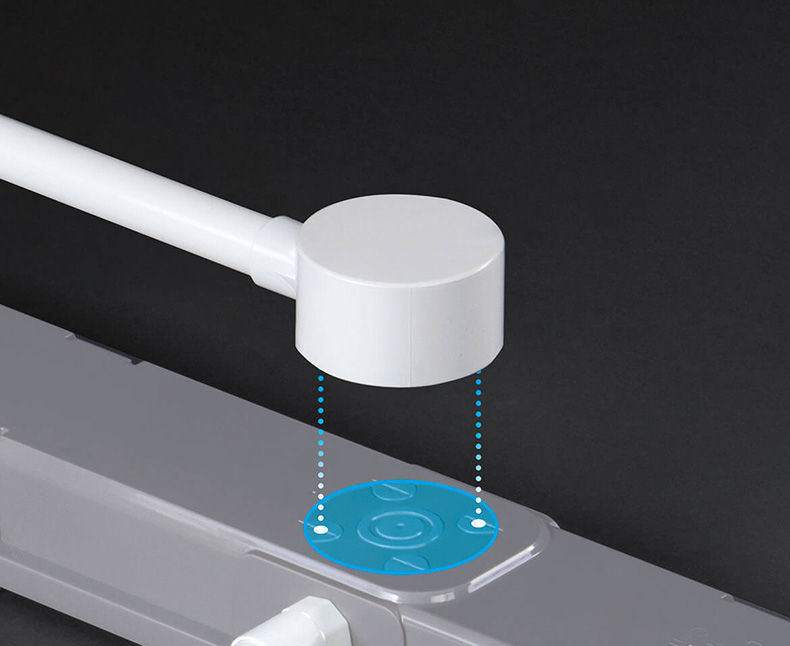

  • Wide body for retrofitting BESA box mounting, with rear, side & end conduit entry points

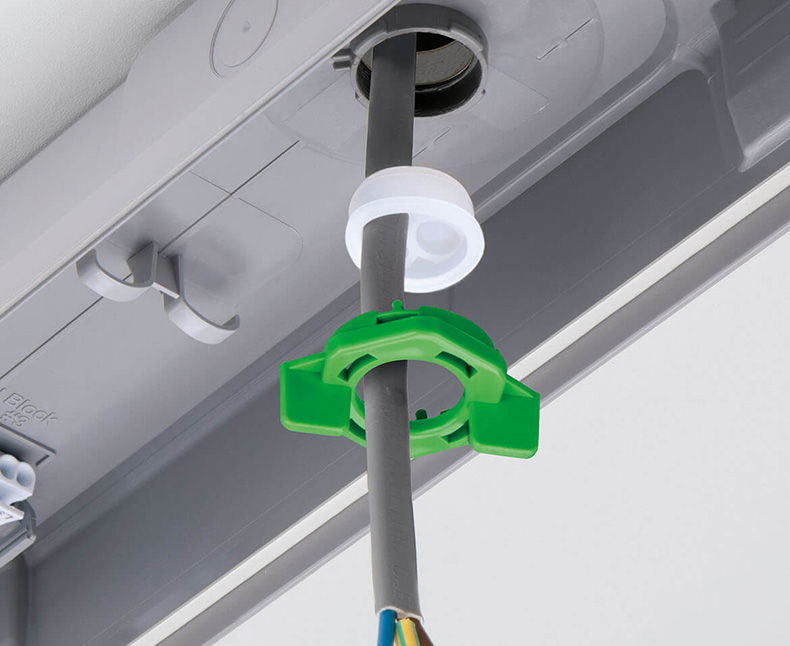

  • Unique IP66 gasket, sealing cable entry from within the fixture when surface mounting
  • Microwave step dimmable, DALI and 1-10V dimmable options available
  • 5-year extended warranty on fixture and batteries
Country of Origin: Please Contact Customer Service

Product Information

  • Electrical

    Class : I

    Dimmable : No

    Luminaire Circuit Wattage : 43

    Voltage Rating : 220-240

  • Emergency data

    LOR % in Emergency Mode : 6

  • General Information

    IP Rating : IP66

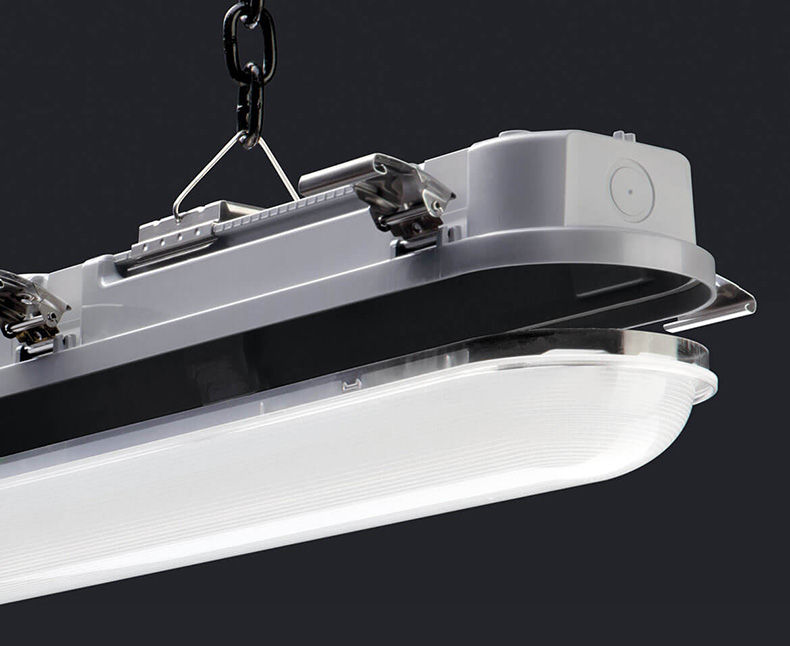

    Mounting : Surface or Suspended

    Overall Dimensions : 1870 x 96 x 81.3

    Trade Name : ToughLED Pro

    Warranty : 5 Year Warranty (5 years on batteries)

  • Performance Data

    Actual Lumen Output : 5300

    Battery Type : LifePO4

    Beam Angle ° : 120

    CRI: Ra : 80

    Correlated Color Temperature : 4000K

    Lumens Per Circuit Watt : 123

  • Thermals

    Operating Temperature Range °C : 0 to +50
